        QCX2-18-240 | Direct Online Starter | 4.0-6.0Amp 240V Coil
        $54.95 $49.95 ex. GST
        Description

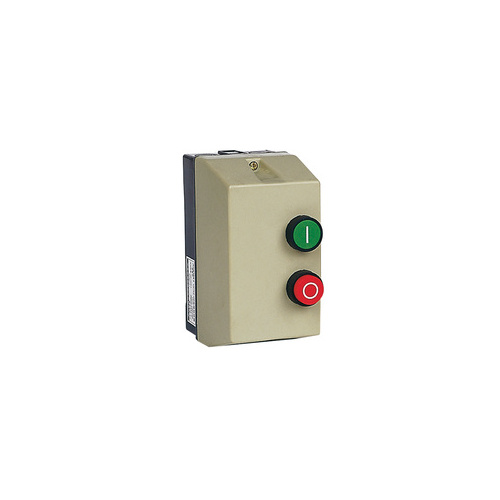

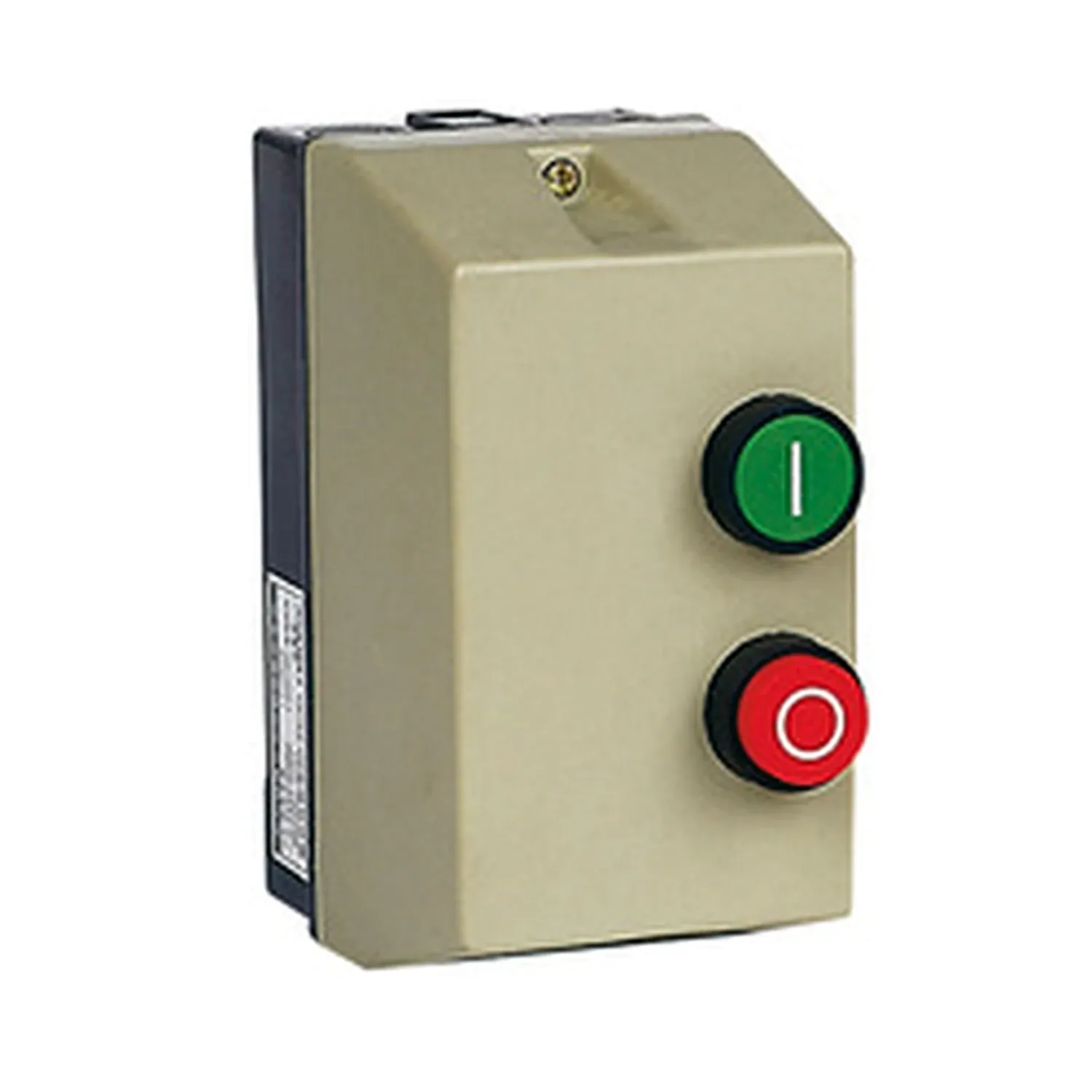

        QCX2-18-240 | Direct Online Starter | 4.0-6.0Amp 240V Coil

        QCX2 series magnetic starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, low power consumption, high efficiency, safe and reliable performance. It complies to IEC947-4-1.

        Features:

        • 18 Amps
        • 240V
        • DOL magnetic starter
        • Complete with TOL and 240V Coil
        • Thermal Relay 4 to 6A
        • Maximum Power Duty AC3: 9kW at 415V 50/60Hz

        (QCX2-18-240)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand
        SKU QCX2-18-240
        Barcode # 9321592172175
        Shipping Weight 0.8760kg
        Shipping Width 0.170m
        Shipping Height 0.090m
        Shipping Length 0.140m
        Shipping Cubic 0.002142000m3
        TYPE VALUE
        Type Circuit Protection
        Rated Current (A) 18
        Kilowatt Rating (kW) AC3 9kW at 415V 50/60Hz
