Solar Lighting Designs | Solar LED Batten Light 30W 600mm PIR 4200lm | IK10 Moulded Polycarbonate

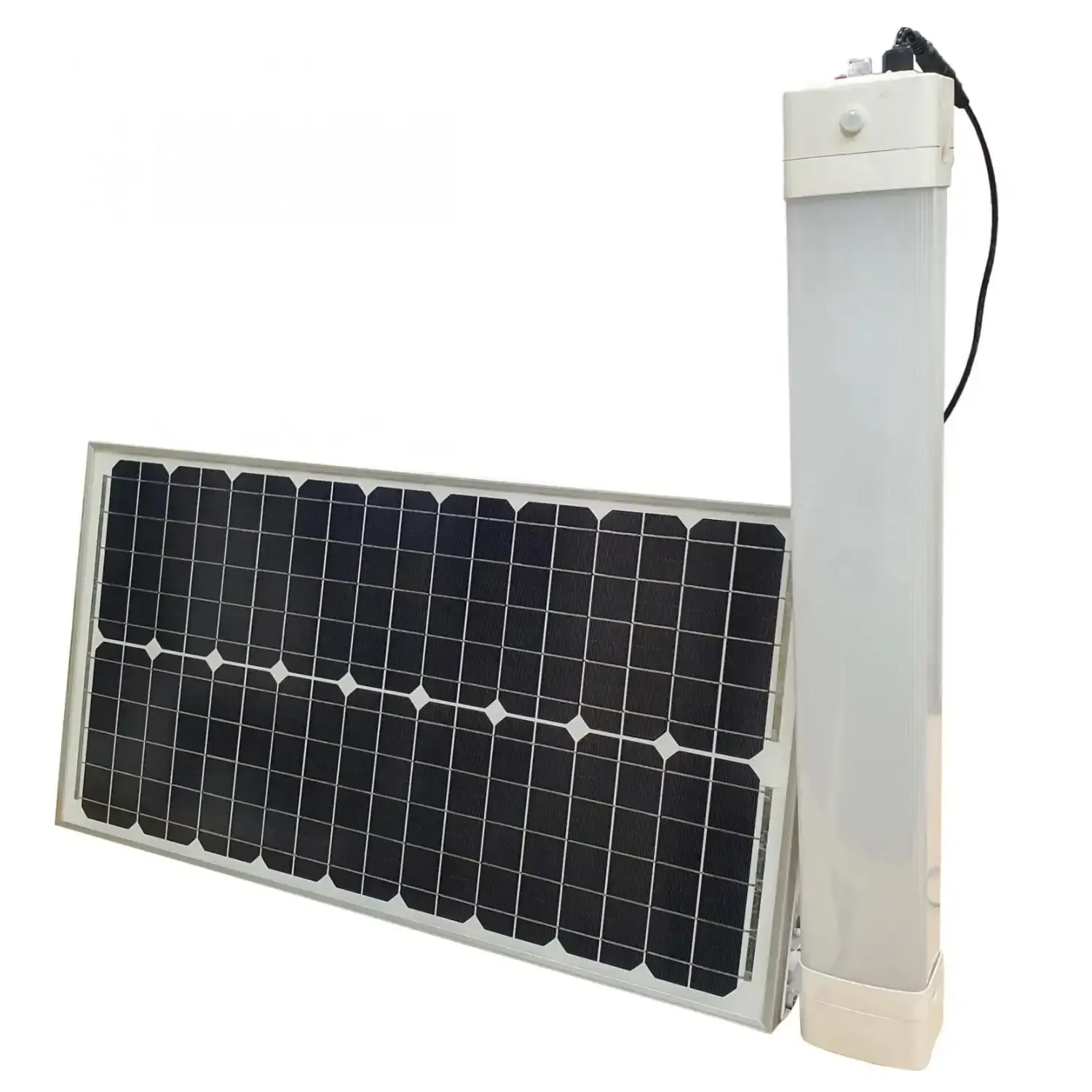

The Solar Lighting Designs SOLBATT001 is a 30W solar powered LED batten light measuring 600mm, rated 4200 lumens at 4200K. The SOLBATT001 runs from a 30W tempered glass solar panel and a 126Wh lithium-ion battery, with more than 5 nights of autonomy depending on settings. A frosted IK10 lens spreads a 120 degree beam from 120 Samsung 2835 LEDs, and output is dimmable from 100% down to 8%.
Off-grid lighting usually means accepting a compromise on both counts. The output is a token gesture rather than working light, and the control is whatever the fitting decides on its own. A shed, a container, or a carport needs neither. It needs light a person can work under and a switch on the wall. The SOLBATT001 delivers 4200 lumens across a 120 degree beam, and the supplied wired wall switch on a 10 metre cable operates it exactly like a mains fitting.
The wireless grouping is where the specification separates from the category. Multiple SOLBATT001 fittings link together and run independently or together from one remote control, so a three-bay shed becomes a lighting scheme rather than three isolated lights. Dimming from 100% to 8% stretches the battery across the nights that matter. Installation stays plug and play: waterproof MC4 connectors, adjustable panel brackets, and a fixed or suspended mounting kit are all supplied.
Features
- 4200 lumens at 30W — 120 Samsung 2835 LEDs at 4200K neutral white give the SOLBATT001 working light rather than token off-grid output.
- 120 degree beam angle — a frosted lens spreads the output across the space instead of concentrating it in a strip below the fitting.
- Dimmable 100% to 8% — output is adjusted on the remote, trading brightness for runtime on the nights it matters.
- Built-in PIR sensor — movement activation is on board, with an external 2.4GHz transmitter supported as an alternative trigger.
- Wireless grouping — multiple fittings connect together and operate independently or as a group from a single remote control.
- Wired wall switch included — a 10 metre cable puts a conventional switch on the wall, alongside the programmable remote and its wall-mounted holder.
- 30W tempered glass solar panel — supplied with adjustable brackets, a 2.7 metre MC4 cable, and waterproof MC4 connectors, with extension cables made to suit.
- 126Wh lithium-ion battery — a 12.6V 10Ah inbuilt cell carries more than 5 nights of autonomy and recharges in around 6 hours.
- IK10 lens and lamp body — both the solar lens and the moulded polycarbonate body are rated to the highest impact class in the IK scale.
- Fixed or suspended installation — the SOLBATT001 mounts to a surface or hangs on the supplied suspension hardware, with both kits in the box.
- No published IP rating — Solar Lighting Designs does not state an ingress rating for this fitting, so confirm suitability before specifying exposed or washdown positions.
- Two-year warranty — covers faulty workmanship or component failure not influenced by external means, running from the invoice date.
Where to use
- Sheds and workshops — the SOLBATT001 gives a detached shed genuine working light with no submain run from the house switchboard.
- Shipping containers and site stores — the panel sits on the container roof, the batten hangs inside, and the wall switch works at the door.
- Carports and garages — 4200 lumens covers a full bay, and grouping links multiple bays back to one remote.
- Bus shelters and transport stops — PIR activation keeps a shelter dark until someone arrives, then brings it to full output.
- Street kiosks and market stalls — the SOLBATT001 lights a servery or counter on a structure with no permanent connection.
- Temporary shelters and site accommodation — plug and play installation suits structures that move on, with the kit reused at the next site.
- Camping and remote locations — properties, outstations, and remote sheds run entirely off the 30W panel.
Solar Lighting Designs publishes no IP rating for the SOLBATT001, so confirm suitability with SLD before specifying it for hosed or fully exposed positions. The fitting is a 600mm batten rated 4200 lumens, sized for a shed, bay, or shelter rather than a yard, car park, or perimeter. Autonomy is setting dependent, so continuous full output shortens the run well below the rated 5 nights, and the panel needs daily sun on the roof it is fixed to.
