Solar Lighting Designs | Vandal Resistant Solar Batten Light 4/6W 800-1200lm | IK10 Sealed Polycarbonate

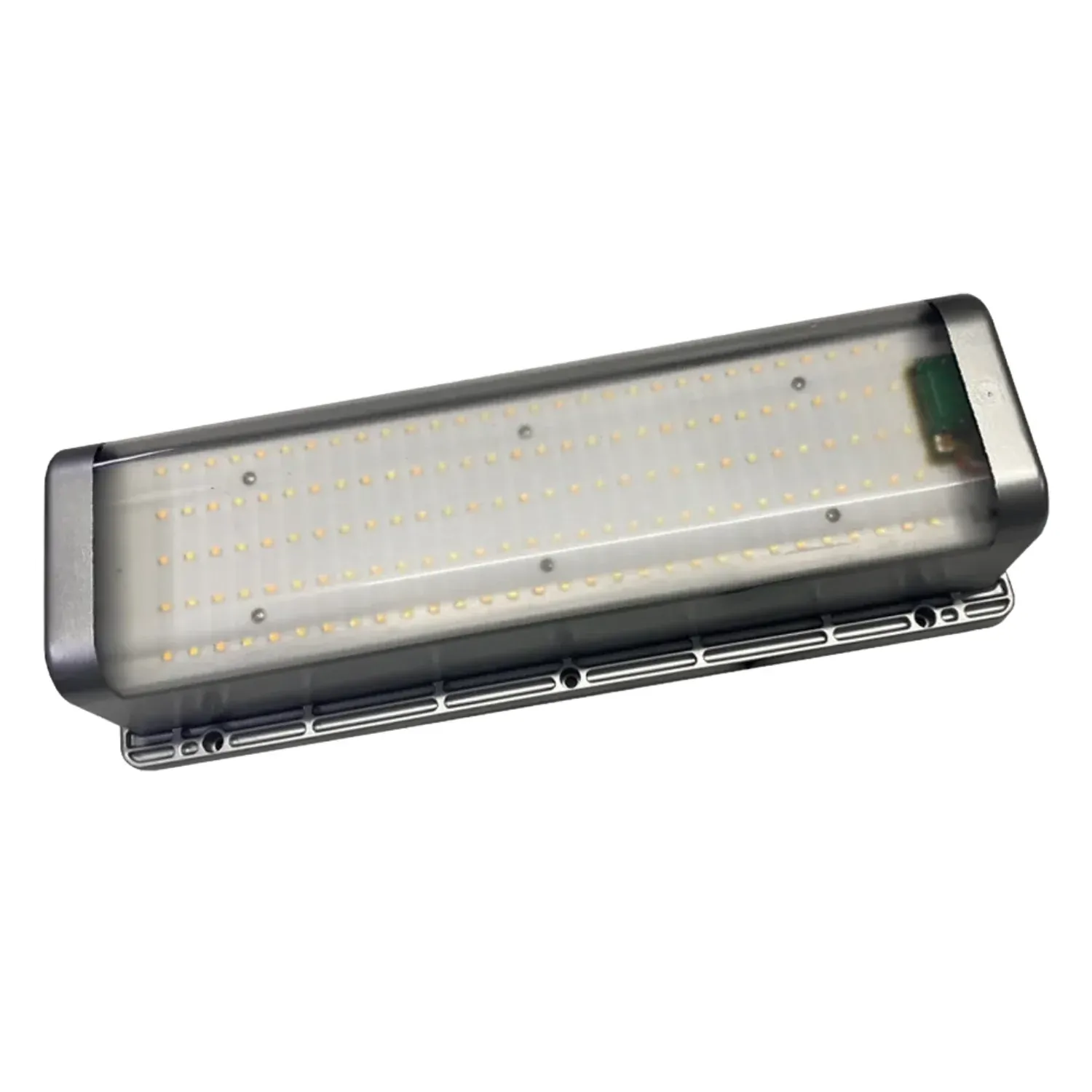

The Solar Lighting Designs SOLBATT002 is a vandal resistant solar batten light with selectable 4W or 6W output, rated 800 or 1200 lumens. The SOLBATT002 runs from a 30W flexible solar panel and a 153.6Wh LiFePO4 battery, with more than 5 nights of autonomy depending on the mode selected. Colour temperature is selectable between 3000K and 5000K. The moulded polycarbonate body is IK10 impact rated and carries no exposed buttons.
A bus shelter, a container, or a kiosk presents the same combination of difficulties. There is no distribution within reach, the structure is unsupervised overnight, and any exposed control becomes a target. Conventional fittings surrender at the weakest of the three. The SOLBATT002 removes all three exposures. The fully sealed polycarbonate body carries an IK10 impact rating, the programming buttons are hidden behind the lens, and a 30W flexible panel supplies the fitting without a mains connection.
Selectable output and selectable colour temperature convert a single stock line into several specifications. 4W or 6W and 3000K or 5000K are chosen at commissioning, so a warm 800 lumen shelter and a cool 1200 lumen container run the same part number. Installation is plug and play: fixing points, a 5 metre cable, and waterproof connectors, with no excavation and no switchboard work. The flexible panel conforms to a curved or profiled roof, which suits the shelter and container structures the fitting is built for.
Features
- Selectable 4W or 6W output — the SOLBATT002 is set to 800 or 1200 lumens at commissioning, matching the fitting to the space rather than the space to the fitting.
- Selectable 3000K or 5000K — warm white for shelters and amenity spaces, cool white where the light doubles as a deterrent.
- IK10 impact rated — the solar lens and lamp body are both rated to the highest impact class in the IK scale.
- Fully sealed polycarbonate body — moulded high impact polycarbonate with no seams to prise and no fasteners on the face.
- Hidden programming buttons — controls sit behind the lens with no exposed buttons, so the SOLBATT002 cannot be switched off or reprogrammed by hand.
- Three programmable modes — staged output with motion activation until dawn, a 5 hour full-output run, or straight dusk to dawn at 100%.
- Automatic dusk to dawn operation — the fitting starts and stops on ambient light with no timer to set and no photocell to wire.
- 30W flexible solar panel — the panel conforms to the roof profile rather than sitting proud of it, and recharges the battery in 4 to 6 hours.
- 153.6Wh LiFePO4 battery — a 12.8V 12Ah lithium iron phosphate cell carries more than 5 nights of autonomy, setting dependent.
- 5 metre cable and waterproof connectors — separates panel from fitting for roof mounting, with extensions available.
- Shelter-scale output — 1200 lumens from a 380mm batten lights a shelter, kiosk, or container interior; it will not cover a yard or a car park.
- Five-year warranty — covers faulty workmanship or component failure not influenced by external means, running from the invoice date.
Where to use
- Bus shelters and transport stops — the SOLBATT002 lights a shelter interior overnight on a route with no supply and no supervision.
- Shipping containers and site stores — the flexible panel sits on the container roof and the batten lights the interior through the door.
- Kiosks and market stalls — selectable warm output suits a servery or counter where the structure has no permanent connection.
- Garages and carports — a detached garage gets light without a submain run from the house switchboard.
- Sheds and rural outbuildings — the SOLBATT002 runs entirely off the 30W panel on a shed with no mains anywhere near it.
- Temporary and event installations — plug and play fixing suits structures that come down again, with the same fitting reused permanently later.
- Public amenity structures — shelters, seating areas, and covered walkways where exposed controls would be tampered with.
The SOLBATT002 is a 380mm batten rated 800 to 1200 lumens, sized for shelters, kiosks, and container interiors rather than yards, car parks, or perimeters. Solar Lighting Designs publishes no IP rating for this fitting, so confirm suitability with SLD before specifying it for washdown or hosed positions. Autonomy is mode dependent, and the panel needs daily sun on the roof it is fixed to, which rules out shaded or overshadowed structures.
