Solar Lighting Designs | Square Solar Skylight LED Panel 600x600mm 7020lm | 5000K Daylight

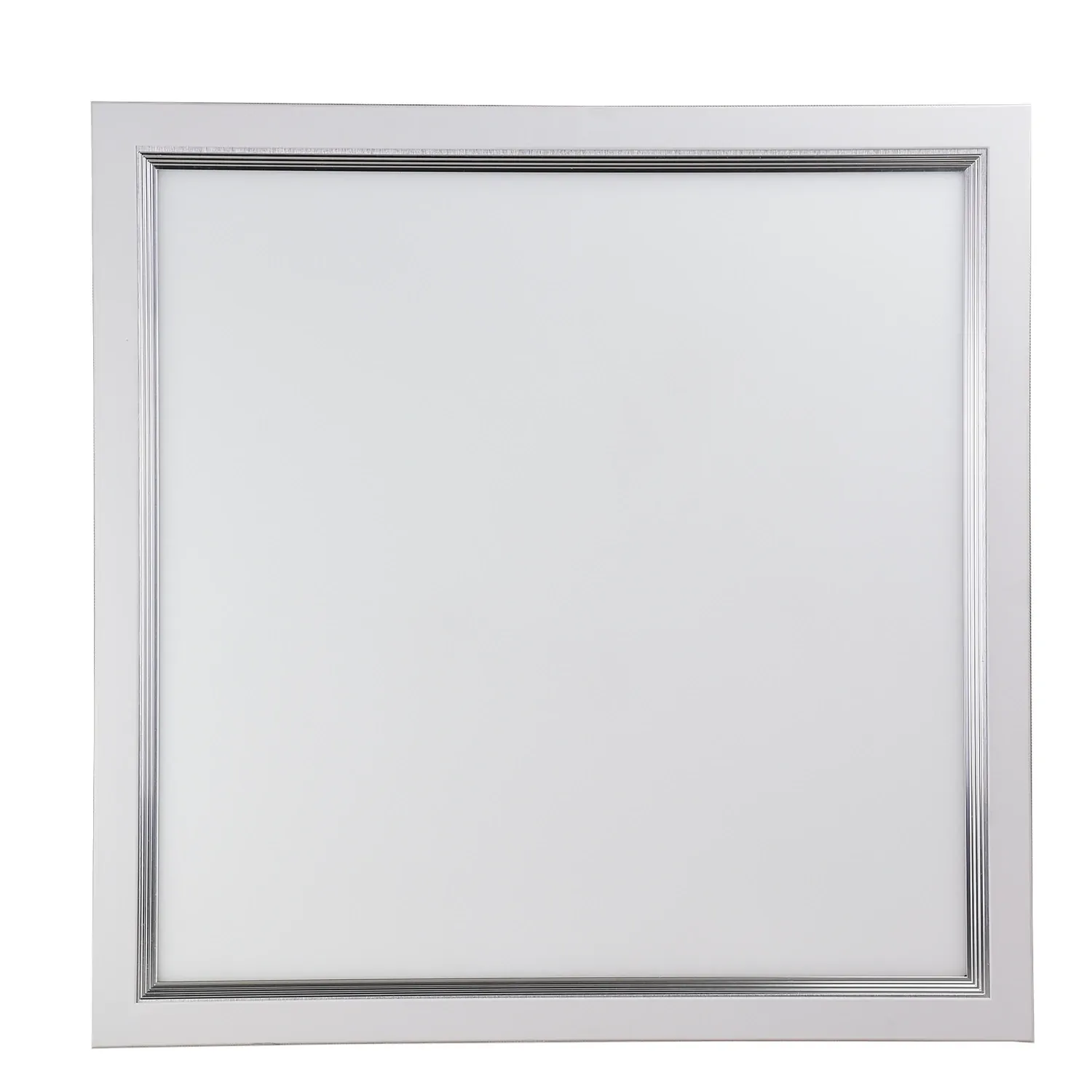

The Solar Lighting Designs SSL60-SQUARE is a solar-powered skylight alternative built around a 600 x 600mm LED panel, delivering natural-style daylight without mains power, a light shaft, or batteries. It produces up to 7020 lumens at 5000K and lights automatically in proportion to sun hitting a remote 60W solar panel. A 15-metre cable links the solar panel to the LED head, so the SSL60-SQUARE reaches rooms and roof levels a traditional skylight cannot.
Windowless hallways, internal rooms, sheds, and shipping containers are dark by default, and running a traditional skylight means cutting a light shaft through the roof structure. Mains-powered fittings add a cable run, a switch, and an ongoing power bill for a space that only needs daytime light. The SSL60-SQUARE skips both problems: it needs no light shaft and no mains power, drawing its light from a roof-mounted solar panel instead. The 600 x 600mm panel spreads even daylight-style light across a larger room from a single fitting.
For the installer, the SSL60-SQUARE installs as a plug and play job with standard tools, requiring no mains connection to the LED head. The flush or surface mounting options let it recess into a ceiling or sit beneath a hard lid where recessing is impractical. With no switch, no battery, and no ongoing power consumption, the fitting needs minimal attention once commissioned. The 15-metre lead positions the solar panel in full sunlight while the illuminated head lands where daylight is needed.
Features
- Solar powered operation — the SSL60-SQUARE runs entirely on a roof-mounted solar panel, with no mains power, no batteries, and no running cost.
- 600 x 600mm LED panel — the square light head spreads even daylight-style light across a larger room from one fitting.
- 7020 lumen output — the panel delivers up to 7020 lumens in full sun, bright enough for hallways, sheds, and internal rooms.
- 5000K daylight colour — the 5000K colour temperature gives a clean, natural daylight look rather than a warm yellow tone.
- 15-metre cable included — the SSL60-SQUARE ships with 15 metres of cabling to link the roof panel to the LED head across different levels.
- Flush or surface mount — the LED head recesses flush into a ceiling or mounts to the surface where recessing is not possible.
- No light shaft required — unlike a glazed skylight, the panel needs no shaft cut through the roof structure, so it drops into any room.
- Automatic daytime lighting — the fitting switches itself on and off with the sun, brightening and fading in proportion to panel exposure, with no wall switch.
- SMD2835 LED source — the panel uses SMD2835 LEDs to generate its light output.
- Solar mounting hardware included — the SSL60-SQUARE includes the adjustable solar panel bracket, so the panel angles toward the best sun exposure.
- Brightness varies with sunlight — output drops on overcast days and at dusk because the light tracks available sun, and it does not operate at night.
Where to use
- Windowless hallways — the SSL60-SQUARE brings daytime light to internal corridors and stairwells that get no natural light.
- Internal rooms and bathrooms — rooms set away from external walls gain a daylight-style source without a window or skylight shaft.
- Commercial sheds and workshops — larger work areas without mains lighting get bright daytime illumination from the 600 x 600mm panel.
- Shipping containers and site offices — converted containers and demountables light up during the day with no power connection to arrange.
- Garages and daytime workspaces — work areas gain light without adding to the power bill or running a new circuit.
- Off-grid and remote buildings — cabins, sheds, and rural structures without mains power suit the SSL60-SQUARE solar setup.
The SSL60-SQUARE is a daytime solar light and does not operate at night or in darkness, so it is not a replacement for switched mains or emergency lighting. Output depends on sunlight, so a heavily shaded roof or a panel position with poor sun exposure will cut brightness. The LED head is made for internal spaces; only the solar panel is intended to mount outdoors.
