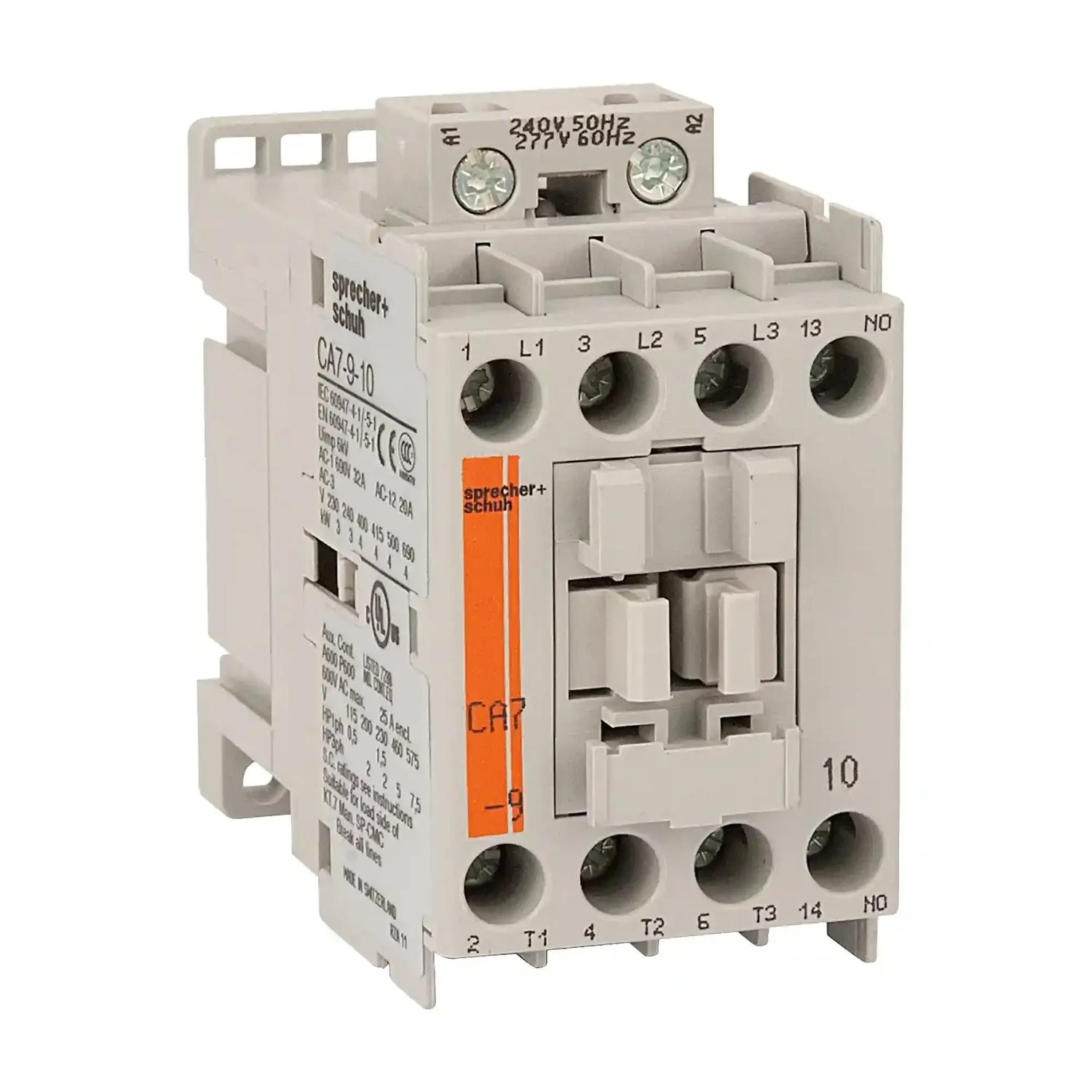

The Sprecher + Schuh CA7-9-10-24VAC is a three pole non-reversing contactor with a 24V AC control coil, rated 9A in AC-3 duty and 32A in AC-1 duty. The CA7-9-10-24VAC switches motor loads to 4kW at 400V and carries one normally open auxiliary contact. It is an open type device from the CA7 series, rated for main circuits to 690V with screw terminal connections.
A direct on line starter build succeeds or fails on whether the contactor coil matches the control voltage already established on the panel. Many small machine and pump panels run a 24V control transformer for safety, and a 240V coil is no use there. The 24V AC coil lands on an existing extra-low-voltage control circuit without adding a second transformer. A 9.5VA hold-in figure keeps the continuous burden modest where one transformer supplies several contactors.
Panel builders specify the CA7-9 in volume because the frame and accessories stay consistent across the series. Reversible coil terminals mean one part number covers a build wired from the top or from the bottom, so inventory carries fewer variants. The 1 NO auxiliary contact arrives already fitted, which saves an additional contact block on a seal-in or interlocking circuit. A published 75VA pickup figure against 9.5VA hold-in lets the control transformer be calculated on inrush rather than guessed.
The CA7-9-10-24VAC is an open type device and must be installed inside an enclosure or switchboard providing the required degree of protection. The coil is 24V AC only, so it will not operate from a 240V control circuit or from a DC supply. AC-4 duty derates the contactor to 1.8kW at 400V, so jogging, plugging and reversing applications need that lower figure applied.
(CA7-9-10-24VAC)
It’s commonly used in small motor starters and general control panels where reliable switching of pumps, fans, conveyors, or similar loads is required.
The CA7 contactors are designed with a slim, open-frame build and low coil consumption, making them ideal for tight switchboards and energy-efficient control circuits.
Absolutely, it's built to work with CA7-series overload relays, allowing easy integration into full motor-starter assemblies.
It supports up to 4kW at 400V in AC-3 duty, making it ideal for small to medium 3-phase motors.
The contactor operates on a 24VAC control coil, suitable for common low-voltage control systems.
Yes, Sparky Direct carries the CA7-9-10-24VAC and offers fast, Australia-wide delivery.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Sprecher + Schuh |
| SKU | CA7-9-10-24VAC |
| Model # | CA791024VAC |
| Barcode # | 205956469 |
| Package Weight | 0.380kg |
| Package Width | 0.085m |
| Package Height | 0.050m |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Sprecher+Schuh |
| Range | CA7 |
| Rated Current (A) | 9 (AC-3) |
| Number of Poles | 3 |
| Rated Voltage (V) | 24V AC |
