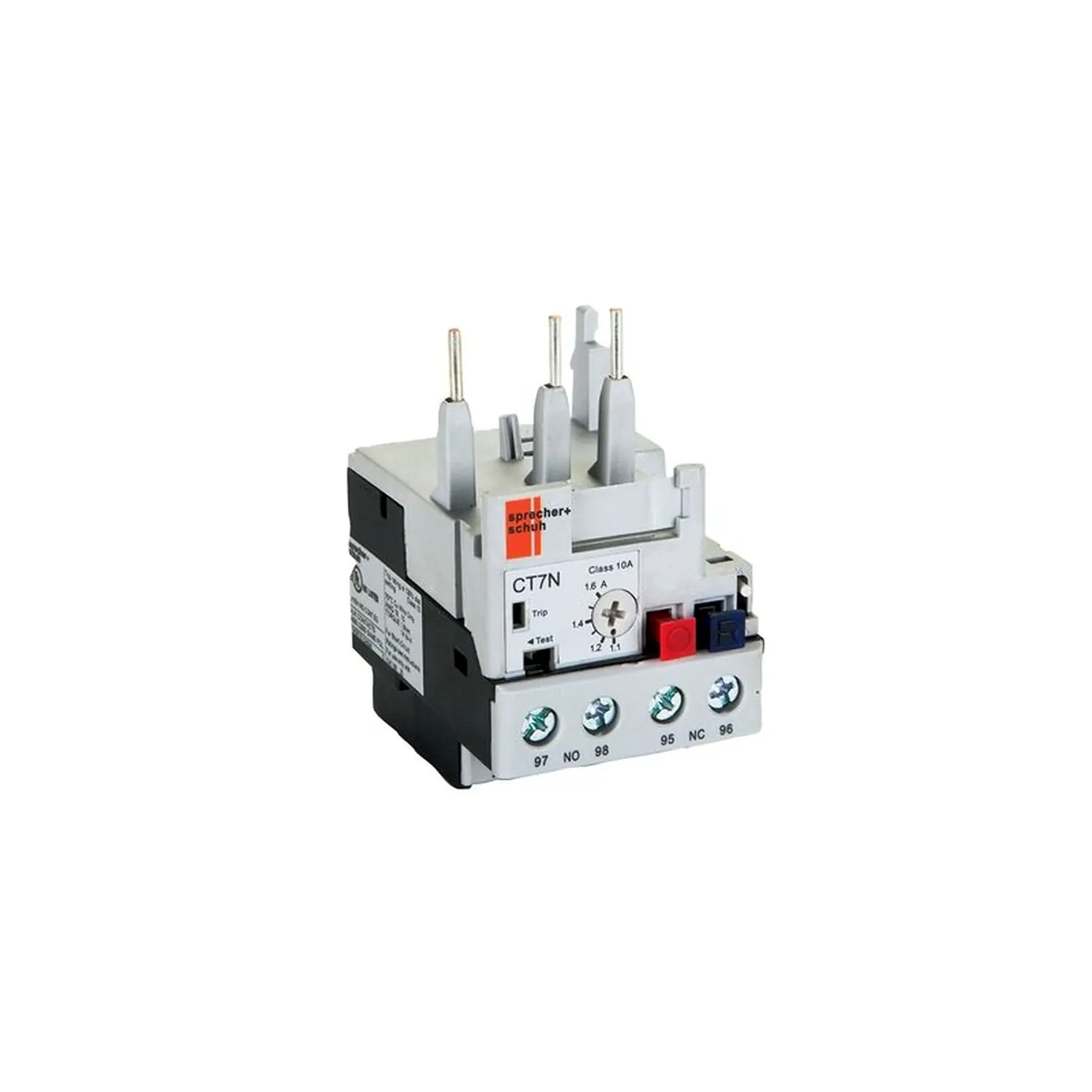

    Sprecher+Schuh CT7N-23-B20 | Thermal Overload Relay 1.4-2 Amps 690V

    Description:

    Revolutionize your motor protection strategy with the Sprecher+Schuh CT7N-23-B20 Thermal Overload Relay—an advanced solution that offers consistent and reliable protection, ensuring the longevity and optimal performance of your valuable motors. Elevate your motor protection game with the CT7N-23-B20.

    Benefits:

    • Dependable Motor Protection: Rely on the CT7N-23-B20 for consistent and reliable motor protection, providing peace of mind for your valuable assets.

    • Phase Loss Sensitivity: The differential release feature ensures sensitivity to phase loss conditions, offering enhanced protection for motors in challenging scenarios.

    • Versatile Application: Suitable for a range of applications, the CT7N-23-B20 is compatible with CA7-9 to CA7-23 Contactors, making it an ideal choice for light industry and low-critical process environments.

    • Selectable Reset Options: Tailor the reset process to your preference with the selectable reset switch, offering both manual and automatic reset modes for added convenience.

    • Optional Remote Reset Solenoid: Enhance operational flexibility with the option for a remote reset solenoid, simplifying the management of the reset function.

    • Ideal for Various Motors: Whether you have conveyors, fans, pumps, VFD-controlled motors, or DC motors, the CT7N-23-B20 is designed to meet your diverse motor protection needs.

    FAQ:

    Q: What is the voltage rating of the CT7N-23-B20 Thermal Overload Relay?
    A:
    This relay is rated for 690 Volt AC, ensuring robust protection for your motors.

    Q: Can it be used for single-phase applications?
    A:
    Yes, the CT7N-23-B20 is suitable for single-phase applications, catering to various motor setups.

    Q: Is the reset process customizable?
    A:
    Absolutely. The CT7N-23-B20 offers a selectable reset switch, allowing users to choose between manual and automatic reset modes.

    Q: What applications are ideal for this thermal overload relay?
    A:
    The CT7N-23-B20 is perfect for light industry and low-critical process environments, including conveyors, fans, pumps, VFD-controlled motors, and DC motors.

    Experience the unmatched protection and versatility of the Sprecher+Schuh CT7N-23-B20 Thermal Overload Relay. Trust in its advanced features to safeguard your motors, providing reliable performance and adaptability for various applications. Elevate your motor protection with the CT7N-23-B20.

    (CT7N-23-B20)

    Warranty

    The warranty starts from the Invoice Date.

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Return to Sparky Direct

    Features
    Specification Details
    UNSPSC CLASS 39122300
    UOM EA
    CONTACT CONFIGURATION 1 Normally Opened & 1 Normally Closed
    CONTROL TYPE Automatic/Manual
    FREQUENCY 50/60 Hz
    FOR USE WITH CA7-9 to CA7-23 Contactors
    MOUNTING METHOD Direct
    PLEASE NOTE 1 Phase
    OPERATIONAL VOLTAGE 690 Volt AC
    SETTING RANGE TO (AMP) 2.0
    PRODUCT TYPE Contactor Overloads
    TERMINAL CONNECTION Screw
    TIGHTENING TORQUE 1.5-2.2 N/m
    TEMPERATURE -20 to 60 deg C
    SETTING RANGE FROM (AMP) 1.4
    TRIP CHARACTERISTIC Class 10A
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Sprecher + Schuh
    SKU CT7N-23-B20
    Barcode # 10662074718693
    Package Weight 0.115kg
    Package Width 0.075m
    Package Height 0.050m
    Package Length 0.085m
    TYPE VALUE
    Type Thermal Overload Relay
    Brand Sprecher+Schuh
