    Description

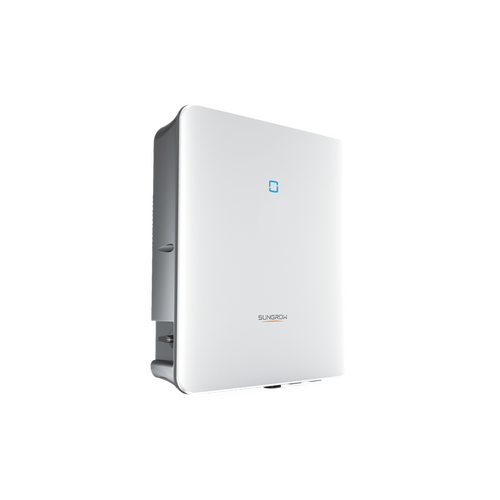

    SUNGROW SH10RT | 10kW 3-Phase Hybrid Inverter

    The Sungrow SH10RT is a robust 10kW 3-phase hybrid solar inverter designed to meet the energy needs of homeowners. This inverter supports a 600 Vdc system and features multiple MPPTs for enhanced energy harvesting. It integrates seamlessly with solar power setups, providing efficient energy conversion and management.

    With advanced features like seamless transition to backup mode, smart energy management, and high self-consumption with optimized built-in EMS, the SH10RT ensures reliable and efficient performance. Its user-friendly design makes it an excellent choice for residential solar systems.

    10kW 3-Phase Hybrid Inverter Features:

    • High Yield: Supports high power PV modules with a wide MPP voltage range (200V-950V) for maximum energy harvest.
    • Energy Independence: Seamless transition to backup mode and fast charging/discharging to meet higher consumption demands.
    • Smart Management: Real-time data monitoring, remote firmware updates, and customizable settings.
    • Robust Safety: Includes integrated DC and AC Type II surge protection, arc fault circuit interrupter, and C5 corrosion protection.
    • User-Friendly: Easy installation with unique push-in connectors, touch-free commissioning via smartphone, and lightweight, compact design.

    SH10RT FAQ:

    Q: What is the maximum efficiency of the Sungrow SH10RT inverter?
    A: The maximum efficiency is 98.4%.

    Q: Can the SH10RT be monitored remotely?
    A: Yes, it offers real-time data monitoring, remote firmware updates, and customizable settings through online platforms.

    Q: What safety features are included in the SH10RT?
    A: The inverter includes DC and AC Type II surge protection, arc fault circuit interrupter, and C5 corrosion protection.

    Q: What is the MPPT voltage range for the SH10RT?
    A: The MPP voltage range is 200V to 950V, making it compatible with a variety of PV modules.

    (SH10RT)

    Warranty

    Warranty starts from Invoice Date

    This warranty offers a combined coverage of 10 years, divided into two phases:

    First 5 Years: During this period, you are entitled to a full product replacement in case of any issues or defects. This means if your product malfunctions within the first 5 years, you'll receive a brand-new replacement.

    Following 5 Years: After the initial 5 years, the warranty continues for an additional 5 years, but it shifts to covering parts only. In this phase, if any product components need replacement or repair, the warranty will cover the cost of those parts.

    This comprehensive warranty (Warranty Method: Return to Sparky Direct) ensures both the longevity and performance of your product, offering you peace of mind for a full decade.

    Features
    Specification Details
    PV Input
    Recommended max. PV input power 15.0 kWp
    Max. PV input voltage 1000 V
    Min. operating PV voltage / Start-up input voltage 200 V / 250 V
    Rated PV input voltage 600 V
    MPP voltage range 200 – 950 V
    No. of independent MPP inputs 2
    Default No. of PV strings per MPPT 1/2
    Max. PV input current 37.5 A (12.5 A / 25 A)
    Max. DC short-circuit current 48 A (16 A / 32 A)
    Max. Current for DC Connector 30A
    Battery Data
    Battery type Li-ion battery
    Battery voltage 150V - 600V
    Max charge / discharge current 30A / 30A
    Max charge / discharge power 10600W / 10600W
    AC Input and Output
    Max. AC input power to battery 20600W
    Max. AC power from grid 20600W
    Rated AC output power 10000W
    Rated AC output apparent power 10000VA
    Max. AC output current 15.2A
    Rated AC voltage 3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V
    AC voltage range 270 - 480 V
    Rated grid frequency / Grid frequency range 50 Hz, 45 - 55 Hz
    Harmonic (THD) < 3 % (at rated power)
    DC current injection < 0.5 %
    Power factor at rated power / Adjustable power factor > 0.99 / 0.8 leading – 0.8 lagging
    Feed-in phases / Connection phases 3 / 3
    Backup-Data
    Rated voltage 3/N/PE, 220 Vac/230 Vac/240 Vac
    Frequency range 50 Hz / 60 Hz
    Total harmonic factor output voltage (Linear load) 2 %
    Switch time to emergency mode <20 ms
    Rated output power 10000W / 10000VA
    Peak output power 12000W / 12000VA, 5min
    Peak output power on single phase 3400 VA (≥12.8kWh)
    Rated output current for backup load during on grid mode 3 x 18.5A
    Efficiency
    Max. efficiency 98.4%
    European efficiency 97.9%
    Protection
    Grid monitoring Yes
    DC reverse polarity protection Yes
    AC short-circuit protection Yes
    DC switch (solar) Yes
    DC Overcurrent Protection (Battery) Yes
    Surge Protection DC type II / AC type II
    Parallel operation on grid port / Max. No. of inverters Master-slave mode / 5
    Battery input reverse polarity protection Yes
    General Data
    Dimensions (W*H*D) 460 * 540 * 170 mm
    Weight 27 kg
    Mounting method Wall-mounting bracket
    Topology Transformerless
    Degree of protection IP65
    Operating ambient temperature range -25 to 60 ℃
    Allowable relative humidity range (non-condensing) 0 – 100 %
    Cooling method Natural Convection
    Max. operating altitude 4000 m
    Noise (Typical) 30dB(A)
    Communication
    Display LED
    Communication RS485, WLAN, Ethernet, CAN, 4 × DI, 1 × DO
    DI/DO DI*4/DO*1/DRM
    DC connection type MC4 (PV) / Evo2 Compatible (Battery)
    AC connection type Plug and play connector
    Compliance IEC / EN 62109, IEC / EN 61000-6, EN 62477-1, IEC 61727, IEC 62116, IEC 61683, VDEAR-N-4105, AS/NZS 4777.2:2020, EN50549-1, NRS 097-2-1, TOR Generator Type A, NA/ EEA:2020 NE7, SII 2021, NC RfG PTPiREE, NC RfG, EIFS 2018:2, PPDS4, C10/11
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand SUNGROW
    SKU SH10RT
    Package Weight 37.100kg
    Package Width 0.600m
    Package Height 0.270m
    Package Length 0.800m
    TYPE VALUE
    Type Hybrid Inverter
    Brand Sungrow
    Colour White
