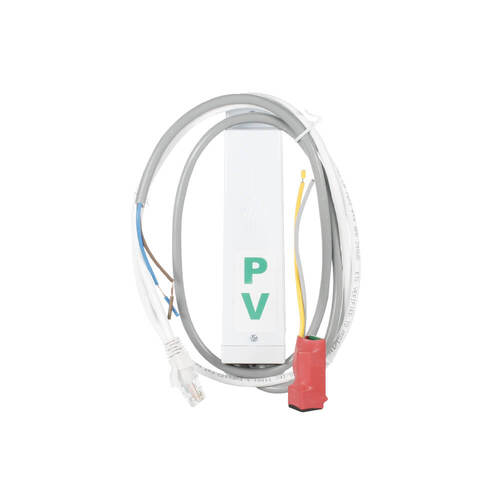

        TMAC TM01714 | Generation Signalling Device (GSD)

        Description:

        In today's world, reliable energy generation is paramount, especially during emergency situations. The TMAC TM01714 Generation Signalling Device (GSD) empowers you to have a direct say in controlling the generation capability of AS4777-compliant solar inverters. Here's why it's a game-changer for grid stability:

        Key Benefits:

        • Grid Stability Assurance: The TMAC GSD is your guardian of grid stability. It enables you to assert DRM0 on the inverter DRED port when renewable generation levels pose a threat to grid stability. Say goodbye to widespread power outages during critical times.

        • Emergency Protocols: With the GSD, electricity network operators gain a powerful tool to implement emergency protocols swiftly. This ensures the continuity of supply even when renewable generation reaches critical levels.

        • Ripple Control Technology: The GSD operates on ripple control technology, receiving Audio Frequency Load Control (AFLC) signals to activate specific inverter generation modes precisely when needed.

        • Two-Level Generation Limiting: The GSD offers versatility with two levels of generation limiting for AS4777-compliant solar inverters. Choose DRM0 for a complete disconnection from the grid or DRM6 to limit generating capacity to 50% of the average output over the last 5 minutes.

        FAQ:

        Q: What is DRM0?
        A:
        DRM0 is a mode that completely disconnects the inverter from the electricity grid. It ensures compliance with the Australian standard AS4777 and is a crucial feature for grid stability.

        Q: Can I use the GSD in areas exposed to weather?
        A:
        Absolutely! The TMAC TM01714 GSD is designed with an IP64 enclosure, making it suitable for mounting in areas exposed to weather. It's built to withstand various conditions.

        Q: How does the GSD benefit electricity network operators?
        A:
        Electricity network operators can use the GSD to swiftly activate emergency protocols, ensuring a continuous power supply to customers even in challenging grid situations.

        Q: Is the GSD compatible with AS4777-compliant solar inverters?
        A:
        Yes, the GSD is fully compatible with AS4777-compliant solar inverters, offering two different levels of generation limiting to meet specific grid stability needs.

        When it comes to grid stability, the TMAC TM01714 Generation Signalling Device is your trusted ally. Take control of your solar energy generation, ensure uninterrupted power supply during emergencies, and embrace a more reliable and resilient energy future. Don't wait—invest in grid stability today!

        (TM01714)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications
        Overall Dimension 174 x 38 x 26mm
        Supply Voltage Range 216-264VAC 50Hz
        Power Consumption 0.2W Max
        DRM Options DRM0, DRM6 available
        IP Rating IP64 (Suitable for mounting in areas exposed to weather)
        SAA Approvals Number SAA172887



        GSD Inverters Requirement

        Connection Category Total Inverter Capacity Types of Inverter Connections Required to Install a GSD Exclusions Requirement for Inverters to be GSD capable and have GSD installed
        Low voltage Less than 10kVA Initial connection No N/A N/A
        Low voltage Less than 10kVA Increase inverter capacity No N/A N/A
        Low voltage Less than 10kVA Replace inverter (no increase of supply) – not a warranty replacement N No N/A N/A
        Low voltage 10kVA or higher Initial connection Yes Including hybrid inverters Not required where inverter solely supplied by energy storage system (AC coupled batteries) Not required in non AFLC areas Not required for warranty ‘like for like’ replacement All inverters
        Low voltage 10kVA or higher Increase inverter capacity Yes Including hybrid inverters Not required where inverter solely supplied by energy storage system (AC coupled batteries) Not required in non AFLC areas Not required for warranty ‘like for like’ replacement All new inverters only
        Low voltage 10kVA or higher Replace inverter (no increase of supply) – not a warranty replacement Yes Including hybrid inverters Not required where inverter solely supplied by energy storage system (AC coupled batteries) Not required in non AFLC areas Not required for warranty ‘like for like’ replacement All new inverters only
        Low voltage Any Replace inverter (no increase of supply) – warranty replacement No N/A N/A
        High voltage Any Any No N/A N/A

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand TMAC
        SKU TM01714
        Package Weight 0.220kg
        Package Width 0.290m
        Package Height 0.040m
        Package Length 0.165m
        TYPE VALUE
        Type GSD
        Brand TMAC
        Colour White
