Learn more by watching our Tesla DCO2P63 | Changeover Switch 2 Pole 63 Amp video.

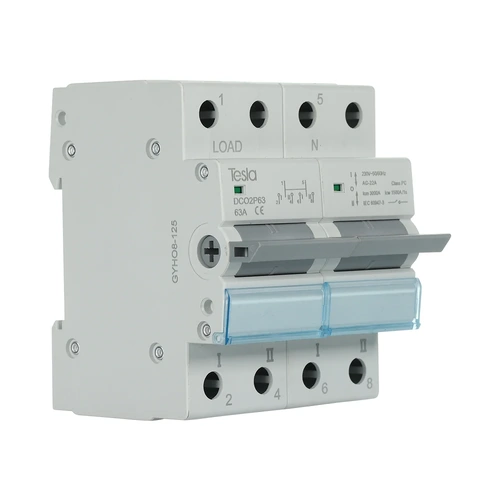

The Tesla DCO2P63 Changeover Switch allows safe switching between two power sources with a centre off position for complete mains disconnection. This 2 pole switch is rated at 63A, operates at 230V AC, and complies with IEC 60947-3 standards. Its modular 4-module design ensures easy installation in various setups.
Built for durability, it handles short circuit currents up to 3000A and offers a mechanical life of 10,000 cycles. Compact dimensions (85mm H x 72mm W x 75mm D) make it suitable for tight spaces.
Q: What is the voltage rating of the DCO2P63 switch?
A: It operates at 230V AC with an insulation voltage of 440V.
Q: Can the switch handle short circuit conditions?
A: Yes, it supports up to 3000A short circuit current.
Q: What cable size is recommended for installation?
A: It fits cables up to 25mm² with a tightening torque of 2Nm.
(DCO2P63)
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Model Number | DCO2P63 |
| Number of Poles | 2 |
| Number of Modules | 4 |
| Rated Operational Voltage (Ue) | 230 V |
| Frequency | 50/60 Hz |
| Rated Insulation Voltage | 440 V |
| Voltage Type | AC |
| Rated Operational Current AC21 (Category B) | 63 A |
| Acceptable Current Rating AC22 (Category A) | 63 A |
| Short Circuit Current | 3000 A |
| Rated Current | 63 A |
| Standard | IEC 60947-3 |
| Height | 85 mm |
| Width | 72 mm |
| Depth | 75 mm |
| Cable Size | 25 mm² |
| Tightening Torque | 2 Nm |
| Operating Temperature | -20°C to 50°C |
| Mechanical Life | 10,000 Cycles |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Tesla |
| SKU | DCO2P63 |
| Barcode # | 710497785204 |
| Package Weight | 0.318kg |
| Package Width | 0.076m |
| Package Height | 0.080m |
| Package Length | 0.090m |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Tesla |
| Rated Current (A) | 63 |
| Mounting | Din Rail |
| Voltage (V) | 230 |
| Number of Poles | 2 |
| Curve | C |
| Total Number of modules | 4 |
