Learn more by watching our Tesla SMR-H | 4 Wire Super-Multifunction Time Relay 230V AC video.

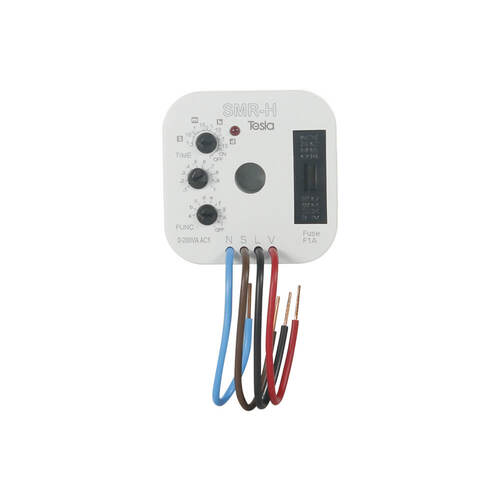

Tesla SMR-H | 4 Wire Super-Multifunction Time Relay 230V AC

Description:

The Tesla SMR-H | 4 Wire Super-Multifunction Time Relay is engineered to bring unparalleled efficiency and versatility to your electrical systems. Operating at AC 230V and designed with a 4-wire connection, including neutral, this relay is the epitome of performance and reliability. With its nine distinct functions and adjustable time ranges from 0.1 seconds to 10 days, the Tesla SMR-H meets a wide array of timing needs, making it an essential tool for any electrical project.

Features:

4-Wire Connection with Neutral: Ensures a stable and secure installation in various electrical setups.
AC 230V Voltage Range: Compatible with standard electrical installations, supporting 50-60Hz.
Nine Functions: Offers versatility for different timing and control requirements.
Time Ranges from 0.1s to 10 Days: Provides flexibility for short-term or extended operations.
Power Output 0 - 200 VA: Capable of handling a range of power needs for different applications.

FAQ:

Q: How does the Tesla SMR-H integrate into existing installations?
A: It's designed for easy installation into wiring boxes or under-wall switches, offering a simple solution for switching to time-controlled or impulse relay systems.

Q: What makes the Tesla SMR-H stand out?
A: Its multifunctional capabilities, extensive time range options, and compatibility with standard electrical systems make it a top choice for professionals.

The Tesla SMR-H | 4 Wire Super-Multifunction Time Relay is not just a product; it's an upgrade to your electrical installations, ensuring efficiency, reliability, and control. Whether it's for a time-controlled switch or an impulse relay, the Tesla SMR-H delivers performance that professionals can rely on.

(SMR-H)

100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

Items must be unused, with all parts, accessories, and original packaging.
We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
Proof of purchase is required.
Return shipping is the responsibility of the customer.

If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

All products come with a manufacturer’s or supplier’s warranty

Warranty starts from the Invoice Date
Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
Sparky Direct isn’t responsible for losses caused by product failure.
Warranties are void if products aren’t installed by a licensed electrician.

Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.

Sparky Direct will pay for return shipping via an emailed return label.
If the fault is confirmed, we will send you a replacement item or provide a refund.

Exclusions
We can’t accept returns for:

Items that have been installed, modified, or used
Clearance, End of life, Discontinued, or special order items (unless faulty)
All PPE Items
Goods returned without original packaging or proof of purchase

How to Request a Return

Contact our customer service team with your order number.
Confirm it’s eligible under our return or warranty policy.
Pack the item securely and return it using a trackable service.
Once we receive and inspect it, we’ll process your refund or replacement.

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

Technical Parameters
Number of Functions	9
Connection	4-wire, with neutral
Voltage range	AC 230 V (50-60 Hz)
Power input (no operation/make) max.	0.8/3 VA
Supply voltage tolerance	-15%, +10%
Time ranges	0.1s - 10 days
Time setting	via rotary switch
Time deviation	10% - mechanical setting
Repeat accuracy	2% - set value stability
Temperature coefficient	0.1 %/°C, at = 20 °C

Output
Number of contacts	1 x triac
Resistive load	0 - 200 VA
Inductive load	4 W
Mechanical life	30,000,000 ops.
Electrical life (AC1)	100,000 ops.

Control
Control voltage	AC 230 V
Control Current	3 mA
Impulse length	min. 50 ms/max. unlimited
Glow tubes connections	Yes
Max. amount of glow lamps connected to controlling input	230 V - max. amount 50 pcs (measured with glow lamp 0.68 mA/230 V A)

Other Information
Operating temperature	0 to +50
Operating position	any
Mounting	free at connecting wires
Protection degree	IP30 in standard conditions
Overvoltage category	III
Pollution degree	2
Fuse	F 1A/250V
Connection Wires (cross-section/length)	4x sol. wir., 0.75 mm2 (AWG 18) 90 mm
Glow-lamps in control button	max. 10
Dimensions	49 x 49 x 13 mm
Weight	28g
Standards	EN 61812-1

These specifications and characteristics outline physical, mechanical, electrical details.

Brand	Tesla
SKU	SMR-H
Barcode #	8595188129114
Package Weight	0.045kg
Package Width	0.100m
Package Height	0.030m
Package Length	0.075m

View Datasheet

TYPE	VALUE
Type	Multifunction Relay
Brand	Tesla
