    Description

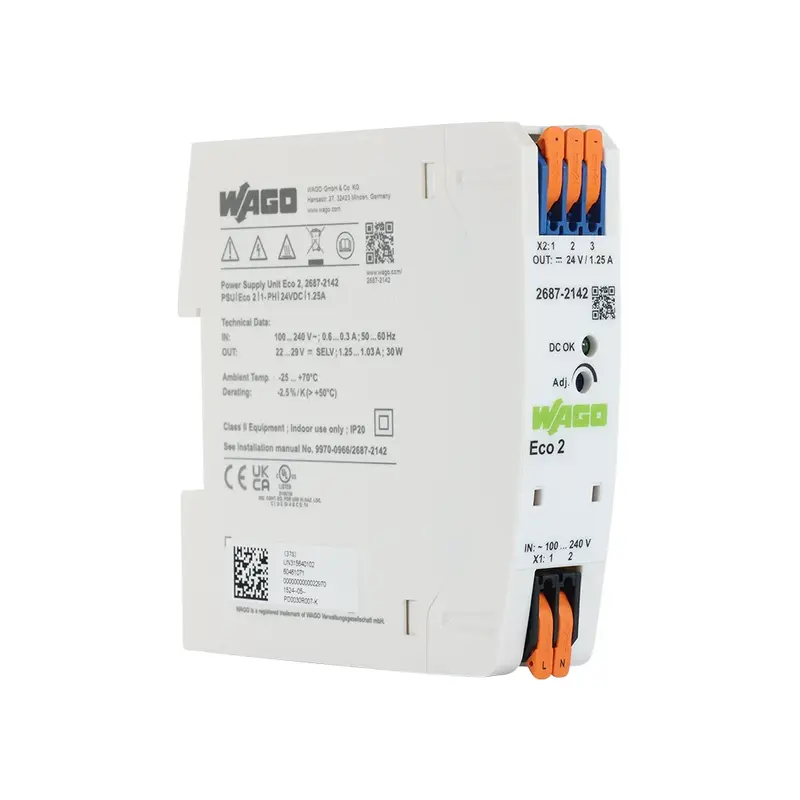

    Wago 2687-2142 | Eco 2 1 Phase Power Supply 24V DC 1.25A 30W

    The Wago 2687-2142 Eco 2 Power Supply offers dependable 24V DC output, making it a strong choice for essential installations in industrial and electrical applications. This single-phase power supply delivers up to 1.25A and 30W, ensuring stable voltage with energy efficiency and a compact design. Its push-in CAGE CLAMP® terminals and tool-free lever make wiring fast and straightforward, while the DC OK LED provides a quick visual status check.

    Designed for versatility, the 2687-2142 model supports both parallel and series operation and includes overvoltage, short-circuit, and open-circuit protection for consistent, safe performance. With its slim, IP20-rated design, it easily mounts onto DIN-35 rails, offering a space-saving solution with natural convection cooling.

    Wago 2687-2142 Features:

    • 24V DC Output (1.25A, 30W): Provides stable voltage, ideal for industrial applications.
    • Push-In Connection Technology: Utilises CAGE CLAMP® for quick, tool-free wiring.
    • Compact Design: Slim 25mm width, perfect for space-saving DIN-35 rail mounting.
    • DC OK LED Indicator: Instantly displays operational status.
    • Parallel and Series Operation: Flexible setup options to suit various installation needs.
    • Built-In Safety Features: Includes overload, short-circuit, and overvoltage protection for reliable operation.

    Wago 2687-2142 FAQ:

    Q: What is the output power of this power supply?
    A: The power supply provides a 24V DC output with a maximum of 1.25A, equalling 30W.

    Q: Is this power supply easy to install?
    A: Yes, it features push-in CAGE CLAMP® technology for quick, tool-free wiring on DIN-35 rails.

    Q: Does it have any safety features?
    A: Yes, it includes short-circuit, overload, and overvoltage protection to ensure safe operation.

    Q: Can this power supply be used in parallel or series configurations?
    A: Yes, it supports both parallel and series configurations for versatile installation options.

    (2687-2142)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Return to Sparky Direct

    Features
    Specification Details
    Item Number 2687-2142
    Input Voltage 100-240 V AC
    Output Voltage 24 V DC (Adjustable 22-29 V)
    Output Current 1.25 A
    Output Power 30 W
    Efficiency 88%
    Protection Type IP20
    Operating Temperature -25°C to +70°C
    Dimensions (WxHxD) 25 x 100 x 90 mm
    Weight 160 g
    Standards/Approvals EN 61010-1, UL 61010-1, SEMI F47
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Wago
    SKU 2687-2142
    Barcode # 4066966296501
    Package Weight 0.185kg
    Package Width 0.105m
    Package Height 0.105m
    Package Length 0.030m
    TYPE VALUE
    Type Power Supply
    Brand Wago
    Number of Modules 1
    Input Voltage (V/AC) 240
    Output Voltage (V/DC) 24
    Output Current (A) 1.25
    Output Wattage (W) 30
    Efficiency 88%
