        CLIPSAL 30RJ45SMA6AC-WE | RJ45 Socket Cat 6A Mechanism 30 Series White
        $15.29 $13.90 ex. GST
        Video

        Learn more by watching our CLIPSAL 30RJ45SMA6AC-WE | RJ45 Socket Cat 6A Mechanism 30 Series White video.

        Description

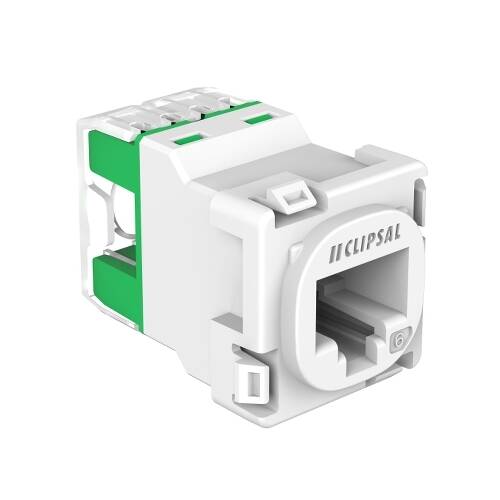

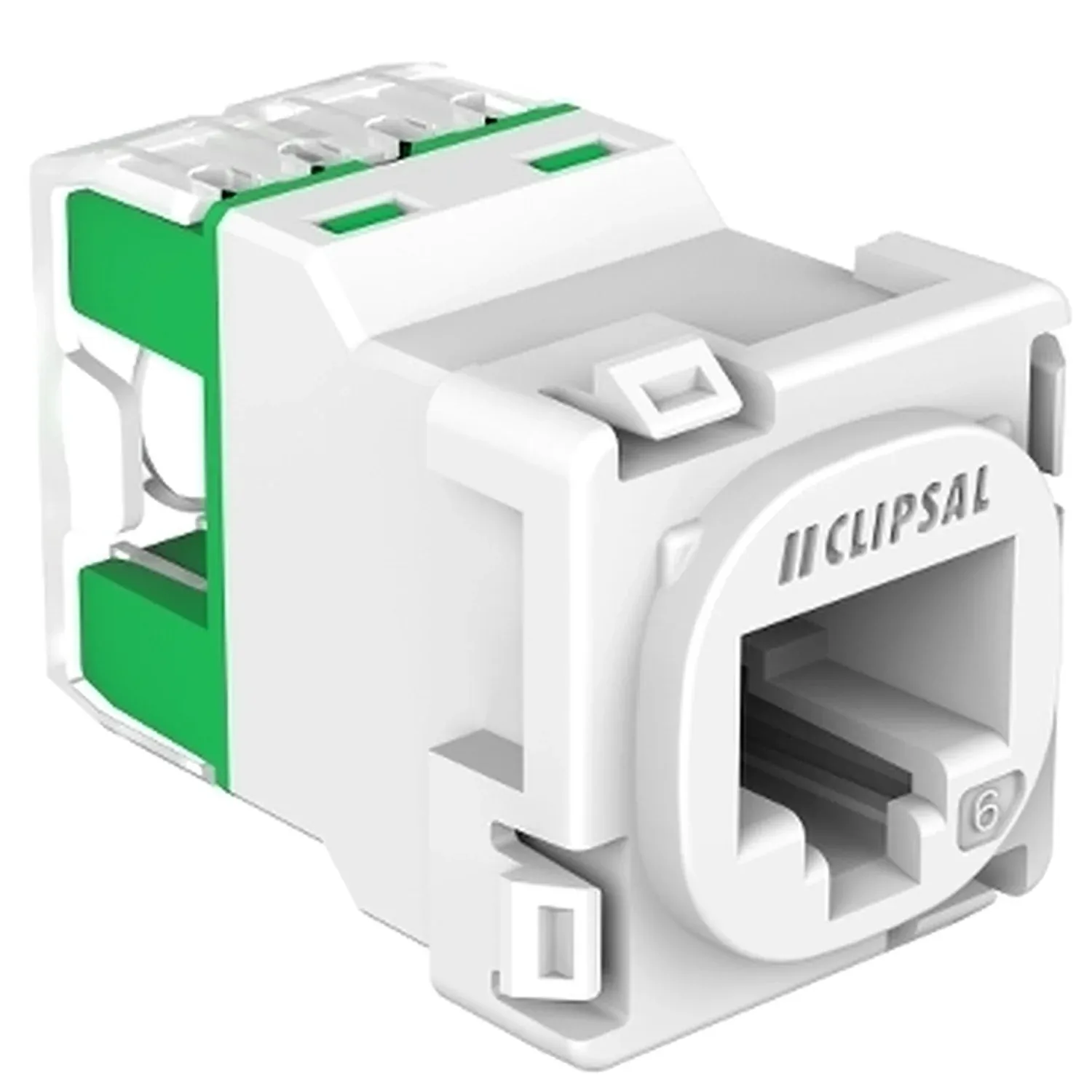

        CLIPSAL 30RJ45SMA6AC-WE | RJ45 Socket Cat 6A Mechanism 30 Series White

        The Clipsal 30RJ45SMA6AC-WE Category 6A RJ45 mechanism is easy to install utilising punch down technology.
        These are now the most popular data socket sold by Clipsal for the domestic market.
        Today's modern home would not be complete without fast ethernet. With the ability to fit both horizontally or vertically the Cat 6A mechanisms can be found in all rooms both domestically or commercially. They can be accessorised with any interchangeable any Clipsal 2000 or Classic 2000 range Bakelite wall plates.
        Electricians find these 30 series Cat 6A mechanisms easy to install, saving time and money at fit off.
        Clipsal RJ45 CAT 6 Mechanism is a essential electrical accessory when completing a domestic or work place ethernet project.

        Features:

        • Category 6A 30 Series Mechanism
        • Unshielded
        • Clear Cable Securing Clip
        • Suitable for Clipsal 2000 or Classic 2000 Series
        • Not Compatible with Iconic 40 series
        • Fully compliant to AS/NZS 3080:2003, ISO/IEC 11801 Edition 2 2002 and ANSI/TIA/EIA-568-B Series connecting hardware standards
        • Backward compatible with category 5e products
        • UL 94V-0 Rated
        • Various colours for easier circuit identification
        • Can be used in multi-user telco communication outlets
        • Flexible locking tabs for easy removal from wall plates
        • Clear IDC caps allow for termination verification and assist in cable retention
        • -40 to 70 deg C Temperature range
        • Nickel plating
        • 0.7 - 1.6 mm Insulation diameter
        • Fire retardant UL 94v-0,
        • Plastic cover

        (30RJ45SMA6ACWE)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 30RJ45SMA6ACWE
        Barcode # 3606489512545
        Shipping Weight 0.0110kg
        Shipping Width 0.020m
        Shipping Height 0.020m
        Shipping Length 0.030m
        Shipping Cubic 0.000012000m3
        TYPE VALUE
        Type TV Data Phone
        Brand Clipsal by Schneider Electric
        Range Series 30
        Colour White
        Height (mm) 22
        Width (mm) 16
        Length (mm) 36
        Contact Configuration 8 Pin
        Box increments (This item is sold individually) 20
        Cable Compatibility UTP
        Plug Compatibility RJ45 & RJ11
        Network Category 6A
