        CLIPSAL 4PS25CO | Changeover Switch 1 Pole 25 Amp
        $64.68 $58.80 ex. GST
        Video

        Learn more by watching our CLIPSAL 4PS25CO | Changeover Switch 1 Pole 25 Amp video.

        Description

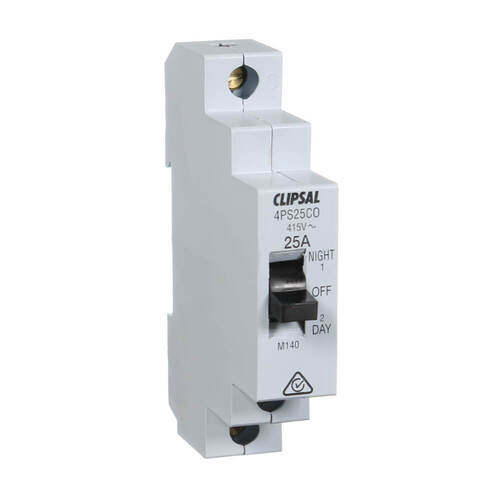

        CLIPSAL 4PS25CO | Changeover Switch 1 Pole 25 Amp

        4PS25CO changeover 25 amp switch is a 1 pole Day - Off - Night din rail mounted switch

        What is a change over switch? A changeover switch switches a house's electricity supply from the general grid power supply to a "generator system" in case of power outage. The changeover switch connects to the main power grid, generator or alternate source and the house wiring. When you switch or "Change over" all the power on that circuit changes from either Grid or Generator. (not allowing it to flow back into each other (Grid and generator))

        Features:

        • Rated current 25 A
        • 415V
        • Rated operational AC voltage 230 V
        • 1 Pole
        • Frequency 50/60 Hz
        • type of connection with screw
        • Maximum 4 - Isolators - DIN rail mount. Night, off, day switching of luminaries where daylight supplements internal lighting.
        • Incoming and outgoing terminals are screw down type and accommodate copper conductors up to 16 sq mm.
        • Auto, off, manual switching of machines.
        • Auxiliary, off, mains switching of small stand-by generators.

        (4PS25CO)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 4PS25CO
        Barcode # 9318795009483
        Shipping Weight 0.1030kg
        Shipping Width 0.075m
        Shipping Height 0.020m
        Shipping Length 0.092m
        Shipping Cubic 0.000138000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Rated Current (A) 25
        Height (mm) 90
        Width (mm) 17.5
        Depth (mm) 60
        Mounting Din Rail
        Total Number of modules 2
        IP Rating IP20 ( IP40 Enclosed )
        Voltage (V) 415
        Curve C
        Number of Poles 1
        Box increments (This item is sold individually) 12
