        Learn more by watching our CLIPSAL 755PSMA4 | Photoelectric Smoke Alarm 240v/9v GEN 4 NEW MODEL video.

        Discover - What is inside the box

        • Instruction Manual
        • Switchboard Stickers
        • Installation Screws
        • Terminal Block
        • How to upon the smoke alarm
        • How to install the battery
        • Where is the expiry date?
        • Test- Hush Button
        Description

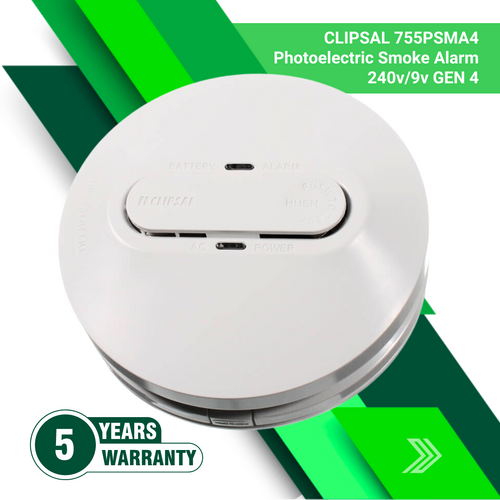

        CLIPSAL 755PSMA4 | Photoelectric Smoke Alarm 240v/9v GEN 4

        Features

        Photoelectric technology for detection of smouldering fire types (most common fire types in homes)

        • Modern design with easy to use test/hush button
        • Certified and ActivFire listed to AS3786:2014
        • Easy installation and maintenance
        • Quality optical chamber with stainless steel insect screen
        • Wired interconnect feature (up to 40 alarms), compatible with all 755 Series FireTek smoke alarms.
        • Optional integral isolated relay(755RB) or wireless interconnect (755RFB) mounting bases
        • Backwards compatible 755PSMA/2 , 755RLPSMA2 and 755SMA smoke alarm surface mounting bases
        • Robust digital design

        Application

        The 755PSMA4 smoke alarm is a photoelectric smoke alarm that can be used as a single mains powered, battery backed alarm or can be interconnected with other 755 series smoke alarms to give whole home protection. It is designed to be surface mounted on the ceiling.

        When used with the 755RFB2 (wireless mounting base), the alarm can offer wireless or wired interlinking capabilities as well are remote test/hush wired functionality.

        When used with the 755RB (relay mounting base), the alarm can be used to connect to 3rd party devices such as lights, sirens and home automation systems through a voltage free change-over contact.

        Compatibility

        Is 755PSMA Base plate compatible with the new 755PSMA4 Base Plate?
        Yes the 755PSMA4 is also compatible with the 755PSMA, 755PSMA2 and the PDL SD100

        Important Information
        Queensland Smoke Alarm legislation
        The new QLD smoke alarm legislation start on January 1st 2022, All properties leased or sold in Queensland must be fitted with photoelectric, interconnected smoke alarms in all bedrooms of the home as well as hallways or between areas containing bedrooms and on each storey of the dwelling.

        (755PSMA4)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 5 Year
        Commercial Use: 5 Year
        Warranty Method: Clipsal in home warranty

        Features

        You can mix old with the new too.

        • The Generation 4 surface mount Smoke Alarms are compatible with Clipsal's 755 series mounting bases.
        • This makes retrofitting quick and easy because when they reach their end of life at 10 years, a new base doesn’t have to be installed.
        • Also all Fire Tek alarms, new and old are all fully interconnectable with each other.
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 755PSMA4
        Barcode # 9311554793623
        Package Weight 0.334kg
        Package Width 0.145m
        Package Height 0.053m
        Package Length 0.145m
        TYPE VALUE
        Type Smoke Alarm
        Brand Clipsal by Schneider Electric
        Range Firetek
        Colour White
        Height (mm) 47
        Standards IOS 8201 | AS 3786:2014 | AS/NZS 60950.1 | AS/NZS 60065
        Power Source 240V with 9v back up battery
        Mounting Surface Mount
        Installation Area Indoor
        Diameter (mm) 140
        Box increments (This item is sold individually) 10
        Battery Type 9v
        Reviews
        5.0

        7 Reviews
        5 STARS
        6
        4 STARS
        1
        3 STARS
        0
        2 STARS
        0
        1 STAR
        0

        Write a review

        Andrew McIntosh

        Clipsal 755PSMA4 | Photoelectric Smoke Alarm 240v/ on 19 January 2023

        My Electrician recommend these smoke detectors and he was able to replace my out of date smoke detectors. Very easy change over and working well.

        Kevin Du

        Fast dispatch Great prices on 21 December 2021

        Clipsal Smoke Alarms Good price and quick delivery.

        Peter Harback

        Great for the family on 23 January 2020

        I purchased these to install in the family home - good value

        Bruce a

        Great service clipsal on 30 June 2019

        I give this company 5 stars for great service, follow up As they replace old model before this one and sent out service guy for Clipsal and fitted a new one at no cost So why by any other brand out there, if you get back up service like this

        Steve

        Great value, quick delivery on 17 September 2018

        Well priced quality product and very quick delivery. Purchased as a replacement for an obsolete Clipsal SD100 that was no longer working.

        Gabi

        Photoelectric smoke alarms on 24 July 2018

        I give this company 5 stars for great service, follow up and install instructions. I hope I’m never in a situation where I need to be woken or alerted to a fire but I now feel safe that we have changed to photoelectric. I have already recommended friends to your company and they too are exceptionally happy at the professional service. KEEP UP THE GOOD WORK
