        Clipsal RCBE216/30S | 16AMP RCBO 1P+N 4.5kA Resi MAX
        $27.28 $24.80 ex. GST
        Video

        Learn more by watching our Clipsal RCBE216/30S | 16AMP RCBO 1P+N 4.5kA Resi MAX video.

        Description

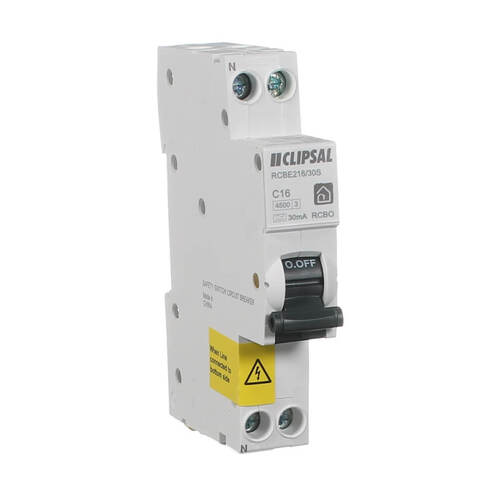

        Clipsal RCBE216/30S | 16AMP RCBO 1P+N 4.5kA Resi MAX

        Clearance  - NO RETURNS

        Clipsal Resi Max RCBO is a Residual Current Breaker with Overcurrent Protection.
        The product was designed to meet new wiring regulations to minimise injuries related to electric shock.
        The slimline device is also commonly referred to as a single pole combo and was developed to maximise space in domestic switchboards and load centres.
        The Clipsal 16Amp Rcbo also saves time and money on installation. As both line and load terminals are non sensitive, rewiring is not required if replacing an alternative brand.

        This is a single pole MCB/RCD combination - It only takes up the space of 1 module in a switchboard or sub board.
        The RCBE216/30S RCBO can be wired from the top or bottom.


        Features:

        • Residual current breaker with overcurrent protection (RCBO)
        • Product brand: Clipsal
        • Poles description: 1P + N
        • Neutral position: Left
        • Number of modules: 1
        • Number of protected poles: 1
        • [In] rated current: 16A
        • Network type: AC
        • Trip unit technology: Thermal-magnetic
        • Curve: C
        • Earth-leakage sensitivity: 30 mA
        • Earth-leakage protection class: Type A
        • Breaking capacity: 4.5 kA Top and bottom, line and load compatible
        • Narrow module design, allows for more RCDs/MCBs to be installed in the one enclosure
        • Two pole safety feature allows switching of both active and neutral contacts
        • Trip free locking device (lockable in 'ON' or 'OFF' position)
        • Compatible with Clipsal switchboards and switchboard accessories
        • AS/NZS 61009 compliance
        • Two–year warranty.

        (RCBE21630S)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU RCBE21630S
        Barcode # 9311554758929
        Shipping Weight 0.1390kg
        Shipping Width 0.074m
        Shipping Height 0.020m
        Shipping Length 0.098m
        Shipping Cubic 0.000145000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max 4
        Rated Current (A) 16
        Height (mm) 92.5
        Width (mm) 18
        Depth (mm) 71.5
        Standards AS/NZS 61009
        Mounting Din Rail
        Voltage (V) 240V
        Number of Poles 1P+N,1
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 4.5kA
        Box increments (This item is sold individually) 18
        Neutral Position Left
        Earth Leakage Sensitivity 30mA
        Earth Leakage Protection Class Type A
        Curve C
        Reviews
        5.0

        1 Reviews
        5 STARS
        1
        4 STARS
        0
        3 STARS
        0
        2 STARS
        0
        1 STAR
        0

        Write a review

        Hank

        Great Value for Money on 19 March 2021

        Clipsal are a great brand and you sell it for such a great price - Onya Sparky Direct
