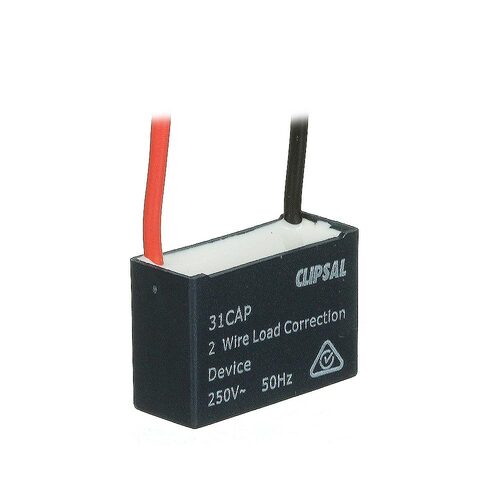

        Clipsal 31CAP | Motion Sensor Load Correction Capacitor
        $21.69 $19.72 ex. GST
        Video

        Learn more by watching our Clipsal 31CAP | Motion Sensor Load Correction Capacitor video.

        Description

        Clipsal 31CAP | Motion Sensor Load Correction Capacitor

        Allows 2 Wire Devices to be Used

        Details

        Every 2-wire product (regardless of manufacturer) has a “minimum load specification” (refer to the Technical Specifications supplied with the product). The product is designed to drive loads greater than that minimum load, otherwise unexpected operation, or even unit failure may result. If you need to drive loads smaller than the specified minimum load, the 31CAP Load Correction Device must be fitted in parallel with that load. A new minimum load specification will apply. Refer to the manufacturer’s instructions (if available) for further details about how small a load can be driven with the 31CAP fitted.

        LOADS WHICH ARE SENSITIVE TO LEAKAGE CURRENTS

        All 2-wire products draw their power through the load. If a 2-wire product is used in conjunction with a load that cannot provide enough continuous load current in the off-state, or the load is sensitive to a high off-state leakage current (for example, relays, contactors, various loads with built-in electronic control, etc.), a 31CAP Load Correction Device must be connected in parallel with the load.

        SMALL (NON-POWER FACTOR CORRECTED) FLUORESCENT LOADS

        When a 31CAP is fitted, some small non-power factor corrected fluorescent loads may be controlled using the Clipsal 2-wire product. Success varies from manufacturer to manufacturer. Testing is recommended before installation. Installation must be compliant with local wiring rules

        Suitability:

        Clipsal Load Correction Capacitor suitable for use with the following 2 Wire products: 750WP, 751, 753, 31VETR, 31VSSR and 56SSR

        (31CAP)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 31CAP
        Barcode # 9311554611293
        Shipping Weight 0.0190kg
        Shipping Width 0.030m
        Shipping Height 0.015m
        Shipping Length 0.085m
        Shipping Cubic 0.000038000m3
        TYPE VALUE
        Type Switches
        Brand Clipsal by Schneider Electric
