    Description

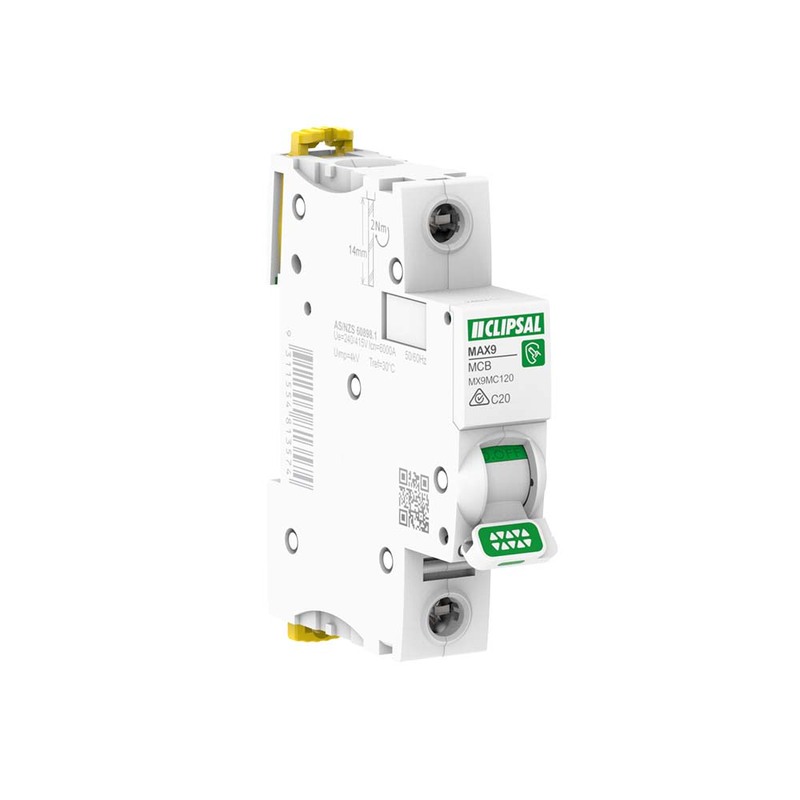

    Clipsal MX9MC120 | 20amp Single Pole Circuit Breaker 6kA | MAX9

    The MAX9 Clipsal MX9MC120 product is a low voltage miniature circuit breaker (MCB).
    The MX9MC120 is a 1P circuit breaker with 1 protected pole and 20A In rated current and C tripping curve.

    Miniature Circuit Breakers

    Features and benefits:

    • Unique new white finish for a fresh modern look.
    • The standard characteristic is C-Curve suits most applications.
    • Complete solution with 1, 2 & 3 pole versions.
    • Option of 1P,2P & 3P 63A MCB with red toggle where MCB is used as the main incomer.
    • Compact standardised and consistent module dimensions.
    • Lift-up terminals. ‘No hot spot’ terminations and all cable strands are locked in.
    • Combination head screws, choice of screwdrivers.
    • MCB mechanism is free tripping and If the switch is held in the ON position, the MCB will still operate.
    • Clipsal MCBs allow line or load cables to be connected at either top or bottom for greater installation flexibility
    • The Icn rated short circuit breaking capacity is up to 6000A at 240/415VAC conforming to AS/NZS 60898 standard.
    • This product is compliant with AS/NZS 60898 standard.
    • This miniature circuit breaker protects the circuit against short circuits and overload currents.
    • The MAX9 is targeted to residential for individual and collective buildings.
    • It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.
    • The Ue operational voltage is 240/415VAC.
    • The Ui rated insulation voltage is 500VAC.
    • The operating frequency is 50Hz or 60Hz.
    • It can be mounted on a DIN rail for modular installation.
    • Its width is 2 pitches of 9mm.
    • The product colour is white (RAL9003).
    • The dimensions are (W) 18mm x (H) 85mm x (D) 75mm.
    • According to AS/NZS 60898 standard, the degree of protection is IP20 and IP40 in the enclosure.
    • The operating temperature is -25-70 øC.
    • The storage temperature is -40-85 øC.

    (MX9MC120)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 7 Year
    Commercial Use: 7 Year
    Warranty Method: Clipsal in home warranty

    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Clipsal by Schneider Electric
    SKU MX9MC120
    Barcode # 9311554813574
    Package Weight 0.106kg
    Package Width 0.085m
    Package Height 0.072m
    Package Length 0.018m
    TYPE VALUE
    Type Circuit Protection
    Brand Clipsal by Schneider Electric
    Range Clipsal - Max9
    Rated Current (A) 20A
    Voltage (V) 240Vac
    Breaking Capacity 6kA
    Curve C-curve
    Poles 1P
    Equivalent Max 4 Reference 4CB120/6
    Equivalent Hager Reference MSN120
