    Learn more by watching our Clipsal RMXPH112 | 12 Module Busbar Comb 1P+N | Pin Type video.

    Description

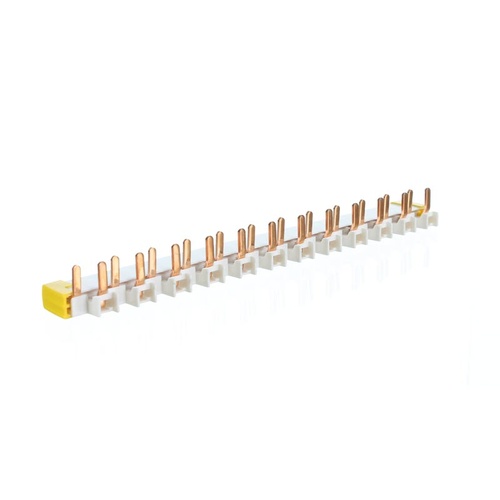

    Clipsal RMXPH112 | 12 Module Busbar Comb 1P+N | Pin Type

    The Clipsal RMXPH112 is a 12 module pin type copper busbar with plastic insulation on the body and the ends. It is designed for 1 phase and neutral connection on the Resi Max Clipsal range. The comb busbar reduces wiring effort, makes for a safer installation as it prevents hot spots and can be installed up to 10 times faster than looping building wire.
    No looping required for neutral and active conductors.
    The teeth on the busbar has a 9mm pitch. Quality construction and tested to perform.

    Features

    • 12 Modules
    • 24 x 9mm pitches
    • Width 216mm
    • Current rated 80A @ 40°
    • Rated Insulation voltage 500V
    • Rated operational voltage 230V
    • SLIM Comb busbar is optimised for the SLIM RCBO
    • Resi MAX comb busbar reduces wiring effort, makes wiring easy and installations time efficient
    • Save valuable switchboard space with the SLIM RCBO, a 2 in 1 RCBO system in a thinner module
    • All devices are reliable and sturdy self-extinguishing material
    • The residential house symbol on all Resi MAX products is now easily identifiable
    • Resi MAX system complies with Australian standards - AS/NZS60898, AS/NZS61008, AS/NZS61009 and AS/NZS 60947-3

    (RMXPH112)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Clipsal in home warranty

    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Clipsal by Schneider Electric
    SKU RMXPH112
    Barcode # 3606480795763
    Package Weight 0.101kg
    Package Width 0.225m
    Package Height 0.019m
    Package Length 0.219m
    TYPE VALUE
    Type Insulated Busbar
    Brand Clipsal by Schneider Electric
    Range Resi Max
    Rated Current (A) 80
    Width (mm) 216
    Material Copper
    Number of Poles 1P+N
    Distance between way 18mm
    9 mm Pitches 24
    Number of ways 12 Ways N + L tooth connectors with 9mm pitch
    Total Number of 18mm Modules 12
