Learn more by watching our Clipsal WHA120-RG | Weatherproof Switch 1 Pole 20 amp video.

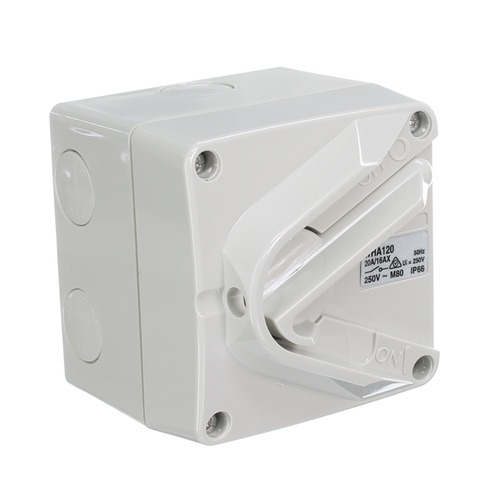

The Clipsal WHA120-RG is a surface-mounted weatherproof isolating switch rated 20 A at 250 V AC. The WHA120-RG switches a single pole, carries an IP66 protection rating, and holds an M80 motor rating. It belongs to the Clipsal Weathershield range and is built to AS 60529, AS/NZS 60947-3 and IEC 60669-1, with approval number S/1 under AS/NZS 3947-3.
Outdoor plant needs a local isolation point that can be reached, locked and proved dead before work starts. Fitting an indoor-pattern switch outside invites water at the housing joint and around the conduit entries. The WHA120-RG seals its base and cover with a co-injection gasket and carries an IP66 protection rating. The housing is impact resistant, so it takes knocks on exposed walls and plant positions.
Cable can be looped in and out from overhead, run in and out from underground, taken straight through the switch, or brought in through the side and out the bottom. The base carries 20 mm and 25 mm entries plus a 25 mm rear knockout. Side entry from a vertical duct is also covered.
The WHA120-RG switches one pole only, so the neutral stays connected and it is not an all-pole isolator. Rated at 250 V AC and 20 A, it does not suit 415 V three-phase circuits or loads above its M80 motor rating. IP66 covers dust and water jets, not immersion, so the housing must not sit below ground.
Verified Sparky Direct customer reviews: Clipsal WHA120-RG | Weatherproof Switch 1 Pole 20 amp (WHA120-RG)
"Excellent product for external use. Ideal rapid shut down in emergency." — Brian
"Good solid isolator. Up to the task required." — Steve
"Great quality box, solid and well finished." — Lachy
(WHA120-RG)
The WHA120-RG is built to AS 60529, AS/NZS 60947-3 and IEC 60669-1. Approval number S/1 applies under AS/NZS 3947-3. The housing carries an IP66 protection rating, which covers dust ingress and powerful water jets.
The WHA120-RG is a surface-mount device fixed by screws, so no recessed wall box is used. The base takes three 20 mm and four 25 mm conduit entries, plus a 25 mm rear knockout for cable coming straight through the wall behind it.
The WHA120-RG switches one pole, rated 20 A at 250 V AC. The active conductor is broken and the neutral stays connected, so the switch is not an all-pole isolator. It does not suit work that needs every conductor broken.
The WHA120-RG is rated 250 V AC with a single pole, so it does not suit 415 V three-phase circuits. Three-phase isolation calls for a device rated for that voltage and pole count.
The base and cover are sealed with a co-injection gasket at the joint between the two sections, and the housing carries an IP66 protection rating. IP66 covers dust and powerful water jets. It does not cover immersion, so the switch must not sit below ground.
Clipsal covers the WHA120-RG for one year domestic use and one year commercial use, starting from the invoice date. The warranty method is Clipsal in-home warranty, so Clipsal handles the claim directly. Warranty is void if the product is not installed by a licensed electrician.
The WHA120-RG has an 8 mm diameter padlocking facility, so a padlock can be fitted to hold the switch in position while work is carried out on the circuit downstream.
The Clipsal by Schneider Electric WHA120-RG is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | WHA120-RG |
| Model # | WHA120-RG |
| Barcode # | 9311554644475 |
| Package Weight | 0.225kg |
| TYPE | VALUE |
|---|---|
| Type | Isolators & Switches Weatherproof |
| Brand | Clipsal by Schneider Electric |
| Range | Weathershield |
| Colour | Chemical Resistant Grey |
| Rated Current (A) | 20 |
| Height (mm) | 84 |
| Width (mm) | 85 |
| Depth (mm) | 85 |
| Number of Switches / Gangs | 1 |
| Protection | IP66 |
| Mounting | Surface |
| Voltage (V) | 250 V |
| Material | PVC |
| Number of Poles | 1 |
| Conduit Entries | 3 x 20mm & 4 x 25mm |
| Motor Rating | M80 |
