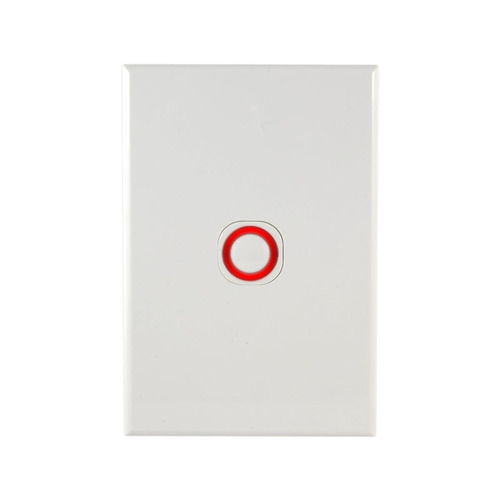

        Electronic Time Delay Switch | 30 sec – 480 Minutes | Red LED Indicator | LSTDER-L

        Description
        Indoor timer-controlled switches are a great way to save time and money. Connected Switchgear’s electronic time delay switches come with a host of useful features for a wider variety of applications. They are great for bathrooms, pantries, stairways and walk-in robes. Our latest 240V AC electronic time delay switch boasts a full 2400W power rating and comes with a unique load current limiting circuitry that prevents overload of capacitance luminaires and inductive loads that would normally reduce the life of electronic switch contacts.

        Connected Switchgear’s new electronic time delay switch is the first time delay switch that can be installed in both 2 and 3-wire configurations.

        • Installed in the basic 2-wire mode without a neutral connection requires a minimum load of just 5W to operate. Choosing to install a 3-wire connection with a neutral terminal will eliminate any load-type restrictions.

        CSG’s electronic time delay can be set to 1 to 3 different program types:

        • TYPE A - Start/Restart Time out period selected will commence countdown when the button in pressed. In the event that the button is pressed again prior to the preset time out, the program will recommence timing again.
        • TYPE B - Start/Stop Time out period selected will commence countdown when the button has is pressed from the ‘OFF’ position. Once the programmed timing is running and the button is pressed again, the programmed timing will stop and power off the switch.
        • TYPE C - Start/Run On/Stop Can only be performed when the Type C Wiring Diagram is installed (Refer to Fig 4) and the Program Type is set to B. In this setting, the device performs a run-on-timer mode. Press the button once the load is turned on for maximum two hours. Pressing the button a second time commences the configured run-on timer setting. Pressing the button a third time turns the load off.
        • Note: Additional switching points cannot be used with Type C operation.

        A total of 8 pre-defined ‘time out’ times ranging from 30 seconds to 480 minutes can be easily selected. Simply remove the front cover plate and select the corresponding toggles. Three function modes are available. These are repeat time out, turn off and run on timer.

        The Red LED Indicator allows for visual identification of the switch in dimly lit areas. They also flash when the time setting has been actuated and the set time has begun the countdown.

        • 240V AC
        • 2400W
        • 30 sec – 480 Minutes
        • White with Red LED Indicator

        Features:

        • 2 Wire with Optional 3 Wire Applications
        • Time Out Range: 30 seconds to 480 minutes
        • 5W Minimum Load in 2 Wire Applications
        • Over Current Protection Circuitry
        • 3 Programs: Timeout, Turn Off, Run On Timer
        • This Timer is NOT a 24 Hr - 7-day timer - for any of the functions to work, the button must be pressed.
        • Easily Configurable Settings By Removing Cover Plate
        • Slim at 6.5mm Thick
        • Contact Status: Normally Open
        • Max Current: 10amp
        • Over-Temp Cutout Current: 12amp
        • Max Load 2400W
        • Red LED

        This time delay switch comes with a 5 Year In House Warranty. That’s right, five years! This is so that you can have peace of mind knowing that if a fault arises within a five-year period, we will cover the cost of replacing the product and its installation by an authorised electrician. In other words, we’ve got your back.

        (LSTDER-L)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from the Invoice Date.

        This product comes with a 5 Year In House Warranty. That’s right, five years! This is so that you can have peace of mind knowing that if a fault arises within a five-year period, we will cover the cost of replacing the product and its installation by an authorised electrician. In other words, we’ve got your back.

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Connected Switch Gear
        SKU LSTDER-L
        Barcode # 9337286102007
        Package Weight 0.030kg
        Package Width 0.130m
        Package Height 0.025m
        Package Length 0.110m
        View Datasheet
        TYPE VALUE
        Type Time Delay
        Brand Connected Switch Gear
