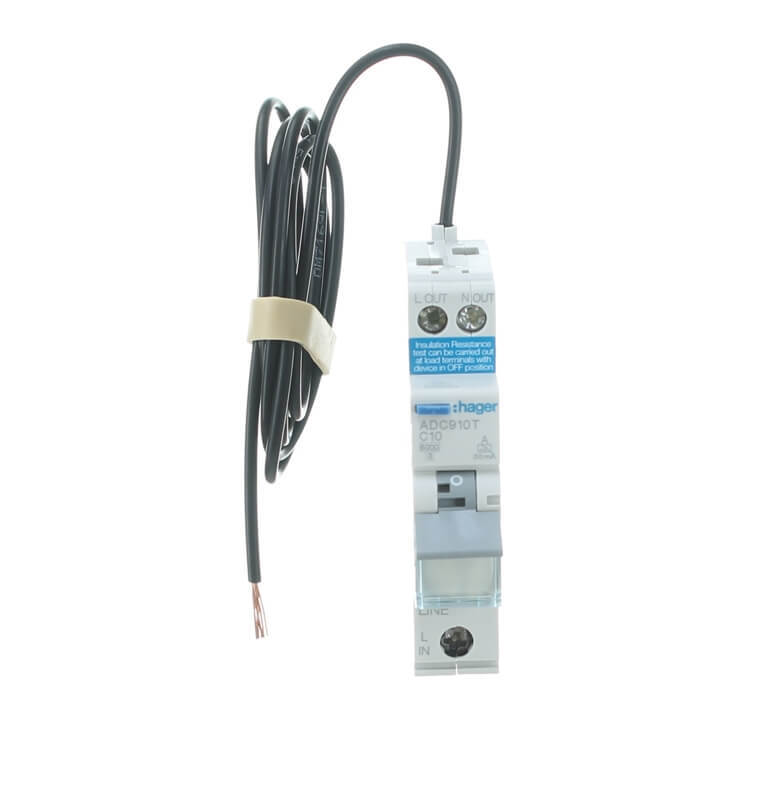

The Hager ADC910T is a Residual Current Breaker with Overcurrent Protection.
The product was designed to meet new wiring regulations to minimise injuries related to electric shock.
The slimline device is also commonly referred to as a single pole combo and was developed to maximise space in domestic switchboards and load centres.
The Hager 10 Amp Rcbo also saves time and money on installation. As both line and load terminals are non sensitive, rewiring is not required if replacing an alternative brand.
This is a single pole MCB/RCD combination - It only takes up the space of 1 module in a switchboard or sub board.
Extra Space when Wiring as compared to the ADC3XXT range: Reduced height allows more wiring space in the enclosure (up to 20% extra in Golf Enclosures)
Insulation Resistance test is faster to perform
Built in fault trip indicator
It's reduced size makes it a perfect replacement for an MCB
Switched Neutral Applications:
Accommodate the requirement for switched neutral applications with a smaller footprint.
Examples include: - Construction sites (temporary boards) - Transportable structures (demountable, caravans, motorhomes etc) - Patient areas - Shows and carnivals - EVCS - Solar (PV) installations
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
|Rated Current (A)||10|
|Earth Leakage Protection Class||Type A|
|Earth Fault Wave Form||Type A|
|Earth Leakage Sensitivity||30mA|
|IP Rating||IP20 ( IP40 Enclosed )|
|Box increments (This item is sold individually)||54|
|Overcurrent trip characteristic||C Curve|
|Number of Poles||1P+N|
