        HAGER MSN220 | 20Amp Double Pole 6kA Circuit Breaker
        $40.65 $36.95 ex. GST
        Video

        Learn more by watching our HAGER MSN220 | 20Amp Double Pole 6kA Circuit Breaker video.

        Description

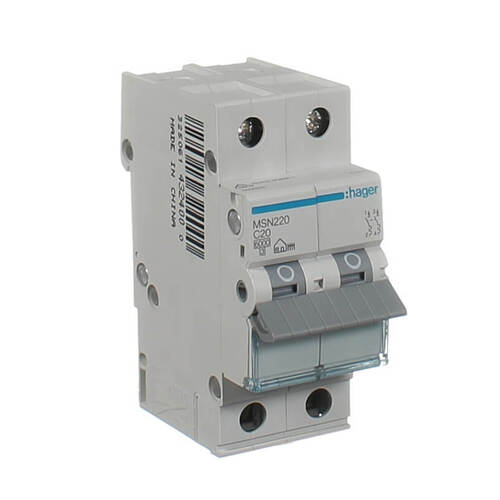

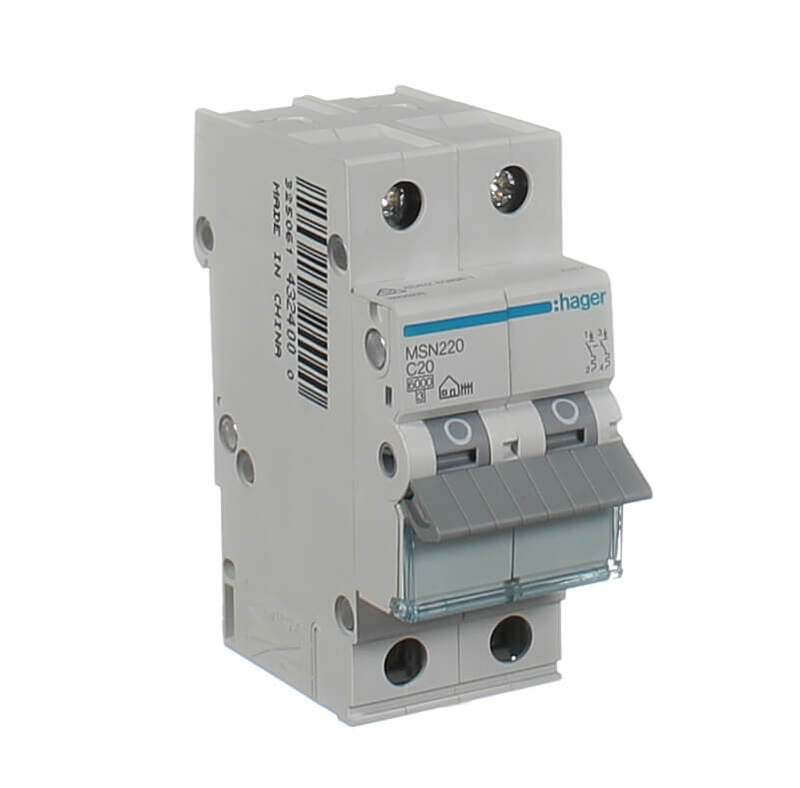

        HAGER MSN220 | 20Amp Double Pole 6kA Circuit Breaker

        The Hager MSN220 is a double pole circuit breaker which protects and control circuits against overloads and short-circuits. The MSN220 circuit breaker is rated at 6kA and is suitable for commercial and domestic applications.

        Features

        • 20 Amp
        • Double Pole
        • 6KA
        • Circuit Breaker
        • Number of modules: 2
        • Rated short circuit breaking capacity: 6 kA
        • Curve: C
        • Frequency: 50/60 Hz
        • Rated insulation voltage: 500 V
        • Operating temperature: -25 to 60 °C
        • Electric endurance in number of cycles: 4000
        • Number of mechanical operations: 20000
        • Top and bottom screw terminals connection capacity with rigid cable: 1/25 mm²
        • Top and bottom screw terminals connection capacity with flexible cable: 1/16 mm²
        • Tightening torque: 2,8Nm
        • Height of installed product: 83 mm
        • Width of installed product: 35 mm
        • Depth of installed product: 70 mm

        (MSN220)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU MSN220
        Barcode # 3250614324000
        Shipping Weight 0.2280kg
        Shipping Width 0.070m
        Shipping Height 0.035m
        Shipping Length 0.080m
        Shipping Cubic 0.000196000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 20
        Height (mm) 83
        Width (mm) 37
        Depth (mm) 70
        Standards AS/NZS 60898
        Mounting Din Rail
        Curve C
        Number of Poles 2
        Voltage (V) 400
        Breaking Capacity 6kA
        IP Rating IP20 ( IP40 Enclosed )
