        Cabac - Digital 2 wire Premium Push Button Digital Dimmer HNS616DT
        $77.39 $70.35 ex. GST
        Video

        Learn more by watching our Cabac - Digital 2 wire Premium Push Button Digital Dimmer HNS616DT video.

        Description

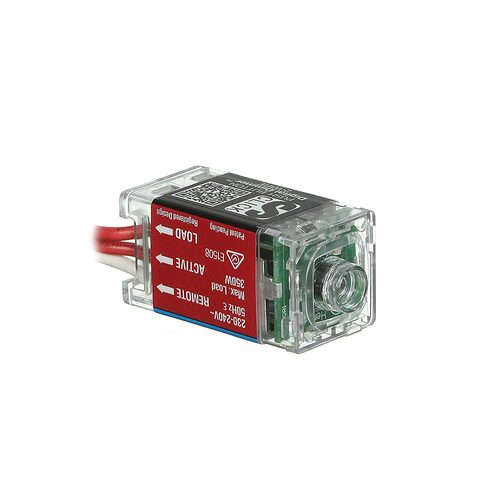

        Cabac - Digital 2 wire Premium Push Button Digital Dimmer HNS616DT

        S-Premium Push Button Digital Dimmer and ON/OFF Switch
        The S-Click HNS616DT is a push button digital dimmer and ON/OFF switch in one. Our rugged design features improved over current, over voltage and over temperature protection plus patented ripple tone rejection. Possible applications include dimmable LED & CFL lighting and multiway dimming.

        The push button dimmer range is incredibly easy to use. A quick tap will turn lights ON or OFF at the last set brightness. A long press ramps brightness up or down, alternating with each press until the desired brightness is reached.

        The HNS616DT is suitable for most dimmable lights, and is specifically designed for dimming LED lighting. The unit delivers deep dimming to zero on most lamps and multiway dimming is enabled using our HNS026RB Remote Button (sold separately).

        Bonus Feature: Timed Dimming
        A double tap while lighting is ON will activate timed dimming, a convenient bonus feature that gradually dims lighting over 30 minutes before turning off. Conversely, a double tap when lighting is off will gradually increase brightness to full over 30 minutes. The LED indicator will blink every 5 seconds during timed dimming. The countdown can be cancelled at any time with a sustained 2-second press of the button.

        Operating Conditions

        • Operating Voltage: 230-240Va.c. 50Hz
        • Operating Temperature: 0 to +50 degrees Celsius
        • Certified Standard: AS/NZS 60669.2.1, CISPR15
        • Maximum Load: 350W
        • Minimum Load: 1W
        • Maximum Current capacity: 1.5A
        • Note: Operation at temperature, voltage or load outside of the specifications may cause permanent damage to the unit.

        NOT SUITABLE FOR FANS AND MOTORS

        The HNS616DT is to be installed as part of a fixed wire electrical installation. By law such installations must be made by an electrical contractor or similarly qualified person. No more than one dimmer can be connected to the same lamp. For operating instructions, important safety warnings and other information, refer to the User Manual.

        (HNS616DT)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand CABAC
        SKU HNS616DT
        Barcode # 9318674160731
        Shipping Weight 0.0360kg
        Shipping Width 0.035m
        Shipping Height 0.040m
        Shipping Length 0.070m
        Shipping Cubic 0.000098000m3
        TYPE VALUE
        Type Switches
