        Hager EHN011 | Single pole timer 24 hour 16(4)amp Analogue 200hr Battery Backup (EH011)
        $90.42 $82.20 ex. GST

        Learn how to program the Hager Timer EHN011

        Hager Timer EHN011

        Follow this quick 4-step tutorial to learn how to set up the EHN011 - 1 channel daily time switch for your business or Home.

        • 00:20 - 01 Setting OFF time
        • 01:02 - 02 Setting ON time
        • 01:33 - 03 Turn on auto mode
        • 01:49 - 04 Set current time

        Additional related video.

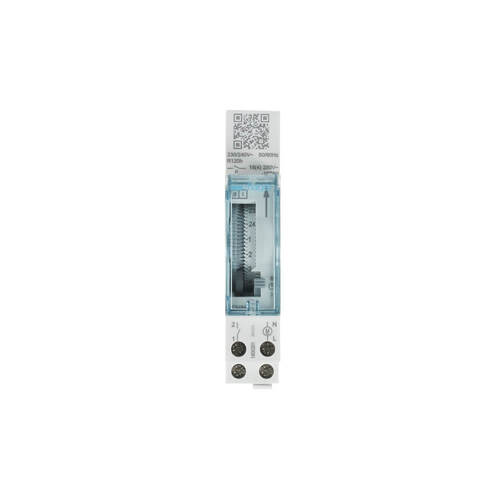

        Hager EHN011 | Single pole timer 24 hour 16(4)amp Analogue 200hr Battery Backup

        The Hager EHN011 single pole timer can be set to operate 96 different steps in a 24 hour period. It is rated at 16amps AC1 max power with an incandescent lamp is 900W. Ideal for controlling lights, small fountain pumps, LED.

        The EH011 has battery back up so if the power goes off the timer will keep working for approximately 200hrs - so you will not need to go back and reset the clock every time the power goes out.

        If you are controlling a motor or element, you must use a contactor otherwise you may burn the timer out.


        • Summer / Winter time change manual
        • Shortest switching time 15 mn
        • Program cycles Programme cycle: 24 hours
        • Programming cycle 24H
        • Type of programming analog
        • Din Rail Mounting

        Battery Back Up

        • 200hr

        Loads the timer can control without a contactor

        • Fluorescent bulbs control
          • Compact fluorescent lamps max. 100 W
        • Incandescent bulbs control:
          • 230 V incandescent lamps and halogen lamps: max. 900 W

        You may need to install a contactor so you do not burn out the timer especially if you are controlling motors or elements.



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct


        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU EHN011
        Barcode # 3250617201063
        Shipping Weight 0.0890kg
        Shipping Width 0.095m
        Shipping Height 0.020m
        Shipping Length 0.080m
        Shipping Cubic 0.000152000m3
        TYPE VALUE
        Type Timer
        Brand Hager Electrical
        Rated Current (A) 16A (AC1)
        Height (mm) 92
        Width (mm) 18
        Depth (mm) 65
        Protection IP20
        Mounting Din Rail
        Programming Type Analog
        Battery Backup Yes 200Hrs
        Voltage (V) 240
        Contact Configuration 1 x N/O
        Program Time 24 Hours
        Number of Modules 1
