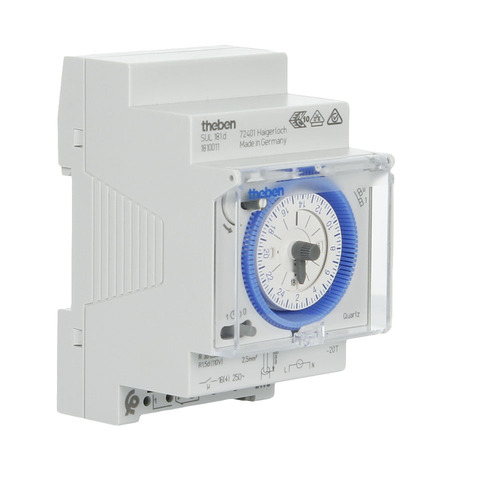

        Theben SUL181d | Rail mounted 24 hour timer, segments, power reserve, 3 module
        $98.94 $89.95 ex. GST
        Video

        Learn more by watching our Theben SUL181d | Rail mounted 24 hour timer, segments, power reserve, 3 module video.

        Description

        Theben SUL181d |  Rail mounted 24 hour timer, segments, power reserve, 3 module

        If you are controlling a motor or element, you must use a contactor otherwise you may burn the timer out.

        Features

        • Analogue time switch
        • 1 channel
        • Daily program
        • With power reserve (NiMH rechargeable battery)
        • 96 switching segments
        • Quartz controlled
        • Shortest switching time: 15 minutes
        • Clock hands for time display and in addition 12/24 hour recognition
        • Simple summer/winter time correction
        • Time can be changed clockwise or anti-clockwise
        • DuoFix spring terminals
        • For 2 conductors each
        • Wire or strand (with or without wire end sleeve)
        • Wire diameter: 0.5 - 2.5 mm²
        • Button for releasing plug-in connection
        • Switching preselection
        • Manual switch with 3 positions: Continuous ON/AUTO/continuous OFF
        • Switching status display
        • Made in Germany

        You may need to install a contactor so you do not burn out the timer especially if you are controlling motors or elements.

        (SUL181d)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Operating voltage 110 – 230 V AC
        Frequency 50 – 60 Hz
        Number of channels 1
        Width 3 modules
        Installation type DIN rail
        Type of connection DuoFix spring terminals
        Drive Quartz-controlled stepper motor
        Program Daily program
        Power reserve 3 days approx. 1.5 days at 110 V
        Switching capacity at 250 V AC, cos φ = 1 16 A
        Switching capacity at 250 V AC, cos φ = 0,6 4 A
        Incandescent/halogen lamp load 1100 W
        LED lamp < 2 W 20 W
        LED lamp 2-8 W 180 W
        LED lamp > 8 W 180 W
        Shortest switching times 15 min
        Programmable every 15 min
        Time accuracy at 25 °C ≤ ± 1 s/day (quartz)
        Type of contact Changeover contact
        Switching output Potential-free and phase-independent
        Number of switching segments 96
        Stand-by consumption ~0.5 W
        Capacity loss max. 1.3 W
        Test approval VDE
        Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
        Type of protection IP 20
        Protection class II according to EN 60 730-1
        Ambient temperature -20°C ... 55°C
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Theben
        SKU SUL181d
        Barcode # 4003468182383
        Shipping Weight 0.1500kg
        Shipping Width 0.064m
        Shipping Height 0.078m
        Shipping Length 0.105m
        Shipping Cubic 0.000524000m3
        TYPE VALUE
        Type Timer
        Brand Theben
        Rated Current (A) 16A (AC1)
        Height (mm) 78
        Width (mm) 64
        Length (mm) 105
        Protection IP20
        Mounting Din Rail
        Program Time 24 Hours
        Number of Modules 3
        Programming Type Analog
        Battery Backup 3 Days
        Voltage (V) 240
