        Learn more by watching our MMDMRT | Diginet LEDsmart+ Integrally Switched Rotary Dimmer | Diginet video.

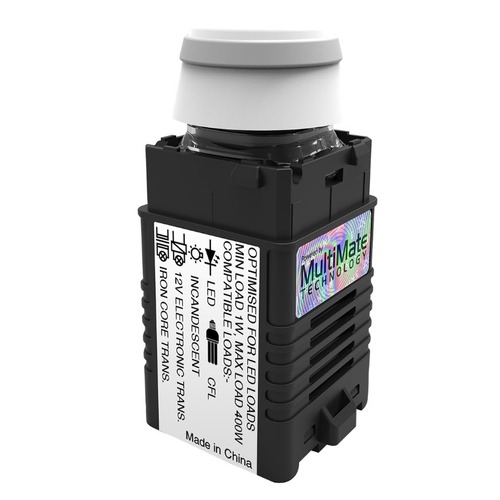

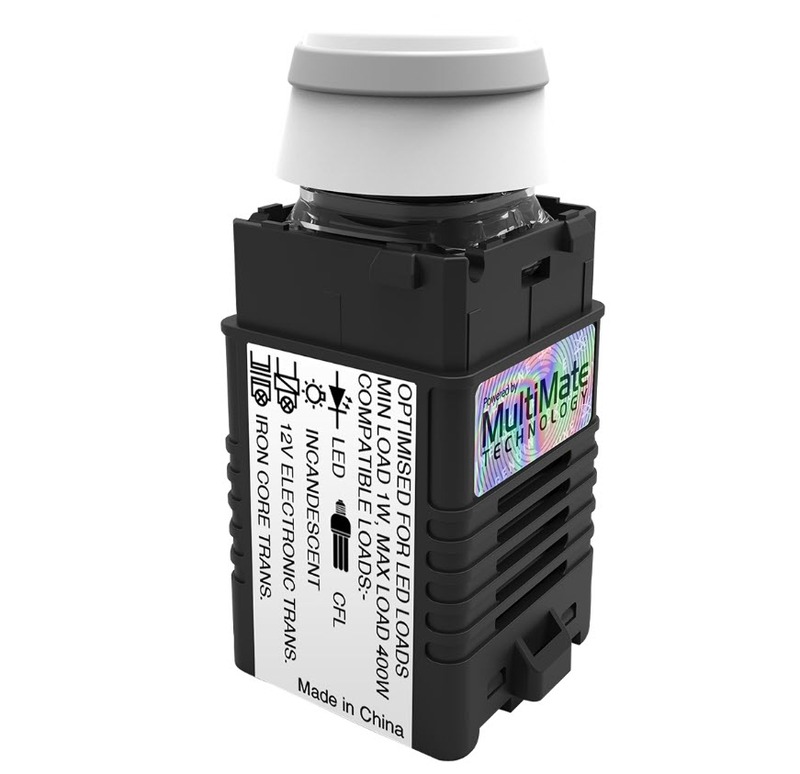

        Diginet | LEDsmart+ Integrally Switched Rotary Dimmer 400W | White

        The Diginet MMDMRT is a 400W rotary dimmer rated 220–240V AC, designed to deliver optimised dimming for LED loads whilst serving as an integrated on/off switch. The MMDMRT features two-wire phase control, eliminating the need for a separate switch, and incorporates MultiMate™ technology for simple multi-way control by connecting parallel dimmers with no additional wiring. Complies with AS/NZS standards for lighting control installation.

        Electricians fitting LED downlights and dimmable fittings often encounter compatibility frustrations with conventional switch-and-dimmer combinations—staging, flicker, and the space demands of multiple wall plates. The MMDMRT removes this friction by building the dimmer and on/off switch into a single rotary unit. Licensed sparkies specify it on retrofit jobs where space is tight and on new builds where LED lighting is the default. The illuminated rotary dial (in white with interchangeable colour rings) eliminates the middle-of-the-night hunt for the switch in dark rooms, a detail renovators and property managers notice.

        Across residential and commercial installations, the MMDMRT earns preference as a versatile dimmer that works smoothly with most LED drivers, incandescent, halogen, and CFL loads. The quick-flick feature jumps brightness instantly to maximum or minimum; the double-tap wake-up mode fades lights up over 30 minutes, and kids' bedroom mode fades them down, adding value on family jobs. Programmable minimum level, kickstart, and fall-back LED indicator level mean the dimmer adapts to individual circuit behaviour without field adjustment complexity.

        Features

        • Integrated dimmer and switch — rotary knob controls brightness from 0–100% and includes a push-on/off function, eliminating the need for a separate switch mechanism.
        • MultiMate™ technology — two or more MMDMRT dimmers wire in parallel to achieve two-way, three-way, or multi-way control with no extra strapper wires or changeover switches required.
        • Rated 400W maximum load — handles dimmable LED drivers, electronic transformers, toroidal transformers, incandescent, and dimmable CFLs, with de-rating applied in multi-gang wall plates.
        • Two-wire connection only — active and switched live only; no neutral wire needed, simplifying retrofit installations where neutral is unavailable at the switch location.
        • Illuminated rotary dial — white LED halo with interchangeable colour rings (blue, green, orange, clear) locates the switch in dark rooms and works as a soft night light.
        • Quick-flick dimming — rotate the dial quickly to jump instantly to maximum brightness or minimum preset level without passing through intermediate steps.
        • Wake-up and bedtime modes — double-tap when off to fade lights up over 30 minutes; double-tap when on to dim down over 30 minutes for sleep routines and morning routines.
        • Programmable functions — minimum brightness level, maximum level, kickstart, and LED indicator fall-back level can be set to match circuit behaviour and user preference.
        • 1W minimum load — operates reliably on very low LED loads; no flicker or dropout at minimum brightness on most LED drivers.
        • Suitable for retrofit and new builds — fits standard wall boxes (16mm or 20mm depth) and works with existing strapper wires on two-way installations; no rewiring needed.
        • Rotation angle constraint — not rated for outdoor, wet, or damp exposed locations; internal mechanism is designed for dry wall mounting only.

        Where to use

        • Residential bedrooms and living areas — rotary dimmer creates mood lighting for evening relaxation and provides on/off switching without a separate mechanism, ideal for retrofit light fittings and new LED installations.
        • Kitchen and dining spaces — 400W capacity handles multiple downlights or LED pendants; multi-way control via parallel dimmers suits open-plan layouts where switch access is needed from multiple points.
        • Hallways and stairwells — integrated switch-and-dimmer eliminates the need for separate rocker switches or intermediate switch plates, saving wall space and installation time.
        • Multi-gang wall plates — pairs or triples of dimmers install side-by-side in standard 16mm wall boxes; de-rating table applies when multiple units share a plate.
        • Retrofit LED lighting upgrades — existing two-way switching with strapper wires can be replaced with parallel MMDMRT dimmers without rewiring; original strapper cables are reused.
        • Property renovations and new builds — specifying LED dimming upfront means the MMDMRT integrates into the design; no separate dimmer base plates or switch mechanisms to coordinate.

        The Diginet MMDMRT is not rated for external walls, wet areas, splash zones, or damp exposed locations. Do not install in bathrooms, laundries, outdoor light switches, or areas subject to weather or high humidity. The dimmer is an indoor interior wall device only.

        Verified Sparky Direct customer reviews: Diginet LEDsmart+ Integrally Switched Rotary Dimmer (MMDMRT)

        "Works smoothly and looks great on a Saturn plate using the adaptor kit." — Jeff

        "Perfect dimming with no flicker, great doubles as a switch." — Spark

        "Very happy with product, 2 in 1 switch and dimmer." — Mng

        (MMDMRT)

        Installation of the MMDMRT must be carried out by a licensed electrician. The dimmer connects to active and switched-live wires in a standard wall box; it requires safe isolation and correct polarity confirmation before connection. Incorrect wiring can cause electric shock or fire risk.

        Yes, the MMDMRT is ideal for multi-way control. Simply connect two or more MMDMRT dimmers in parallel at the light fitting. No additional wires, strapper cables, or intermediate switches are required. This works for one-way, two-way, three-way, and multi-way setups.

        The MMDMRT integrates both dimming and on/off switching into one rotary unit, eliminating the need for a separate switch. The illuminated dial also serves as a night light, making it easy to find in the dark. MultiMate™ technology allows multiple dimmers to connect in parallel with no extra wiring, unlike traditional switch-and-strapper setups.

        The MMDMRT carries a two-year manufacturer's warranty against manufacturing defects from the invoice date. Warranty covers defective components and labour for replacement or repair. Warranty is void if the dimmer is installed incorrectly, used on incompatible loads, or physically damaged. Contact Diginet technical support on 1300 95 3244 for warranty claims.

        The MMDMRT works with most dimmable LED drivers rated up to 400W, incandescent, halogen, and dimmable CFLs. However, some non-dimmable LED lights or drivers will not work. Check that your LED fittings and drivers carry a "dimmable" label before purchase. If flickering occurs, it may indicate a non-compatible load.

        The MMDMRT allows you to set a minimum brightness level so the lights never fade completely off when dimmed fully. This prevents flicker and dark-flashing on sensitive LED circuits. The setting is programmed via a simple procedure on installation and suits individual circuit behaviour and driver compatibility.

        The Diginet MMDMRT is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand DiginetControl Systems
        SKU MMDMRT
        Barcode # 9319250620038
        Package Weight 0.066kg
        View Datasheet
        TYPE VALUE
        Type Dimmer
        Brand Diginet
        Colour White
        Height (mm) 52
        Width (mm) 24
        Wattage (W) 400
        Switch Type Rotary + on/off switch + Multi Control
        Dimming Universal
