Description:

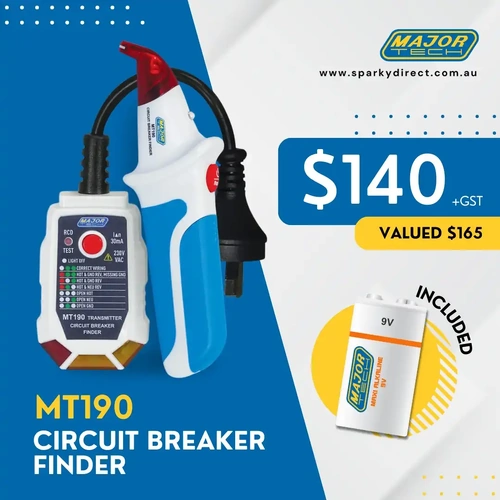

The MT190 is a Circuit Breaker Finder system that operates on energized circuits and consists of a Transmitter, which plugs into the socket on the circuit you wish to isolate and a Receiver Scanner.
The Transmitter sends signals along the cable to the distribution board, the operator simply runs the Receiver Scanner along with the circuit breakers or fuses, and the scanner will automatically identify the correct breaker by means of a green LED and a continuous buzzer tone.
An added feature is the convenient chart printed on the Transmitter that helps determine the wiring condition of the socket outlet, based on the LED lights results.
Conditions indicated are Correct Wiring, Open Ground, Reverse Polarity, Open Live, Open Neutral and reverse Live and Ground.
There is also a 30mA RCD test function built into the MT190 Transmitter.
Features:
(MT190)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
Function | Range |
MCB/Fuse Finding | Identifies MCB or fuse on live circuits |
Transmitter Functions | Connect to mains automatically starts |
Correct Wiring Indication | LED indication green and red |
RCD 30mA Test | Yes |
Frequency Range | 50Hz |
Display | LED indication on transmitter |
Receiver Functions | Three functions, On/Reset/Off |
Beeper | Steady beep-testing red LED, continuous beep-strong signal Green LED |
Display | LED indication on transmitter |
Enclosure | Moulded casing |
Low Battery Indication | Flashing |
Battery | 9V |
Weight Receiver | 148g |
Weight Transmitter | 140g |
Dimensions Receiver | 196 x 55 x 36mm |
Dimensions Transmitter | 82 x 51 x 33mm |
Safety Specs | CAT III 600V |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MT190 |
Barcode # | 6008229036071 |
Package Weight | 0.379kg |
Package Width | 0.060m |
Package Height | 0.210m |
Package Length | 0.130m |
TYPE | VALUE |
---|---|
Type | Circuit Breaker Finder |
Brand | Major Tech |
Battery | 9V |
Receiver Dimensions | 196 x 55 x 36mm |
Transmitter Dimension | 82 x 51 x 33mm |
Frequency Range | 50Hz |
