Learn more by watching our Major Tech MT476 | 690V AC/DC Voltage Tester video.
Additional related video.
Description:

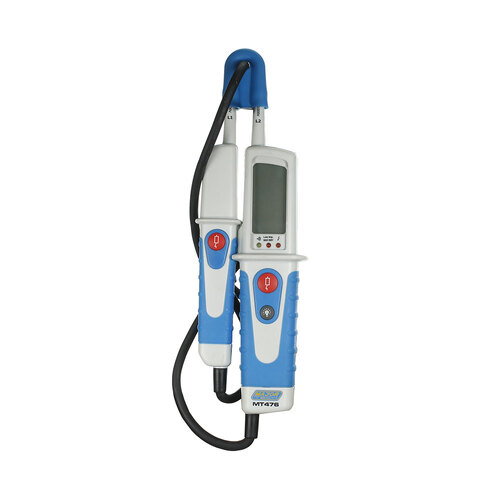

The MT476 is IP64 and is a useful tester designed to meet electrician’s requirements for a multitude of applications. The tester operates without a switch and by simply placing the probes onto the circuit under test, the meter automatically turns on and displays the voltage on a 2000 count display and quick indication can be viewed on the analogue bargraph. The MT476 incorporates a Low Impedance Test, which induces a basic load of approximately 6kΩ at 690 volts. The voltage tester can show the direction of the rotating field with three-phase systems. The applied voltage and the rotating field direction is shown on the LCD display, with corresponding rotating field direction L = anticlockwise and R = clockwise. The tester can be used as a Single Pole phase tester and measure continuity up to 200kΩ. The MT476 meets the CAT IV 600V and CAT III 1000V safety standards.
Features:
(MT476)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range | Resolution | Accuracy |
DC Voltage | 6 – 690V | 1V | ±(1.0% + 3 Digits) |
AC Voltage | 6 – 690V | 1V | ±(1.5% + 5 Digits) |
Rotary Field | 100 – 400V | ||
RCD Test | 10mA/30mA | ||
Continuity | Yes | ||
AC Bandwidth | 50Hz – 60Hz | ||
Digital Display | 2000 count | ||
Bargraph | Yes | ||
Polarity Indication | Yes | ||
Overrange Indication | Yes | ||
Low Input Impedance | <6kΩ | ||
Flashlight | Yes | ||
Load Test with Vibration | Load Test with Vibration | ||
Enclosure | Double injection IP64 | ||
Low Battery Indication | Yes | ||
Batteries | 2 x AAA | ||
Weight | 255g | ||
Dimensions | 240 x 78 x 40mm | ||
Safety Specs | IEC61010-1 CAT IV 600V |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MT476 |
Barcode # | 6008229006333 |
Package Weight | 0.354kg |
Package Width | 0.300m |
Package Height | 0.060m |
Package Length | 0.090m |
TYPE | VALUE |
---|---|
Type | Voltage Tester |
Brand | Major Tech |
Dimensions | 240 x 78 x 40mm |
Batteries | 2 x AAA |
Safety Specs | IEC61010-1 CAT IV 600V |
DC Voltage | 6V-690V |
