        Major Tech MT870 | 600V AC/DC True RMS Multimeter
        $57.20 $52.00 ex. GST
        Video

        Learn more by watching our Major Tech MT870 | 600V AC/DC True RMS Multimeter video.

        Description

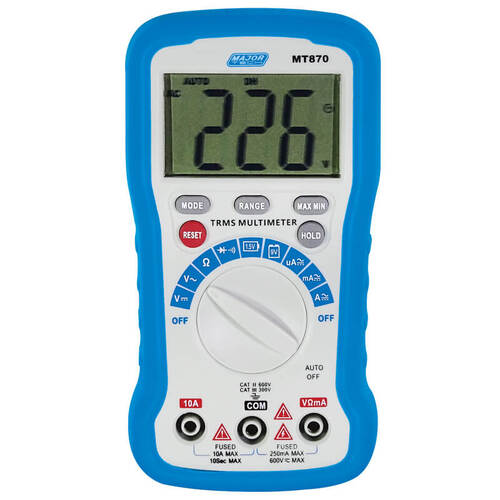

        Major Tech MT870 | 600V AC/DC True RMS Multimeter

        Description:

        The MT870 is a compact True RMS multimeter supplied with a rubber holster designed to be robust and drop proof. The meter has a 2000 count large easy to read display and is an auto ranging multimeter with the option of manual override. Measuring functions include AC and DC voltage, AC and DC current, resistance, continuity buzzer and diode test range. The AC and DC micro Amp ranges is suited for electronic measurements. The MT870 also offers the added convenience of 1.5V and 9V battery tests and a tilt stand. This meter meets the International Standard IEC 61010-1 CAT III 300V. The meter offers excellent performance and is ideal as a handy multimeter for electronic technicians and electricians, alarm installers and students studying electronics.

        Features:

        • CAT III 300V and CAT II 600V
        • Large 2000 count LCD display
        • Measures AC and DC voltage up to 600V
        • Measures AC and DC current up to 10A
        • Battery test for 1.5V and 9V batteries
        • Continuity Buzzer & Diode Test
        • Min, Max and Data Hold Function
        • Relative Mode
        • Auto Power Off
        • Tilt Stand

        (MT870)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features

        Specifications

        Function Range Resolution Accuracy
        DC Voltage 200mV – 600V 0.1mV ±(0.5% + 2 Digits)
        AC Voltage 2V – 600V 1mV ±(0.8% + 3 Digits)
        DC Current 200μA – 10A 0.1μA ±(1.2% + 2 Digits)
        AC Current 200μA – 10A 0.1μA ±(1.5% + 3 Digits)
        Resistance 200Ω – 20MΩ 0.1Ω ±(1.0% + 2 Digits)
        True RMS Measurements Yes
        AC Bandwidth 40Hz to 2KHz
        Digital Display 2000
        Continuity Yes
        Diode Test Yes
        Overrange Indication Yes
        Battery Test 1.5V & 9V
        Input Impedance 10MΩ VDC & 10MΩ VAC
        Min Max Yes
        Data Hold Yes
        Enclosure Rubber holster
        Low Battery Indication Yes
        Batteries 2 x AA
        Dimensions 150 x 100 x 36mm
        Safety Specs IEC61010-1 CAT II 600V
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT870
        Barcode # 6008229027574
        Shipping Weight 0.3060kg
        Shipping Width 0.060m
        Shipping Height 0.180m
        Shipping Length 0.110m
        Shipping Cubic 0.000510000m3
        TYPE VALUE
        Type Compact Multimeter
        Brand Major Tech
        Height (mm) 34
        Width (mm) 100
        Length (mm) 150
