        Major Tech MT987 | Micro-Ohmmeter DC resistance Tester | 20A
        $3,294.50 $2,995.00 ex. GST
        Video

        Learn more by watching our Major Tech MT987 | Micro-Ohmmeter DC resistance Tester | 20A video.

        Description

        Major Tech MT987 | Micro-Ohmmeter DC resistance Tester | 20A

        The Major Tech MT987 is a high-precision 20A Micro-Ohmmeter designed for professional electricians. It is also known as a transformer DC resistance tester, DC resistance quick tester, and earth continuity tester. This device uses advanced microprocessor technology to ensure safe, accurate, and reliable testing.

        The MT987 measures the resistance of transformer windings, earth conductor continuity, and wire resistance of cables, switches, connectors, relays, coils, motors, equipment casings, and more. It is equipped with a 108mm x 65mm true-colour touch screen and offers a maximum resolution of 0.1µΩ.

        The tester includes features like a built-in printer, data storage for 800 sets, USB and Bluetooth connectivity(Bluetooth allows connection to Android phones), and a reminder for discharge probes on the LCD. The MT987 is powered by a 14.6V 12000mAh rechargeable lithium battery and is ideal for use in various industrial applications.

        Micro-Ohmmeter DC resistance Tester Features:

        • High Precision Measurement: Maximum resolution of 0.1µΩ with 4-wire test method.
        • User-Friendly Interface: 108mm x 65mm true colour touch screen for easy operation.
        • Built-in Printer: Allows immediate printing of test results for reference.
        • Data Storage: Stores up to 800 sets of data with a USB interface for computer linking.
        • Bluetooth Connectivity: Connects to Android devices for easy data transfer and monitoring.
        • Rechargeable Battery: Built-in 14.6V 12000mAh lithium battery for extended use.
        • Versatile Applications: Suitable for measuring resistance in transformer windings, cables, connectors, relays, motors, and more.
        • Robust Design: Overload prevention function and large capacity storage.

        MT987 FAQ:

        Q: What is the maximum resolution of the Major Tech MT987?
        A: The maximum resolution is 0.1µΩ.

        Q: How many sets of data can the MT987 store?
        A: The MT987 can store up to 800 sets of data.

        Q: Does the MT987 have a built-in printer?
        A: Yes, the MT987 includes a built-in printer for immediate printing of test results.

        Q: What types of devices can the MT987 test?
        A: The MT987 can test transformer windings, earth conductor continuity, wire resistance of cables, switches, connectors, relays, coils, motors, and more.

        (MT987)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Range Current Accuracy
        Resistance10.0µΩ – 1000.0µΩ 10.0µΩ – 1000.0µΩ 20A ±(0.2% FS ±10)
        1.000mΩ – 10.000mΩ 20A ±(0.2% FS ±10)
        10.00mΩ – 100.00mΩ 10A ±(0.2% FS ±10)
        1.000Ω – 10.00Ω 1A ±(0.2% FS ±10)
        10.0Ω – 100.00Ω 0.1A ±(0.2% FS ±10)
        100.0Ω – 1000.0Ω 10mA ±(0.2% FS ±10)
        1.000kΩ – 10.00kΩ 1mA ±(0.4% FS ±30)
        10.00kΩ – 100.00kΩ 1mA ±(0.4% FS ±30)
        100.0kΩ – 1000.0kΩ 1mA ±(1% FS ±30)
        Temperature -10°C to 60°C ±1.0°C
        Detection Method 4-Wire test
        Shutdown Auto: 5, 10, 15, 20, 25, 30min / Optional OFF
        Measuring Time About 2 seconds
        Batteries 3.7V Lithium - Rechargeable Batteries
        Dimensions 277 x 277 x 153mm
        weight 3.1kg
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT987
        Barcode # 6008229041297
        Shipping Weight 7.7600kg
        Shipping Width 0.475m
        Shipping Height 0.400m
        Shipping Length 0.240m
        Shipping Cubic 0.045600000m3
        TYPE VALUE
        Type Micro-Ohmmeter
        Type Transformer DC Resistance Tester
        Brand Major Tech
        Safety Standard IEC 61010-1 CAT III 300V

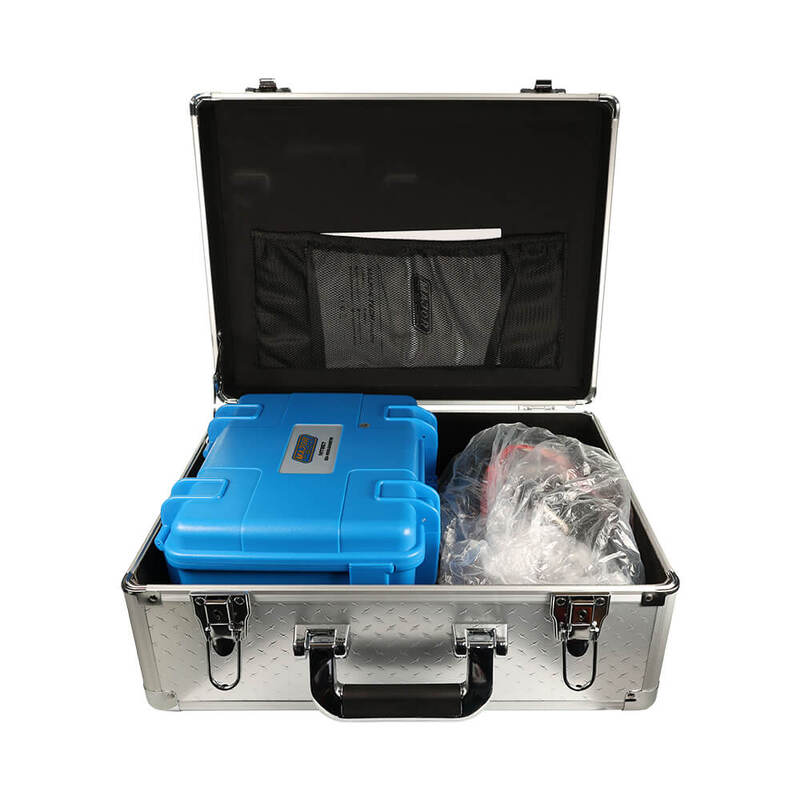

        Included Carry Case, Carry Straps, Tester, Testing Cable, Temperature Probe, USB, Data Line, Charger
        Resistance 10.0µΩ - 1000.0kΩ
