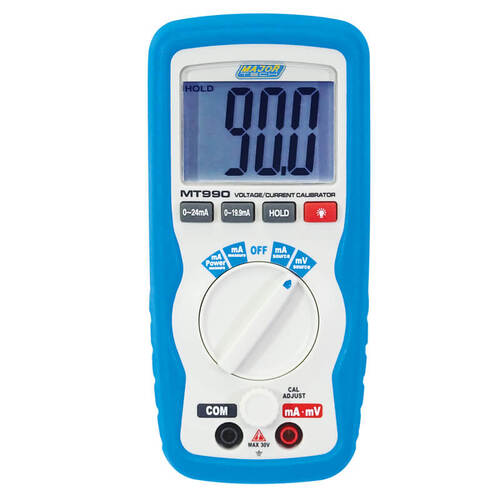

    Major Tech MT990 | Process Current Calibrator

    Description:

    The MT990 is a portable instrument used for calibrating process devices and measuring process signals, as well as general purpose signal injection applications. This meter has four modes to provide the quality and accuracy of a bench top calibrator; these include a precision current source up to 24mA, current measurement of current signal, DC mV source and the power and measurement of a two-wire loop.
    The MT990 ensures correct measurements on mass, volume, length, electricity, flow, pressure, heat and thermal energy. Saves you money by reducing waste due to accurate measurements. Enables smooth production processes.

    Features:

    • Measuring process signals
    • General purpose signal injection applications
    • Current loop calibrator
    • Load output 0 – 24mA
    • Calibrator drives loads to 500Ω
    • Adjustable – 199.9mV to 199.9mV DCV source
    • Powers or measures a two wire current loop
    • 4 Functions – current source, current measurement, DC mV source, power and current measurement of two wire loop
    • 1999 Count LCD Resolution

    (MT990)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 2 Year
    Commercial Use: 2 Year
    Warranty Method: Return to Sparky Direct

    All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

    How to Lodge a Warranty Claim

    To initiate a warranty claim:

    1. Return to Sparky Direct
      Ship the meter back to Sparky Direct along with:

      • A copy of your proof of purchase
      • A brief description of the issue
      • Your contact details

      Please ensure the unit is securely packaged to prevent damage in transit.

    2. Forwarded for Assessment
      Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

    Assessment Process

    Major Tech’s service lab will assess the returned unit to determine:

    • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
    • If the issue is the result of user error or no fault is found.

    Outcomes

    • If approved under warranty: The product will be repaired or replaced at no cost to you.
    • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.

    Important Notes

    As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

    Please allow up to 7-14 working days for the return of your product.

    Features

    Specifications

    Function Range Resolution Accuracy
    DC Current 0-24mA 0.01mA ±(0.5%FS + 1 Digit)
    DC Voltage -199.9mV to 199.9mV 0.1mV ±(0.25%FS + 1 Digit)
    4-20mA% Yes
    Digital Display 1999 count
    Data Hold Yes
    Back Light Yes
    Enclosure Double Moulded case
    Low Battery Indication Yes
    Battery 9V
    Weight 232g
    Dimensions 150 x 70 x 40mm
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Major Tech
    SKU MT990
    Barcode # 6008229028656
    Package Weight 0.442kg
    Package Width 0.120m
    Package Height 0.170m
    Package Length 0.070m
    TYPE VALUE
    Type Process Loop Calibrator
    Brand Major Tech
    Battery 9V
    Dimensions (mm) 150 x 70 x 40mm
