Learn more by watching our Mercator Ikuu SSW01GX-ZB | Smart Single Switch | Zigbee video.
Additional related video.

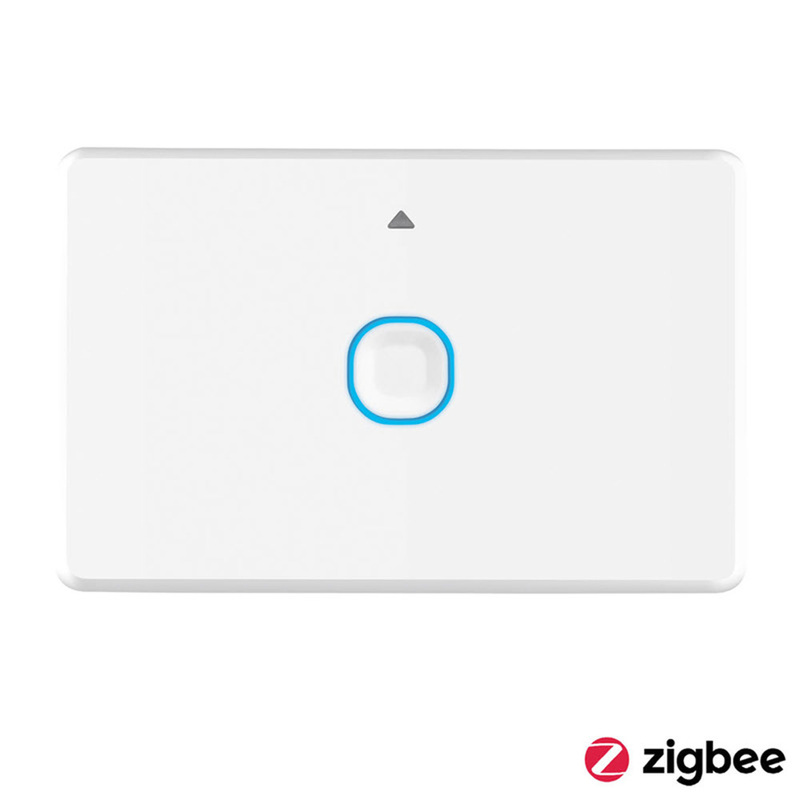

The Mercator Ikuu SSW01GX-ZB is a sleek, smart wall switch designed to integrate into Zigbee-based home automation systems. Perfect for upgrading existing setups or building a connected home from scratch, this switch offers seamless control of lights or small appliances and is fully compatible with the Mercator Ikuu Zigbee ecosystem.
Boasting a compact polycarbonate housing and brass contacts, it fits standard Australian wall boxes and supports 2-way switching—allowing you to mix traditional manual control with smart operation. Featuring blue and white LED indicators for ON and pairing status, this switch is both functional and stylish.
SSW01GX-ZB Features
SSW01GX-ZB FAQ
Q: Can I control this switch from my phone?
A: Yes – once paired with a Mercator Ikuu Zigbee hub, you can use the Ikuu app to switch on/off, set schedules, and create automation scenes.
Q: Is it compatible with voice assistants?
A: Absolutely. Through the Ikuu hub, you can use voice commands via Google Assistant or Amazon Alexa.
Q: Does installation require rewiring?
A: No. It fits standard wall boxes and works with existing wiring, but a neutral wire is required.
(SSW01GX-ZB)
Warranty starts from Invoice Date
Domestic Use: 3 Year
Commercial Use: 3 Year
Warranty Method: This product is valid for 3 years warranty from the date of purchase. Mercator requires a copy of "certificate of compliance' from the installing electrician to complete the claim.
Specification | Details |
---|---|
Model | SSW01GX-ZB |
Connectivity | Zigbee 3.0 (IEEE 802.15.4) |
Wireless Frequency | 2.4GHz |
Voltage | 250V |
Material | Polycarbonate |
Contact Material | Brass |
Operating Load | Motor Rating: M40, Incandescent (Halogen) |
Terminal Size | 6mm² (fits up to 3 x 2.5mm² wires per terminal) |
IP Rating | IP20 |
Compliance Standards | AS/NZS 4268, AS/NZS 60669.1, AS/NZS 60669.2.1, CISPR 15, CISPR 32, AS/NZS 2772.2 |
Requirements | Mercator Ikuü Zigbee hub |
Warranty | 3 years |
Dimensions (W x H x D) | 115 x 74 x 31 mm (Depth to base: 13 mm) |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Mercator |
SKU | SSW01GX-ZB |
Barcode # | 9312699211935 |
Package Weight | 0.173kg |
Package Width | 0.047m |
Package Height | 0.148m |
Package Length | 0.077m |
TYPE | VALUE |
---|---|
Type | Smart Automation |
Brand | Mercator Ikuu |
Range | Mercator Ikuu |
Colour | White |
Height (mm) | 74 |
Depth (mm) | 31 |
Length (mm) | 115 |
Complete / Skin Only / Grid Plate Only | Complete |
Neutral Required | Yes |
App Requirements | Mobile device running iOS or Android. (Refer to ikuu.com.au for minimum specs) |
Wireless Frequency | 2.4GHz |
Protocol | IEEE 802.15.4 |
Operating Load | Resistive: 500W, Incandescent: 300W,, LED: 300W |
Product Type | Switch |
System Requirements | Mercator Ikuü zigbee hub |
Terminal Sizes (mm²) | 6mm (3 x 2.5mm) |
Technology | Zigbee |
Mounting Centre Distance (mm) | 84 |
Warranty | 3 Yr (in Home) |
IP Rating | IP20 rated (Indoor only) |
Material | Polycarbonate |
