        NLS 30142 | Heavy Duty 7 Hole 370Amp 500v Neutral Link
        $35.57 $32.34 ex. GST
        Video

        Learn more by watching our NLS 30142 | Heavy Duty 7 Hole 370Amp 500v Neutral Link video.

        Description

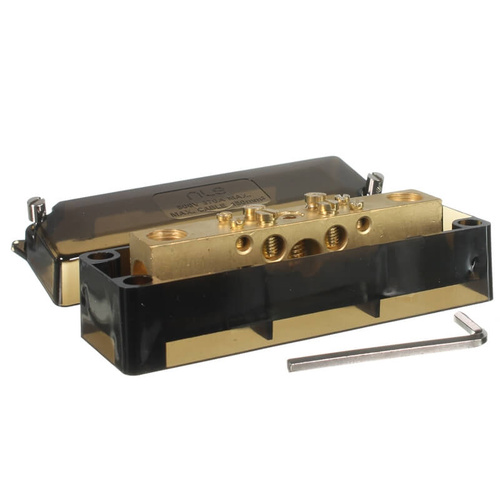

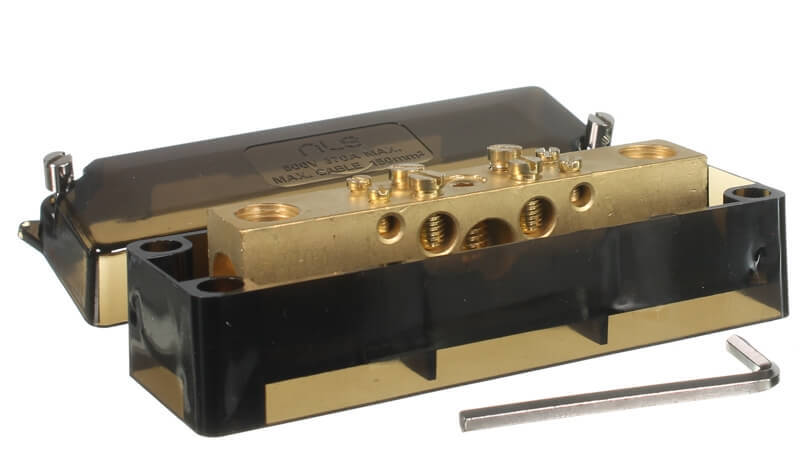

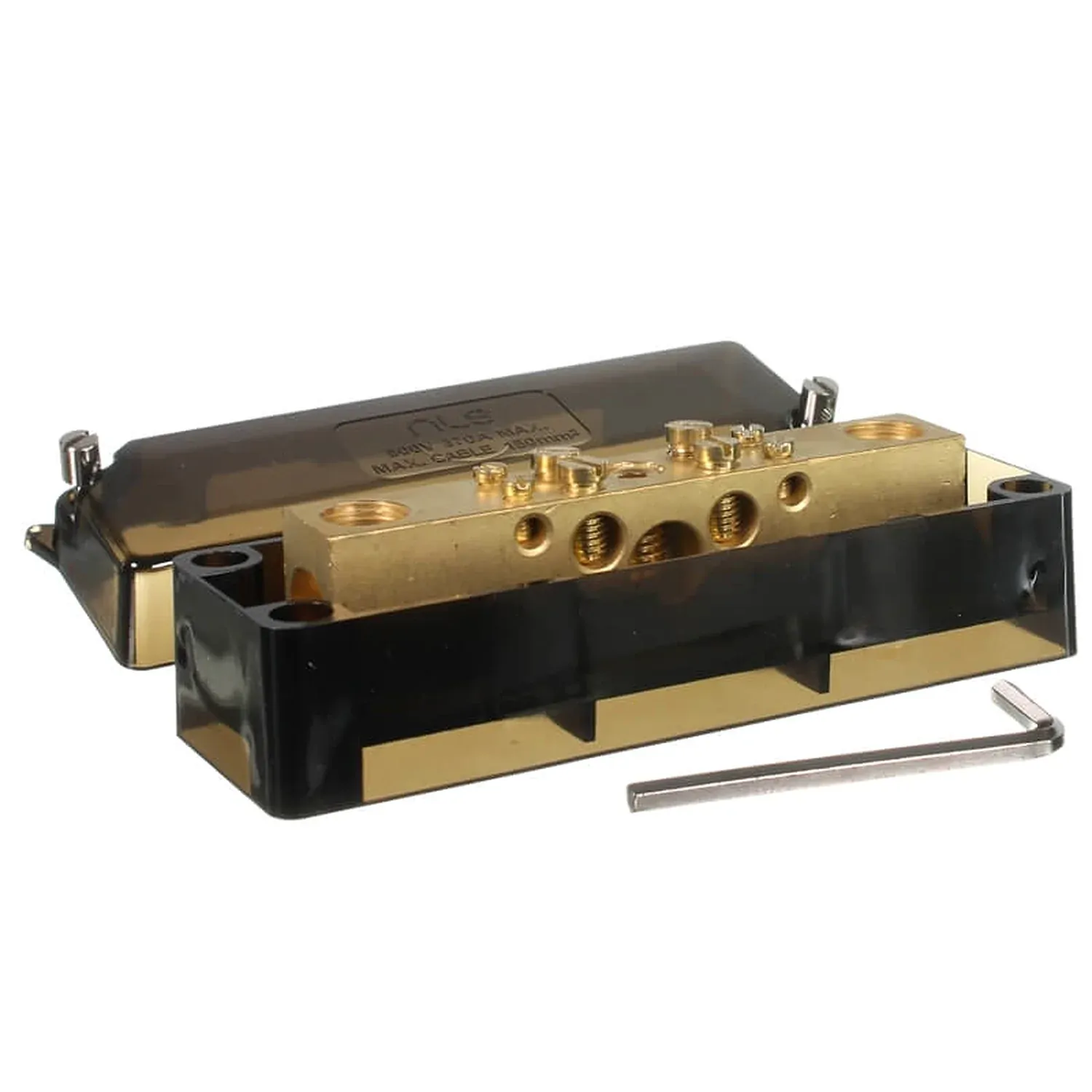

        NLS 30142 | Heavy Duty 7 Hole 370Amp 500v Neutral Link

        The NLS 30142 Heavy Duty Neutral Link is a reliable and robust solution for terminating multiple cables into a meter board or enclosure. Rated for 370Amp and 500V, this 7-hole neutral link is versatile, accommodating a range of cable sizes to suit various electrical installations. It features two terminals for up to 16mm² cables, two for up to 50mm² cables, one for up to 120mm² cables, and two for up to 150mm² cables, providing flexibility to meet diverse wiring needs.

        Measuring 160mm in length, 54mm in width, and 55mm in depth, the NLS 30142 is both compact and durable, easily fitting into a switchboard while optimizing space. The terminals are clearly numbered, making it easy to identify and organize cables, which simplifies the process of installation and ensures orderly connections. This neutral link is an excellent choice for efficient and reliable electrical installations.

        Neutral Link Features:

        • High Current Capacity: Rated at 370Amp and 500V, suitable for heavy-duty electrical installations.
        • Versatile Terminal Sizes: Accommodates cable sizes up to 150mm², with specific terminals for various cable diameters.
        • Space-Saving Design: Compact dimensions allow for efficient use of space within a switchboard.
        • Numbered Terminals: Simplifies cable identification and organization during installation.
        • Durable Construction: Built for reliable performance in demanding electrical environments.

        30142 FAQ:

        Q: What cable sizes can this neutral link accommodate?
        A: The link can accommodate cables up to 150mm², with specific terminals for 16mm², 50mm², 120mm², and 150mm² cables.

        Q: Where is this neutral link typically installed?
        A: It is commonly installed in switchboards for terminating multiple cables into a meter board or enclosure.

        Q: What are the dimensions of this neutral link?
        A: The neutral link measures 160mm in length, 54mm in width, and 55mm in depth, making it compact and easy to fit into various installations.

        (30142)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30142
        Barcode # 9336700012953
        Shipping Weight 0.7460kg
        Shipping Width 0.062m
        Shipping Height 0.062m
        Shipping Length 0.172m
        Shipping Cubic 0.000661000m3
        TYPE VALUE
        Type Active / Neutral Links
        Brand National Light Sources
        Colour Black
        Width (mm) 54
        Depth (mm) 55
        Length (mm) 160
        Box increments (This item is sold individually) 1
        Number of Terminals 7
