        Learn more by watching our NLS 30257 | 24 Pole Surface Mount Switch Board | IP40 video.

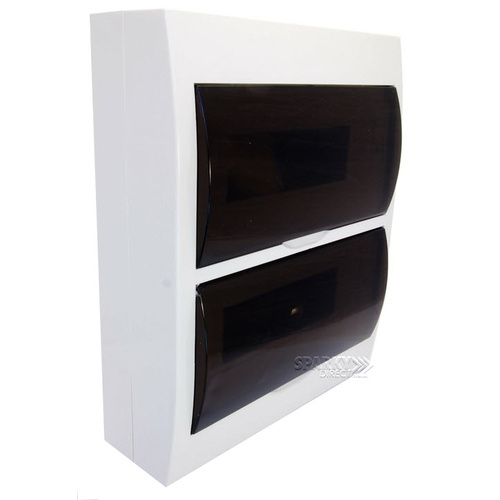

        NLS 30257 | 24 Pole Surface Mount Switch Board | IP40

        The NLS 30257 is a 24 pole surface-mount switchboard built for the Australian domestic market. Compact on the outside yet spacious inside, it supports clean, simple wiring and is compatible with most major circuit protection brands. Ideal for homes, outbuildings, and small commercial installs.

        Rated up to 100A at 250/415V (50/60Hz), this board handles on-load current of 100A (1 phase) or 63A (3 phase). It includes everything you need: DIN rail, earth bar, neutral links, pole fillers, circuit labels, and a solid backboard. The smoke-tinted transparent door allows easy breaker visibility, and the polycarbonate enclosure meets IEC fire-resistance standards.

        NLS 30257 Features

        • 24 pole surface mount board: Accepts up to 24 standard 18mm wide protection devices
        • Device compatibility: Designed to accommodate most leading circuit breaker and RCD brands
        • Complete kit supplied: Includes earth link, neutral links, pole fillers, DIN rail, backboard and ID labels
        • Compact yet roomy: Small overall size with ample internal space for wiring and terminations
        • Electrical rating: Up to 100A, 250/415V, 50/60Hz; on-load 100A (1 phase), 63A (3 phase)
        • IP40 enclosure: Suitable for indoor, dry locations
        • Smoke transparent door: Quick visual check of breakers and RCD positions
        • Construction: Polycarbonate fire-resistant body, compliant with IEC standards
        • Approx. dimensions: Length 100mm, Height 325mm, Width 270mm

        Where to Use this NLS 30257

        • Sheds and garages: Main or sub-boards for small outbuildings
        • Home offices and small commercial spaces: Compact distribution board for general circuits
        • Relocatable buildings and site offices: Robust, cost-effective surface-mount switchboard
        • Upgrades and small extensions: As a sub-board where 24 poles and IP40 are suitable for the installation environment

        (30257)

        It’s ideal for indoor locations such as homes, sheds, garages, small commercial areas, and site offices where an IP40-rated board is appropriate.

        Yes. It’s rated for up to 100A in single-phase setups and 63A when used in three-phase applications.

        Absolutely. Despite its compact footprint, the internal layout provides generous room for clean routing and tidy termination work.

        It comes with a DIN rail, pole fillers, circuit ID labels, backboard, earth bar, and neutral links - ready for full circuit population.

        Not fully exposed outdoor areas. Its IP40 rating means it must be installed indoors or in a dry, protected location.

        Yes, Sparky Direct carries the NLS 30257 and offers fast, reliable shipping Australia-wide.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30257
        Model # 30257NLS
        Barcode # 9336700004361
        Package Weight 1.646kg
        Package Width 0.270m
        Package Height 0.105m
        Package Length 0.335m
        View Datasheet
        TYPE VALUE
        Type Enclosures
        Brand National Light Sources
        Height (mm) 325
        Width (mm) 270
        Length (mm) 100
        Protection IP40
        Material PVC
        Number of Poles 24
        Door Smoke Finish Transparent
        Number of Rows 2
        Door Hinge Direction Top Hinge
        Earth Bar Yes
        Neutral Bar Yes
