        Clipsal by Schneider Electric | MAX9 Surface Mount Enclosure 18 Pole 1 Row | IP40 Indoor

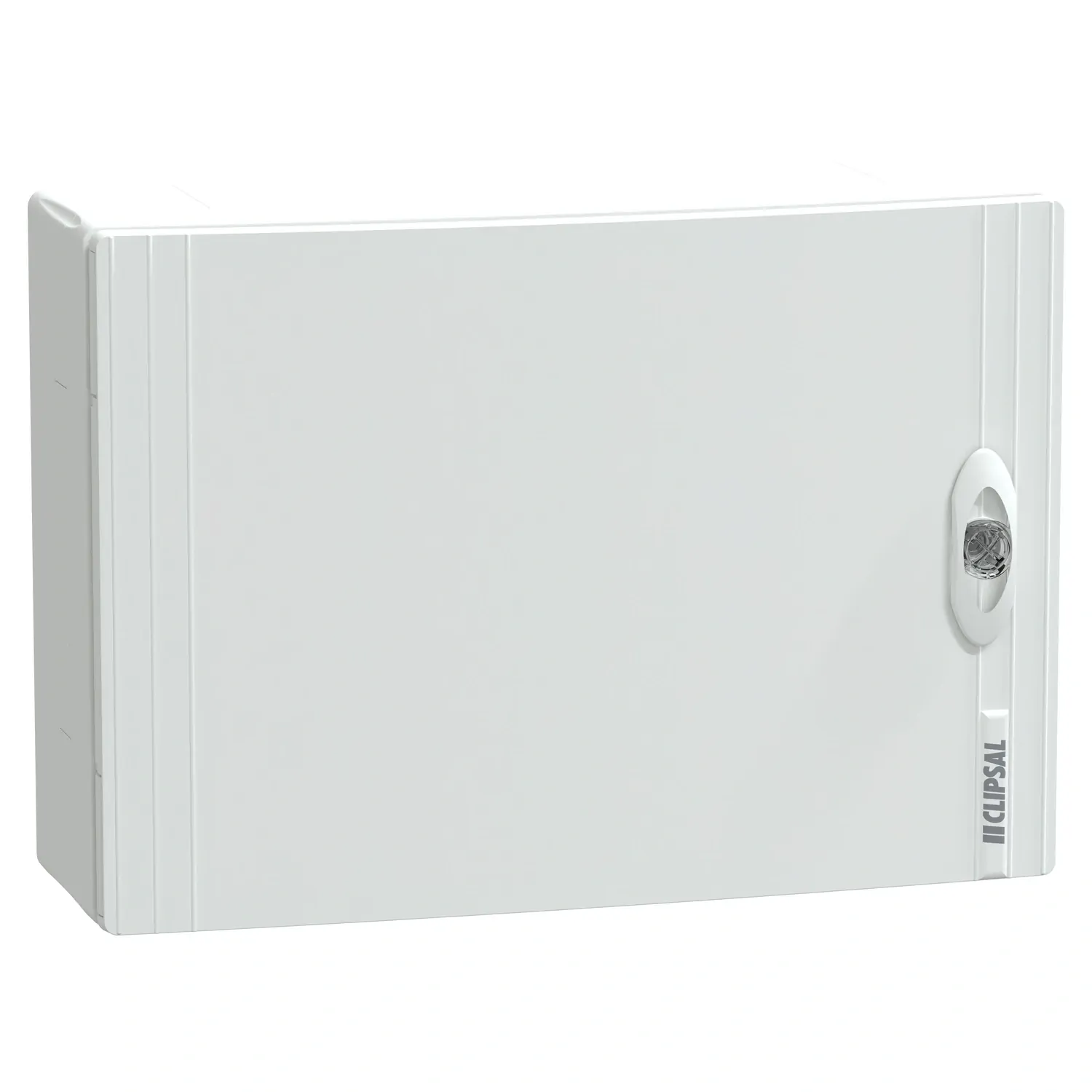

        The Clipsal MX9SB118S is a MAX9 surface-mount switchboard enclosure with 18 module poles in a single row, rated IP40 for indoor distribution. It takes MAX9 devices and MAXBAR busbar systems, suiting compact residential and light-commercial boards. The MX9SB118S fixes flat onto the wall face and ships with a reversible door that hinges from either side.

        A small board, a sub-board, or a single-purpose circuit rarely needs the height of a multi-row enclosure, but the breakers still have to land somewhere tidy. Where wall space is tight or the run is small, a single-row board keeps the footprint low. The MX9SB118S sets 18 poles in one row onto the wall face, giving the smallest board in the range with no cavity to cut.

        For a sub-board, a granny flat, or a shed feeder, the MX9SB118S carries a short circuit list in a board that fixes straight onto brick, block, or a finished wall. The 18-pole single-row layout keeps the enclosure low and neat where a taller board would not fit. A reversible door lets the installer set the hinge to suit the wall, and the surface fixing means no cavity work on site.

        Features

        • 18-pole capacity — a single row of 18 18mm modules suits a small board or sub-board.
        • Surface mount — the MX9SB118S fixes flat onto the wall face, so there is no wall cavity to cut.
        • MAX9 compatible — takes MAX9 MCBs, RCBOs, and MAXBAR busbar systems for a keyed, tidy assembly.
        • Reversible door — the door hinges from either side, so the MX9SB118S fits left or right-hand wall positions.
        • Single-row layout — one row of 18 modules keeps the enclosure low and compact on the wall.
        • Smallest in the range — the low footprint suits tight wall space where a taller board will not fit.
        • White plastic body — moulded RAL 9003 white enclosure and trim give a clean face on the wall.
        • MAX9 ready — suits a short domestic circuit list, a solar feed, or an EV circuit sub-board.
        • IP40 rating — protected against small solid objects, suited to dry indoor and protected locations.
        • Indoor use only — IP40 gives no rain or splash protection, so the MX9SB118S is not for outdoor or damp positions.
        • Solid-wall friendly — surface fixing suits brick, block, and finished walls where there is no cavity to recess into.

        Where to use

        • Sub-boards — the MX9SB118S works as a compact single-row sub-board off a main switchboard.
        • Granny flats and studios — a small board sized for a short domestic circuit list.
        • Sheds and garages — surface mounting suits utility spaces where a cavity fit is not practical.
        • Solar and EV feeders — a low-pole board for a dedicated solar or EV circuit off the main board.
        • Renovation add-ons — adds a small board where the main switchboard is already full.
        • Tight wall runs — the low single-row footprint fits where a taller board will not.

        The MX9SB118S is rated IP40 and is an indoor enclosure only. It gives no protection against rain, splash, or damp, so it should not be mounted outdoors or in wet areas. It is a surface-mount box that fixes onto the wall face, not a flush or recessed enclosure. Fitting must be carried out by a licensed electrician.

        (MX9SB118S)

        They are used to house circuit breakers and protect electrical circuits in residential and commercial installs.

        It depends on how many circuits you have. Smaller jobs suit 13–24 pole, while larger installs may need 36–72 pole boards.

        It refers to the number of breaker spaces available inside the board.

        The board is mounted directly onto the wall instead of recessed into it.

        They are designed for indoor use or protected locations only.

        Yes. Sparky Direct stocks a range of Clipsal MAX9 surface mount boards with fast dispatch across Australia.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9SB118S
        Model # MX9SB118S
        Package Weight 2.783kg
        View Datasheet
        View Brochure
        View Manual
        TYPE VALUE
        Type Switchboard
        Brand Clipsal by Schneider Electric
        Range MAX9
        Colour White
        Number of Poles 18
        IP Rating IP40
        Number of Rows 1
        Mounting Type Surface
