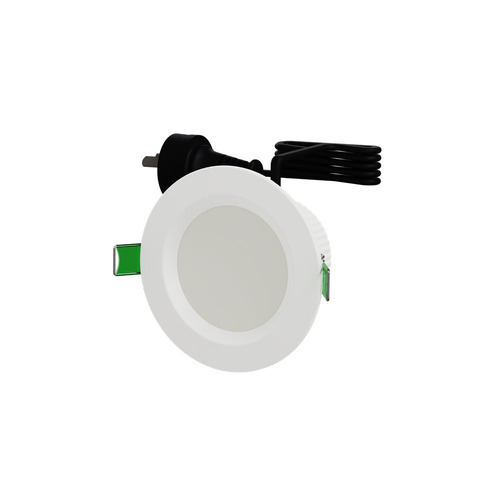

        Clipsal TPDL1C3R | 7W Tri-Colour Dimmable LED Downlight Kit | Ripple Resistant  | 90mm Hole

        The Clipsal TPDL1C3R 7W Tri-colour Dimmable LED Downlight Kit features ripple resistance and enhanced filtering for stable performance. It provides increased resistance to supply line ripple voltages, which can have a negative effect when supply companies use ripple voltages to change tariff rates during different parts of the day.

        Added filtering circuitry has been included in this model to compensate for the effect ripple can cause on lighting.

        The Clipsal TPDL1C3R 7W Tri-Colour Dimmable LED Downlight Kit is perfect for homes and businesses.

        You can adjust the colour and brightness with its tri-temp switch and dimming technology. It's safe for installation against structures and insulation and suitable for indoor and outdoor use. With 22% less power consumption and a 3-year warranty, this downlight is reliable, efficient, and stylish.

        TPDL1C3R Features

        • Ripple Resistant: Reduces the negative effects of supply line ripple voltages, ensuring stable performance.
        • Enhanced Filtering Circuitry: Compensates for ripple effects on lighting.
        • Tri-Colour and Dimmable: Adjust the colour and brightness with the tri-temp switch and dimming technology.
        • Energy Efficient: Consumes 22% less power while providing the same brightness.
        • Safe Installation: IC-4 rated, safe to install against structures and insulation.
        • Versatile Use: Suitable for both indoor and outdoor applications with a PVC IP44 front.
        • Customizable Look: Optional clip-on trim available in Brushed Chrome and Black.
        • Reliable Quality: Comes with a 3-year warranty.

        Benefits

        • Stable Performance: Enhanced filtering ensures consistent lighting.
        • Flexible Lighting Options: Choose between 3000K, 4000K, and 6000K colour temperatures.
        • Energy Savings: Achieve lower power consumption without compromising brightness.
        • Safe and Easy Installation: Suitable for various settings and safe to install against insulation.
        • Trusted Brand: Manufactured by Clipsal, which is known for its high-quality products.

        Where to use this Clipsal TPDL1C3R

        • In residential spaces where ripple resistance prevents flickering during tariff changes.
        • In commercial environments, consistent and efficient lighting is required.
        • In outdoor covered areas, thanks to the IP44 rating.
        • In renovations or upgrades where dimmable, tri-colour flexibility is needed.

        Included in the Kit

        • LED fitting
        • Flex and plug 10 amp
        • Compatible with Clipsal rotary dimmers (30 series, 40 series, 60 series) and Wiser Room Smart Home Bluetooth dimmers.

        (TPDL1C3R)

        Yes, you can order this model directly online and have it delivered fast, anywhere in Australia. Sparky Direct also supports warranty claims, so you’re covered if anything goes wrong.

        Sparky Direct can help with warranty claims and replacements. The downlight is backed by a 3-year Clipsal warranty, ensuring you’re covered under Australian Consumer Law.

        The LED is designed to last up to 50,000 hours, which translates to many years of normal household use. It’s non-replaceable, but built for long-term performance.

        At only 7W, this light delivers the same brightness as a much higher wattage halogen. That means strong lighting with much lower energy bills.

        You can customise the look with optional trims in brushed chrome TPDL1T3BC or black TPDL1T3BK. These clip on easily, giving you a neat finish to match your décor.

        Yes, the IP44 front protection makes it suitable for covered outdoor areas like eaves. It’s not designed for direct exposure to heavy rain, but works perfectly in sheltered spots.

        No, it is IC-4 rated, which means it’s safe to be installed against and even covered by insulation. It’s built for Australian conditions and won’t overheat in your ceiling.

        Yes, there’s a built-in switch that lets you choose warm white (3000K), cool white (4000K), or daylight (6000K). This means you can adjust the light to suit different rooms or moods.

        No, this ripple-resistant version is designed to minimise flicker. It gives you smooth, stable dimming even if your power supply uses ripple signals.

        Yes, the front of the fitting is rated IP44, making it suitable for bathrooms and other damp zones. Just make sure installation follows local wiring rules for wet areas.

        Yes, the TPDL1C3R fully complies with AS/NZS 60598.2.2 and is IC-4 rated. This means it can safely sit against timber, walls, and insulation without any risk of overheating.

        You can install it confidently knowing it meets strict safety standards.

        It comes with a 3-year Clipsal warranty, which covers repair or replacement.

        This warranty is fully supported under Australian Consumer Law for peace of mind.

        Yes, it works with Clipsal LED rotary dimmers and Wiser Bluetooth dimmers. You’ll get smooth dimming down to low levels without flicker.

        42ELEDM2-VW

        42E350RUD2M

        41E300PBUD2SM

        41EPBDWCLM-VW

        41EPBDWCLMZ-VW

        The LED has a rated life of up to 50,000 hours (L70). This means years of reliable use before any noticeable drop in brightness.

        From the front, the fitting has IP44 protection, making it safe for damp areas. From the rear, it is IP20. It also carries an IK02 impact rating, giving it resilience against light knocks.

        Yes, it includes advanced filtering to reduce flicker caused by ripple control signals.

        This ensures a smooth, stable light even in areas where supply authorities use ripple control.

        The required cut-out is 90 mm. The trim width is 110 mm and the height is 55–58 mm, with a mounting depth of 55 mm.

        These standard dimensions make installation straightforward.

        It has a 110° wide beam angle, making it ideal for general room lighting.

        This spread gives you even light coverage without dark patches.

        The downlight delivers 750 lumens of brightness across all three selectable colour temperatures (3000K, 4000K, and 6000K).

        This ensures consistent lighting, whether you prefer warm, neutral, or cool light.

        It is rated at 7W and runs on 220–240V AC, 50 Hz. This makes it highly energy-efficient while still providing strong, reliable lighting.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 3 Year
        Commercial Use: 3 Year
        Warranty Method: Clipsal Warranty Agents - In Home service.

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU TPDL1C3R
        Model # CLITPDL1C3R
        Barcode # 3606487149316
        Package Weight 0.260kg
        Package Width 0.130m
        Package Height 0.090m
        Package Length 0.130m
        TYPE VALUE
        Type Lighting
        Brand Clipsal by Schneider Electric
        Height (mm) 65
        Protection IP44
        Lumens (lm) 700-750
        Lighting Technology LED
        Light Colour (K) 3000 4000 6000
        Cover Diameter 110
        Cut out Diameter 90mm
        Wattage (W) 7
        Voltage (V) 240V
        Installation Area Indoor & Outdoor Protected
        Life time 50,000Hrs
        Beam Angle 90 Degrees
        Weight (kg) .190
        Cut-Out (mm) 90
        Mounting Depth (mm) 58
        Trim Width (mm) 110
        Ripple Resistance Yes
