XLED | Deep Gen 2 9W CCT Dimmable LED Downlight 90mm | White

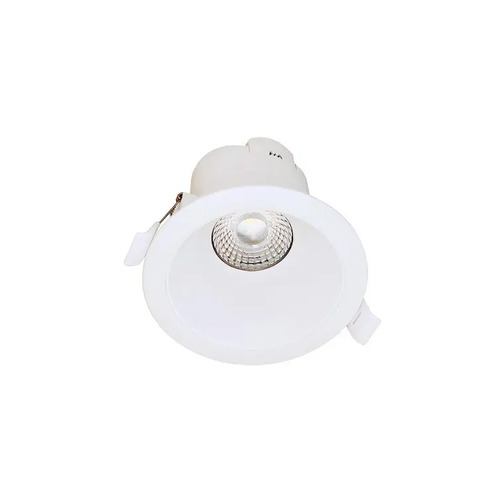

The XLED XDA3-W is a recessed LED downlight rated 9W, fitted with a polycarbonate body and opal diffuser for a 90mm ceiling cutout. The XDA3-W switches between 3000K, 4000K, and 6000K colour temperatures on the one fitting, with no extra wiring needed. It is dimmable and rated IP44 on the front face, IP40 on the recessed body, suiting standard internal ceiling installations.
Older halogen downlights run hot, glare badly, and cost more to replace one-for-one through retail electrical stores. Renovators and electricians swapping out 50W halogen cans want a 9W LED replacement that fits the same 90mm hole without reframing the ceiling. The IC-4 rating on the XDA3-W allows direct contact with ceiling insulation, removing the need for a fire-rated cover during retrofits. The recessed design also cuts indirect glare compared with flush fittings, which suits open-plan kitchens and living areas.
Electricians fitting out renovations specify the XDA3-W because its retail price undercuts comparable downlights by roughly half, leaving room in the quote without compromising finish. Tri-colour switching on a single fitting means one SKU covers warm, neutral, and cool colour jobs, cutting stock-keeping across a van. The 0.6m flex and plug fitting speeds up first-fix wiring, with the downlight connecting straight into the transformer connection on site. Multiple units install from the same wiring pattern, so a full house reno uses one product line throughout.
Features
- Tri-colour CCT switching — switches between 3000K, 4000K, and 6000K colour temperatures via a selector, so one fitting suits warm, neutral, or cool lighting jobs.
- 9W LED engine — the XDA3-W's LED engine delivers 700 to 800 lumens output, replacing a 50W halogen downlight on equivalent light output.
- Dimmable operation — works with a compatible dimmer switch for adjustable light levels in living and dining areas.
- IC-4 rated for insulation contact — the XDA3-W can be installed in direct contact with ceiling insulation without a fire-rated cover.
- IP44 rated front face — the exposed lens resists dust and light moisture, while the recessed body carries an IP40 rating.
- Polycarbonate body and opal diffuser — the polycarbonate housing and opal polycarbonate diffuser spread light evenly and resist yellowing over time.
- 30,000 hour rated lifespan — reduces replacement frequency compared with halogen downlights, which typically run under 5,000 hours of service life.
- 87.5 lm/W efficacy — converts more input power into usable light output than older halogen and CFL downlights.
- 0.6m flex and plug fitting — connects directly to the transformer connection on site, speeding up first-fix wiring during installation.
- 85-90mm cutout — fits the same ceiling hole size as most standard 90mm downlights, suiting like-for-like halogen replacement.
- Interior use only — not weatherproof rated for outdoor or fully exposed wet-area installation, since the recessed body only carries an IP40 rating.
- 3 year fitting warranty — ILD backs the XDA3-W with a 3 year replacement warranty on the fitting from the invoice date.
Where to use
- Kitchen ceilings — tri-colour switching lets the XDA3-W match warm task lighting over benches or cool white for food prep areas.
- Living and dining rooms — dimmable operation suits mood lighting for evening use alongside daytime task lighting.
- Hallways and entries — the slim 85mm fixture depth suits standard ceiling cavities without extra furring.
- Bedrooms and studies — adjustable colour temperature switches from cool white for reading to warm white for relaxing.
- Renovation halogen replacements — the XDA3-W's 85-90mm cutout matches existing halogen downlight holes, avoiding ceiling rework.
- New build fit-outs — the XDA3-W's IC-4 rating allows direct insulation contact, simplifying compliance in insulated ceiling spaces.
- Rental property upgrades — the 30,000 hour lifespan reduces callback frequency for landlords managing multiple properties.
The XDA3-W is not rated for fully exposed outdoor locations or direct water spray, since the recessed body carries only an IP40 rating behind the IP44 front lens. It is not suitable for bathroom shower zones or other fully wet-area ceilings without an additional weatherproof enclosure. Use the fitting only in dry to lightly damp internal ceiling spaces.
