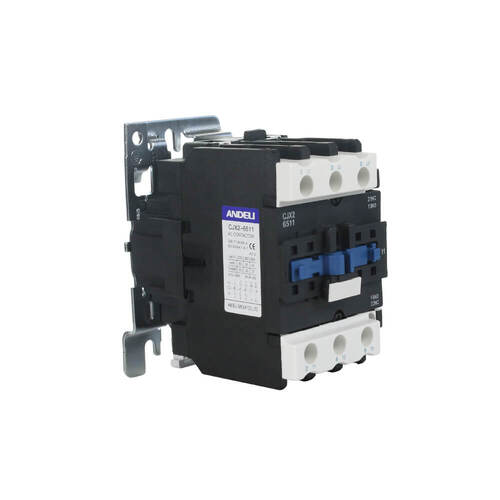

        ANDELI CJX2-65-U7 | AC Contactor 28Amp (AC4) - 65Amp (AC3) | 240V coil
        $75.90 $69.00 ex. GST
        Video

        Learn more by watching our ANDELI CJX2-65-U7 | AC Contactor 28Amp (AC4) - 65Amp (AC3) | 240V coil video.

        Description

        ANDELI CJX2-65-U7 | AC Contactor 28Amp (AC4) - 65Amp (AC3) | 240V coil

        Description:

        The ANDELI CJX2-65-U7 AC Contactor provides strong functionality and reliability, ideal for electricians who need dependable motor control. It's rated for circuits up to 660V AC and has a power capacity of 37kW at 415V, allowing it to handle significant electrical loads. This contactor is designed to make, break, and frequently start AC motors. It can also be incorporated into complex control systems with the addition of auxiliary contacts, timers, and interlocks.

        Features:

        • Strong Performance: Can manage AC-3 applications up to 65A and AC-4 up to 28A.
        • Durable Lifecycle: Electrical life rated at 60x10⁴ operations in AC-3 and 15x10⁴ in AC-4, with a mechanical life of 800x10⁴ cycles.
        • Comprehensive Compatibility: Works up to 660V AC, suitable for various installation needs.
        • Advanced Integration: Easily combines with auxiliary contact blocks and thermal relays for versatile configurations.

        FAQ:

        Q: What power can the ANDELI CJX2-65-U7 handle at different voltages?
        A: It handles 18.5kW at 220/230V, 30kW at 380/400V, and 37kW at 415/500/660/690V.

        Q: Is this contactor suitable for high-frequency operations?
        A: Yes, it's designed for frequent starting and controlling of AC motors, making it ideal for high-demand applications.

        Q: Does this contactor meet any international standards?
        A: Yes, the ANDELI CJX2-65-U7 conforms to the IEC60947-4-1 standard, ensuring compliance with global electrical standards.

        (CJX2-65-U7)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Rated working current (A) AC3: 65,
        AC4: 28
        Standard power ratings of 3-phase motors
        50/60Hz in category AC-3 (kW)

        220/230V: 18.5 kW,
        380/400V: 30 kW,
        415/500/660/690V: 37 kW

        Rated heat current (A) 80
        Electrical life AC3: 600,000 operations,
        AC4: 150,000 operations
        Mechanical life 8,000,000 operations
        Number of the contacts 3P+NC+NO
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Andeli
        SKU CJX2-65-U7
        Barcode # 9321592222351
        Shipping Weight 0.4400kg
        Shipping Width 0.100m
        Shipping Height 0.050m
        Shipping Length 0.090m
        Shipping Cubic 0.000450000m3
        TYPE VALUE
        Type Contactor
        Brand Andeli
        Rated Current (A) AC-3 65A
        Rated Current (A) AC-4 28A
        Kilowatt Rating (kW) 37kW at 415V 50/60Hz
        Contact Configuration 3P+NO+NC
