Brilliant | Heat Fan Light 1000W 55W Motor 500m³/hr | Tri-Colour LED White

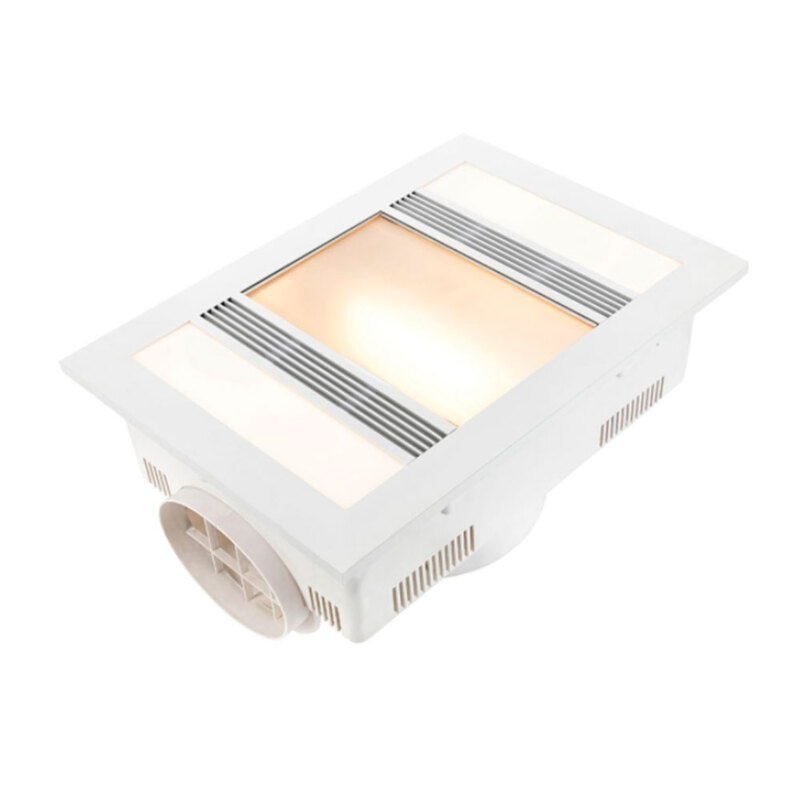

The Brilliant 21478-05 Marvel is a 3-in-1 bathroom heat, light, and exhaust fan combining a 1000W instant heat infrared lamp, a 55W long-life ball bearing motor extracting up to 500m³/hr, and twin 8W LED lights with adjustable colour temperatures (3000K, 4200K, 6000K). Rated 240V / 50Hz, IPX2, with a 3-year in-home warranty and 475mm x 325mm ceiling cutout, the 21478-05 delivers complete bathroom comfort in a modern low-profile design. Also available in matt black (SKU: 21478-06).
Modern bathroom renovations and new builds often require heat, light, and ventilation in tight spaces. The Marvel 3-in-1 combines all three functions into a single ceiling unit, removing the need for separate heat lamps, exhaust fans, and downlights. This integration reduces the coordination challenge of multiple components and cuts the number of wall switches required. The low-profile slimline design suits contemporary bathroom aesthetics without the bulk of traditional triple-function units.
Sparkies and builders favour the Marvel for its straightforward installation — the unit ships with a 3-gang wall switch, 1.5m flexible ducting, duct clamps, and exterior grille, so the job is complete on arrival with no need to source accessories. The powerful 55W motor extracts up to 500m³/hr, handling moisture and steam effectively in medium to large bathrooms. The 1000W infrared heat lamp delivers instant warmth, and the adjustable colour-temperature LED lights (3000K to 6000K) allow clients to choose their preferred lighting mood. The integral thermostat switch automatically turns on the fan if internal temperature exceeds 50°C, adding passive protection against humidity buildup. Repeat customers often buy the Marvel for multiple bathrooms in a project, citing the balance of performance, design, and total cost of ownership.
Features
- 3-in-1 integration — heat lamp, exhaust fan, and LED light in one unit, eliminating the need for separate components and reducing the number of wall switches and ceiling cutouts.
- 1000W instant heat infrared lamp — provides immediate body warmth without a heating ramp-up, rated for residential and commercial bathroom use.
- 55W long-life ball bearing motor — extracts up to 500m³/hr (139 litres/second) to efficiently remove moisture, steam, and condensation from medium to large bathrooms.
- Twin 8W LED lights (1200 lumens) — super-bright LED output with adjustable colour temperature selection between warm white (3000K), cool white (4200K), and bright daylight (6000K) to match bathroom mood and lighting preference.
- Modern low-profile design — slimline matt white finish (or matt black, SKU: 21478-06) sits flush with the ceiling without the bulky appearance of traditional triple-function units.
- Thermostat safety switch — automatically turns on the exhaust fan if the internal temperature exceeds 50°C, providing passive protection against moisture buildup and prolonging the unit's lifespan.
- IPX2 rating — provides protection against dripping water when the unit is mounted in a standard ceiling, suitable for bathroom humidity exposure but not direct water spray or outdoor installation.
- Complete installation kit included — 3-gang wall control, 1.5m flexible ducting, 2 x duct clamps, and exterior grille eliminate the need to source accessories separately.
- 240V / 50Hz operation — standard Australian mains power, rated for 1100W total maximum draw on a dedicated 10A or 16A circuit with appropriate RCD protection.
- 475mm x 325mm ceiling cutout — dimensions allow installation in standard Australian ceiling framing with 300mm minimum depth to roof recommended for heat lamp clearance.
- 3-year in-home warranty — covers manufacturing defects under the Brilliant warranty scheme, with claims handled through Brilliant's warranty team on +61 3 9765 2555.
- Not weatherproof — IPX2 rating limits use to interior bathrooms only; the 21478-05 is not suitable for external walls, covered patios, outdoor bathrooms, or damp exposed locations subject to splash or rain exposure.
Where to use
- Bathroom renovations and new builds — the Marvel 3-in-1 is a common specification in modern bathroom projects where space-saving and multi-function integration reduce the number of ceiling penetrations and wall controls.
- Medium to large residential bathrooms — the 500m³/hr extraction capacity handles moisture and steam removal in master ensuite and family bathroom applications without requiring secondary ventilation.
- Rental properties and holiday homes — provides complete bathroom comfort (heating, ventilation, lighting) in a single fixture, simplifying maintenance and reducing guest complaints about cold bathrooms or poor ventilation.
- Extension and addition work — easily retrofitted into new ceiling spaces during extensions, often preferred over installing separate heat and exhaust units due to the reduced footprint and single wall switch.
- Bathroom upgrades from single fixtures — clients replacing an ageing heat lamp or exhaust fan often choose the Marvel to gain heating, ventilation, and lighting in one modern assembly.
- Commercial bathrooms in office and hospitality settings — the unit's compliance with AS/NZS standards and 3-year warranty make it suitable for shared facilities in hotels, offices, and public buildings.
- Colour-temperature-conscious installations — where clients want adjustable lighting (warm for evening, bright for morning grooming), the tri-colour LED option eliminates the need for a separate dimmable downlight.
The Brilliant 21478-05 is not suitable for external walls, damp exposed locations, or splash-zone installations. Do not install the Marvel in bathrooms with direct water exposure (such as wet areas beside showers), outdoor bathrooms, or covered patios where rain or moisture can reach the unit. The IPX2 rating protects against dripping water in normal bathroom humidity but not direct spray or immersion. For external bathroom applications, consider a weatherproof heat lamp model instead.
Verified Sparky Direct customer reviews: Brilliant 21478-05 Marvel 3-in-1 Bathroom Heat, Light and Exhaust Fan (21478-05)
"Was a breeze from start to finish, great customer service." — Ric
"This light fan combo is simply stunning, very sleek. Two light temps, along with a powerful yet extremely quiet fan and intense heater. I bought two as a result !" — Coach57
"Awesome product, easy to install, comes with cutout template." — Nick
