Domus | Stream 6-in-1 Bathroom Heater, Exhaust Fan & Light 2250W | White IPX2

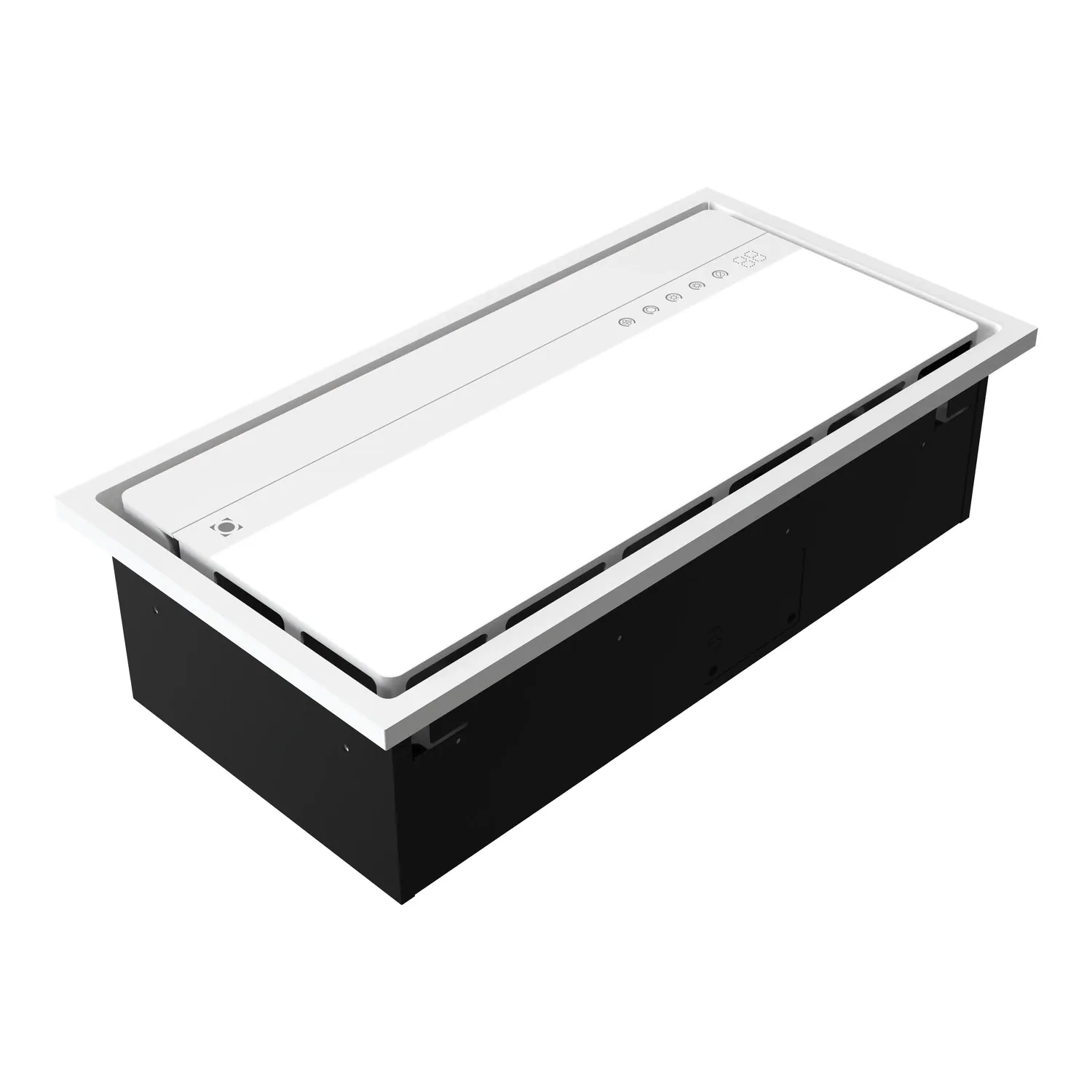

The Domus 56083 is a 6-in-1 recessed bathroom heater rated 240V AC, combining heat, exhaust, circulating fan, dry heat, sway, and LED light in one ceiling unit. The 56083 runs a single AC motor with a PTC heating element, delivering 2150W of heat output and 500m3/h of air extraction. It carries an IPX2 rating and a switchable 3000K, 4000K, and 5000K tri-colour LED light drawing 25W.
Bathrooms trap moisture, and condensation on walls and ceilings leads to mould and paint damage over time. The Domus 56083 pairs 2150W of PTC heat with 500m3/h extraction, warming the room while pulling damp air out at the same time. Its covert oscillating sway spreads warm air across the space instead of leaving it pooled in one corner.
For a bathroom fit-off, the 56083 replaces separate heat, fan, and light units with one recessed appliance on a single AC motor. The 615x315mm fascia and 595x280mm cutout suit new installations, and the V1.5 digital wall controller handles every mode from one plate. Two PTC heat settings and an AUX button give the customer control without extra switch gear on the wall.
Features
- 6-in-1 functions — heat, exhaust fan, circulating fan, dry heat, oscillating sway, and LED light run from a single recessed unit.
- 2150W PTC heat output — the PTC heating element warms the room quickly and holds a steady output without an exposed glowing element.
- 500m3/h air extraction — high-volume extraction clears steam and damp air to help reduce condensation build-up during and after showers.
- Single AC motor — the 56083 drives heat, extraction, and circulation from one 60W AC motor rather than separate motors.
- 25W tri-colour LED light — the light switches between 3000K, 4000K, and 5000K, with a CRI of 80 or above for accurate colour rendering.
- Tri-colour lumen output — the LED delivers 1500lm at 3000K, 1850lm at 4000K, and 1750lm at 5000K.
- V1.5 digital wall controller — the included 8-switch controller runs every mode, with an ALL-OFF button and an AUX button for a separate light or fan.
- Two-hour auto shut-off — the 56083 turns itself off after two hours of continuous running, and any controller press within that window resets the timer.
- Quiet operation — the unit runs at 48dB or below, measured at the rated setting.
- Slimline recessed body — the 163mm-high body needs a minimum 200mm ceiling clearance above the fascia for installation.
- IPX2 rating — rated against dripping water at up to 15 degrees from vertical, suited to ceiling mounting outside the direct shower spray zone.
- Included accessories and warranty — supplied with a 3M flexible duct and exterior grille, and backed by a 5-year in-home warranty.
Where to use
- New bathroom installations — the 56083 is built for new fit-offs, with a 595x280mm cutout and 615x315mm fascia sized for a fresh ceiling opening.
- Family bathrooms — combined heat, extraction, and light suit a main bathroom used through cold mornings and evening baths.
- Ensuites — the single-unit format keeps an ensuite ceiling clear of separate fan, heat, and light fittings.
- High-moisture rooms — the 500m3/h extraction helps manage steam in rooms that fog up fast after hot showers.
- Renovation ceilings — the recessed body fits where the 200mm clearance above the fascia is available in the ceiling cavity.
- Ducted extraction runs — the 150mm duct connects to the 3M flexible duct and exterior grille to vent damp air outside.
The Domus 56083 is rated IPX2 and is not suited to direct shower spray zones or fully enclosed wet areas. It needs a minimum 200mm ceiling clearance above the fascia, so it does not fit shallow ceiling cavities. The unit is for indoor bathroom ceilings only and is not an outdoor or submersible fitting.
