Built Boards | Vertical Wall Mount NBN Cabinet CAT6 | Compliant enclosure

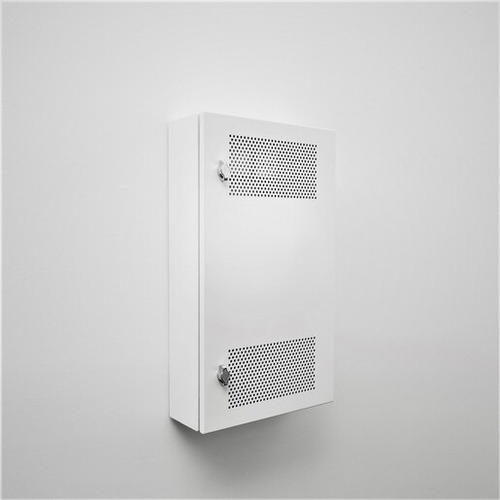

The Built Boards BBNBNV1 is a vertical wall-mounted network enclosure designed for Australian NBN installations, housing CAT6 cabling and network equipment in residential or small commercial applications.
When the national broadband rollout reaches a property, installers and homeowners need an enclosure that meets NBN Co compliance standards while remaining compact and unobtrusive. The cabinet holds active equipment, patch panels, and power supplies in one location, keeping cables organised and protecting connections from dust and accidental damage.
The BBNBNV1 simplifies NBN installations by combining compliance with practical functionality. It arrives with a power outlet and pre-installed CAT6 6-gang outlet, accelerating setup and reducing site time. OptiComm approval confirms compatibility with nationwide network equipment.
Features
- NBN Co compliant — exceeds NBN-DES-STD-0011 guidelines for wall-mounted network cabinets.
- OptiComm approved — verified compatible with OptiComm-supplied network equipment and fibre terminations.
- Pre-wired for fast installation — includes double power outlet (GPO) and 6-gang CAT6 outlet ready to connect.
- Steel construction — 1.2mm sheet-metal enclosure with folded, fully welded seams and 2mm aluminium gear tray.
- Cable routing flexibility — 7 x 32mm knockouts to top and rear for cable entry; blank plate allows future expansion.
- Padlockable door — two chrome turn-knob locks for security on multi-tenant or commercial sites.
- Ventilation ports — upper and lower door vents prevent moisture and heat buildup inside the cabinet.
- WiFi neutral — independently tested by AusTest Laboratories; no RF interference with wireless signals.
- Compact footprint — 700mm tall, 400mm wide, 150mm deep; fits standard wall spaces without protruding awkwardly.
- Mounting options — surface mount or recess into wall cavity depending on site conditions and finish preferences.
Where to use
- NBN connection points — primary enclosure at the network termination point in homes and small businesses across Australia.
- Multi-unit properties — vertical stacking and secure locking make this cabinet suitable for apartment blocks and unit complexes.
- Commercial offsites — compact design fits small retail and office applications with tight wall space or shallow cavities.
- Retrofit installations — works with both new builds and existing homes undergoing NBN connection upgrades.
- Equipment consolidation — houses modem, router, power supply, and CAT6 patch panel in one enclosure.
- Cable management — organises incoming fibre, copper telephone lines, and data cabling to prevent tangling and damage.
Not suitable for outdoor installation or damp environments. This cabinet is designed for internal walls only. Moisture ingress will corrode the steel enclosure and damage network equipment. For outdoor or high-humidity applications, consult an installer about weatherproofed alternatives.
