Learn more by watching our Clipsal 1041TA-BB | Solis T Series 1 Gang Switch 20A/16AX | Brushed Brass video.
Additional related video.

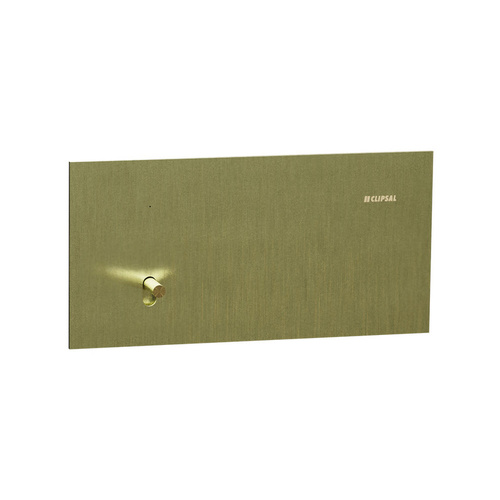

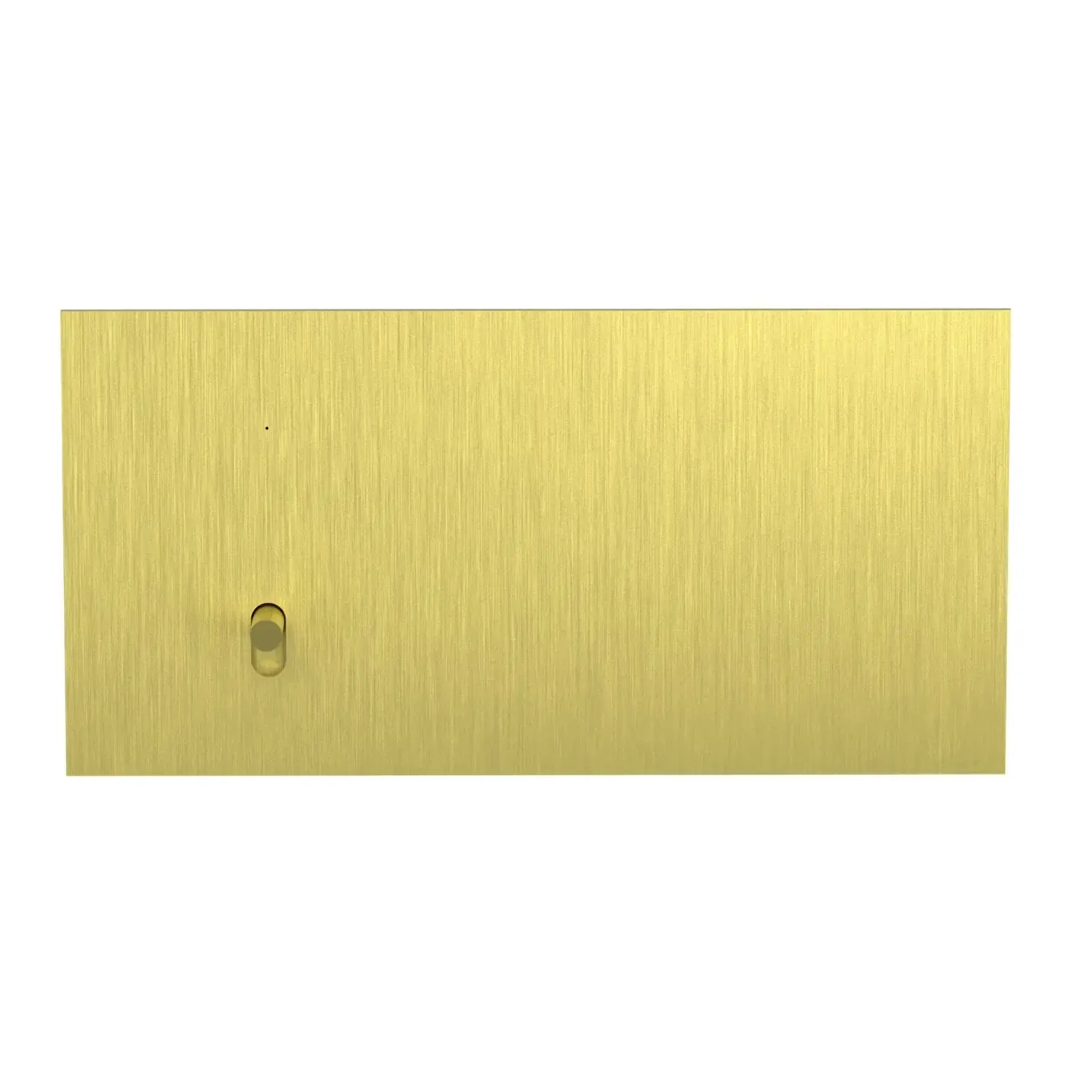

The Clipsal 1041TA-BB Solis T Series 1 Gang Switch in Brushed Brass combines elegance with functionality, making it perfect for modern homes, offices, and hotels. Crafted with premium aluminium, this switch offers both a sophisticated look and long-lasting durability. Designed for horizontal flush mounting, the switch has a sleek, minimalist appearance that blends seamlessly into any setting.
This single toggle switch is designed to control one circuit and can be operated from one or two locations. It supports a rated current of 20A/16AX and operates at 230/240VAC, ensuring dependable performance across various electrical setups. It features screw terminals for secure connections, minimising the risk of loose wires over time.
Q: What is the rated current and voltage for this switch?
A: The switch is rated for 20A/16AX at 230/240VAC, 50Hz.
Q: What type of control does this switch offer?
A: It is a toggle switch designed for controlling a single circuit.
Q: What material is used for the construction of this switch?
A: The switch is made from high-quality aluminium with a metallic finish.
Q: Is this switch suitable for vertical installation?
A: No, this switch is designed for horizontal installation only.
(1041TA-BB)
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 10 Year Mechanical and 7 Year Electrical
Commercial Use: 10 Year Mechanical and 7 Year Electrical
Warranty Method: Clipsal in home warranty
Specification | Details |
---|---|
Range | Clipsal Solis T Series |
Product brand | Clipsal |
Product or component type | Switch |
Assembly Type | Complete product |
Outlet standard deviation | Australian/New Zealand |
Colour tint | Brushed brass |
Number of gangs | 1 gang |
[Ue] rated operational voltage | 230/240 V |
Network type | AC |
Network frequency | 50 Hz |
Rated current | 20 A/16 AX |
Control type | Toggle switch |
Connections - terminals | Screw terminals |
Installation Type | Flush |
Number Of Switches | 1 |
Material | Aluminium |
Installation direction | Horizontal |
Surface treatment | Metallic |
Load type | LED lamp 0...250 W 20 A/16 AX |
Terminals Capacity | 4 x 1.5...3 x 2.5 mm² |
Screwdriver shape | Philips No 2 Square drive no 1 (SQ1) |
Wire stripping length | 10 mm |
Mounting Type | Screw |
Cover Thickness | 3.6 mm |
Mounting Centers | 84 mm |
Cut-out dimensions | 93 x 50 mm |
Product certifications | RCM |
Surface finish | Brass finish |
Surface treatment | Anodised |
Height | 74 mm |
Width | 148 mm |
Depth | 56 mm |
Embedding depth | 41 mm |
Motor M-rating | AS3133 M80 |
Switch function | 1-pole 1/2-way |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Clipsal by Schneider Electric |
SKU | 1041TA-BB |
Model # | 1041TA-BB |
Barcode # | 3606487834779 |
TYPE | VALUE |
---|---|
Type | Switch |
Brand | Clipsal |
Range | Clipsal Solis T Series |
Colour | Brushed Brass |
Switch Fucntion | 1 Pole 1/2-Way |
Motor M-rating | M80 AS3133 |
Cut-out Dimensions | 93 x 50mm |
Rated Operational Voltage | 230/240 V |
Installtion Type | Flush |
Assembly Type | Complete Product |
Control Type | Toggle Switch |
Rated Current | 20 A/16 AX |
Height | 74mm |
Number of Gangs | 1 |
Width | 148mm |
Depth | 56mm |
Load type | LEDi lamp 0...250 W 20 A/16 AX |
Material | Aluminium |
