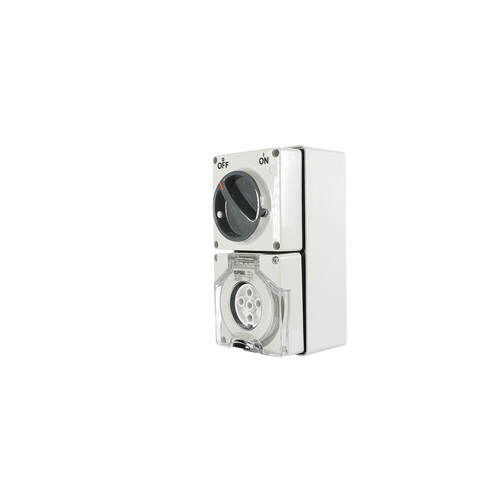

Clipsal 56C510GY | 5 Pin 10Amp 500V Switched Socket Outlet IP66 | 56 Series
Learn more by watching our Clipsal 56C510GY | 5 Pin 10Amp 500V Switched Socket Outlet IP66 | 56 Series video.
Description:
When it comes to electrical outlets, you deserve nothing but the best in terms of safety, reliability, and performance. The Clipsal 56C510GY 5 Pin 10Amp 500V Switched Socket Outlet, a proud member of the renowned 56 Series, is here to provide you with exactly that. Discover why this outlet is the perfect choice for your home:
Key Benefits:
Built for Durability: Crafted by Clipsal, a name synonymous with quality, this switched socket outlet is designed for longevity. Its robust construction ensures it can withstand the test of time and challenging environments.
Powerful Performance: Rated at 500V and 10A, this outlet delivers reliable and consistent performance, meeting your electrical needs with ease.
IP66 Weatherproof Rating: Don't let adverse weather conditions limit your electrical access. The IP66 rating guarantees protection against dust and high-pressure water jets, making it ideal for outdoor and industrial applications.
Safety at Its Core: With five round pins and one pole (1P), this outlet adheres to the highest safety standards, providing you with peace of mind.
FAQ:
Q: Can I use this outlet outdoors or in industrial settings?
A: Absolutely! The Clipsal 56C510GY boasts an IP66 weatherproof rating, making it suitable for outdoor and industrial use. It's designed to withstand dust and high-pressure water jets.
Q: Is installation straightforward?
A: Yes, it's surface-mounted for ease of installation, ensuring a hassle-free setup.
Q: What are the voltage and current ratings for this outlet?
A: The Clipsal 56C510GY is rated at 500V and 10A, guaranteeing reliable and robust performance.
Q: Does it meet stringent safety standards?
A: Yes, it adheres to the necessary safety standards, providing a secure and compliant electrical solution.
Q: Is it built to last in challenging conditions?
A: Absolutely! This outlet is crafted from high-quality PVC material, ensuring exceptional durability even in demanding environments.
Elevate your electrical setup with the Clipsal 56C510GY 5 Pin 10Amp 500V Switched Socket Outlet from the prestigious 56 Series. Experience outstanding performance, exceptional longevity, and the peace of mind that comes with uncompromising safety standards. Power your space with confidence—choose Clipsal.
(56C510GY)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
| Design | |
| Range of product | Series 56 |
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | Socket-outlet |
| Device application | Power supply |
| Market segment | Utility, Small commercial, Industry |
| Sustainable offer status | Green Premium product |
| Physical | |
| Number of poles | 5 |
| Number of power socket outlets | 1 protective cover |
| In rated current | 10 A |
| Rated operational voltage | 500 V AC 50 Hz |
| Protection type | Without protection |
| Device mounting | Surface |
| Connections - terminals | Screw terminals cable(s) 1.5-6 mm² |
| Depth | 108 mm |
| Width | 101 mm |
| Height | 204 mm |
| Standards | AS/NZS 3123, AS/NZS 3133 |
| Ambient air temperature for operation | -25...75 °C |
| IP degree of protection | IP66 conforming to AS 60529 |
| REACh Regulation | Reference contains Substances of Very High Concern above the threshold |
| EU RoHS Directive | Compliant |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | Product out of China RoHS scope. Substance declaration for your information |
| Material | |
| Material | Polycarbonate: cover |
| Contacts material | Pins: phosphor bronze |
| Others | |
| Package 1 Bare Product Quantity | 1 |
| Plug, socket category | Low voltage |
| Outlet standard deviation | Australian/New Zealand |
| Plug, socket, control station shape | Straight |
| Number of modules | 1 |
| Poles description | 3P + N + E |
| Electrical connection | Industrial connector |
| Targeted country | Australia |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.8 cm |
| Package 1 Width | 10.1 cm |
| Package 1 Length | 20.4 cm |
| Package 1 Weight | 1.132 kg |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | 56C510GY |
| Barcode # | 9311554198541 |
| Shipping Weight | 1.0400kg |
| Shipping Width | 0.205m |
| Shipping Height | 0.115m |
| Shipping Length | 0.105m |
| Shipping Cubic | 0.002475375m3 |
| TYPE | VALUE |
|---|---|
| Type | Industrial Outlets |
| Brand | Clipsal by Schneider Electric |
| Range | 56 Series |
| Colour | Grey |
