Clipsal by Schneider Electric | 40mm Heavy Duty Corrugated Conduit 25m | Electric Orange

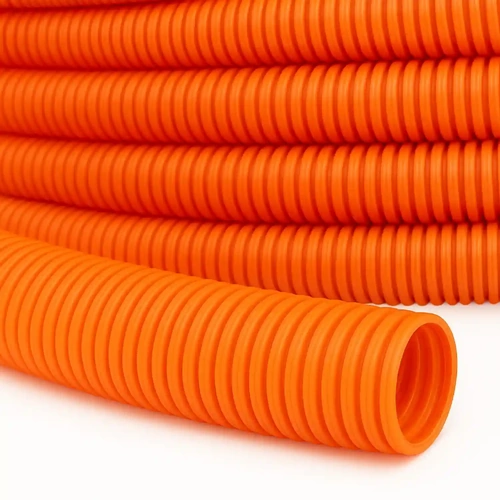

The Clipsal 9040CHD-EO is a heavy duty flexible PVC corrugated conduit measuring 40mm external and 30.2mm internal diameter, supplied on a 25 metre coil. The 9040CHD-EO is manufactured in electric orange, the colour code that identifies buried and concealed electrical services. It conforms to AS/NZS 61386 and carries an ambient operating range of minus 15 to 60 degrees C.
Cable run through a slab, a wall cavity, or a trench has to be protected from abrasion during the pour and identifiable to anyone excavating years later. Corrugated conduit in electric orange performs both functions, and the heavy duty wall withstands the mechanical loading of concrete placement and backfill that medium duty conduit does not.
The 25 metre coil length covers most domestic and light commercial runs without a joint, and every joint eliminated is a potential water ingress point removed. A 30.2mm internal diameter accepts substantial cable bundles or larger multicore, and the flexible corrugated wall negotiates bends and offsets without heat forming or elbow fittings.
Features
- Heavy duty classification — rated for the mechanical loading of concrete encasement and buried installation, above medium duty capability.
- 40mm external diameter — sizes to 40mm couplings, adaptors, and saddles across the standard conduit fittings range.
- 30.2mm internal diameter — the usable bore for cable, which governs how many conductors the run will accept under derating rules.
- 25 metre coil — covers most domestic and light commercial runs in a single length, reducing joints along the route.
- Electric orange colour — the identification colour for electrical services, so the run is recognisable when excavated or opened up later.
- Flexible corrugated wall — negotiates bends and offsets without heat forming, elbows, or sweep fittings.
- PVC construction — polyvinyl chloride, the standard material for buried and concealed electrical conduit in Australia.
- Conforms to AS/NZS 61386 — meets the Australian and New Zealand conduit systems standard for electrical installations.
- Minus 15 to 60 degrees C operating range — covers Australian ambient conditions in slab, wall, and buried applications.
- Fittings not included — couplings, adaptors, and saddles are ordered separately to suit the installation.
- Not rated above 60 degrees C — the PVC operating ceiling excludes installation adjacent to high-temperature plant or flues.
Where to use
- Slab and concrete encasement — the 9040CHD-EO heavy duty wall takes the loading of concrete placement without collapsing on the cable.
- Underground and trenched runs — buried services between buildings, to sheds, pumps, and external lighting, with orange marking the run as electrical.
- Wall and ceiling cavities — concealed cable protection through framing during rough-in, where the flexible wall follows the route.
- Sub-main and larger circuit runs — the 30.2mm bore suits multicore and heavier bundles that smaller conduit will not carry.
- Commercial and industrial rough-in — extended runs where the 25 metre coil reduces joints across the installation.
- Solar and outbuilding supply — protected runs from switchboard to array isolator or detached structure.
The 9040CHD-EO is rated to a maximum ambient of 60 degrees C and is not suitable adjacent to flues, high-temperature plant, or unventilated roof spaces exceeding that figure. Corrugated conduit is not a rigid conduit substitute where the installation calls for a self-supporting run. Fittings are not supplied, so couplings, adaptors, and saddles are ordered separately.
