Clipsal MX9B113 | MAX9 MAXBAR 1P+N Comb Busbar 13 Module | 100A Top Feed

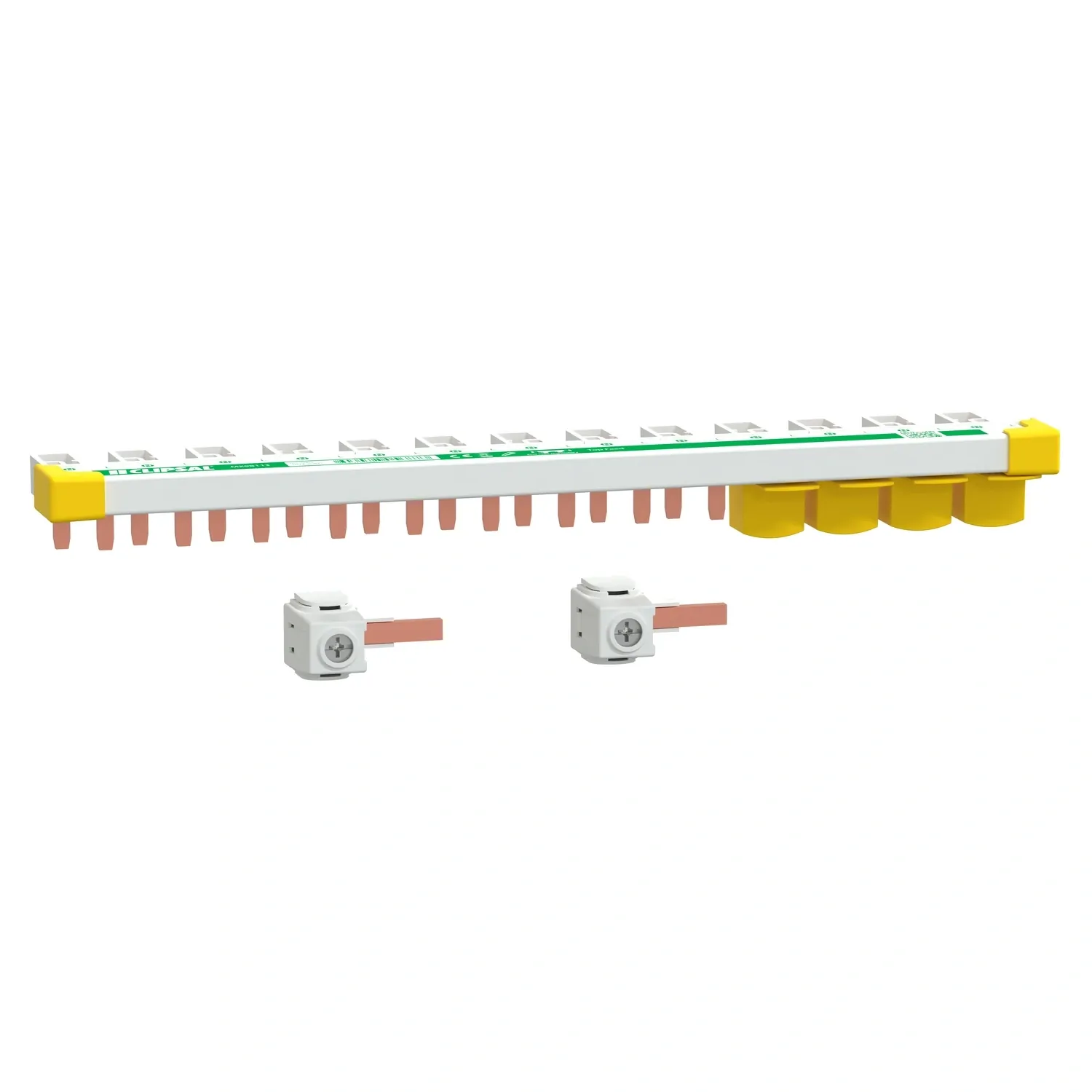

The Clipsal MX9B113 is a MAX9 MAXBAR top feed comb busbar rated 100A, configured 1P+N across 13 modules. It distributes active and neutral from the main switch to a row of compatible Clipsal MAX9 RCBOs and AFDDs. The MX9B113 belongs to the MAXBAR range and ships as a complete pack with connectors, teeth cover, and end caps.
Wiring a consumer unit of individual RCBOs by hand means cutting, stripping, and terminating separate active and neutral tails at every device. That point-to-point installation consumes labour on site and produces a congested board that complicates later fault finding. The MX9B113 eliminates those tails with a top feed comb busbar that distributes active and neutral across all 13 modules from a single supply connection at the main switch.
For the contractor, the MAXBAR system converts board fit-off into a faster, cleaner installation. The busbar collects the active feed once and energises every protective device, so no sub-circuit tails run between modules. Clipsal rates the configuration at up to 15 times faster than conventional cable feeding, and the comb is cuttable to length to match shorter rows. A clean, organised board reads clearly at the next service call and reflects the standard of the install.
Features
- 1P+N top feed design — distributes active and neutral along a single row of MAX9 devices from the main switch.
- 13 module length — feeds up to 13 single-module positions across one switchboard row.
- 100A rated — the MX9B113 carries up to 100A total across the row, suiting standard domestic boards.
- No sub-circuit tails — the comb feeds each RCBO or AFDD directly, removing the cable loops between devices.
- MAX9 RCBO and AFDD compatible — feeds compatible Clipsal MAX9 RCBOs and AFDDs along the row without separate cable connections.
- Horizontal and cuttable — the comb mounts across the row and trims to length for boards shorter than 13 modules.
- Up to 15 times faster — Clipsal rates MAXBAR feeding at up to 15 times quicker than running cable to each device.
- Complete pack supplied — the MX9B113 ships with the busbar, connectors, teeth cover, and end caps in one pack.
- Insulated teeth cover — the supplied cover shrouds unused teeth and exposed conductor along the comb.
- White electric finish — moulded in white electric (RAL9003) to sit cleanly within the MAX9 enclosure.
- Residential MAX9 system only — designed for the Clipsal MAX9 board system, not for mixing with other DIN device brands.
Where to use
- New residential boards — populate a single-phase MAX9 row with RCBOs and feed them from the MX9B113 in one pass.
- Switchboard upgrades — replace a tangle of sub-circuit tails with one comb when retrofitting an older board to MAX9.
- RCBO-per-circuit boards — suits installs running individual RCBO protection on every final sub-circuit.
- Multi-row MAX9 enclosures — run one MX9B113 per single-phase row where the board needs up to 13 modules fed.
- Fast retrofit fit-off — cut the comb to length and feed a part-filled row without running tails between devices.
- Single-phase domestic supply — built for 1P+N residential boards drawing within the 100A busbar rating.
The MX9B113 is a 1P+N busbar and is not suited to three-phase rows. It is built for the Clipsal MAX9 system and should not be used to feed other brands of DIN-mounted device. Total connected load across the row must stay within the 100A rating.
