        Learn more by watching our Clipsal MX9MN106 | MAX9 6A MCB 6kA 1P+N | C Curve video.

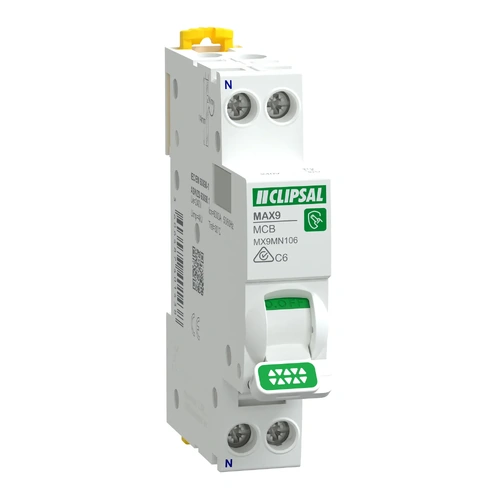

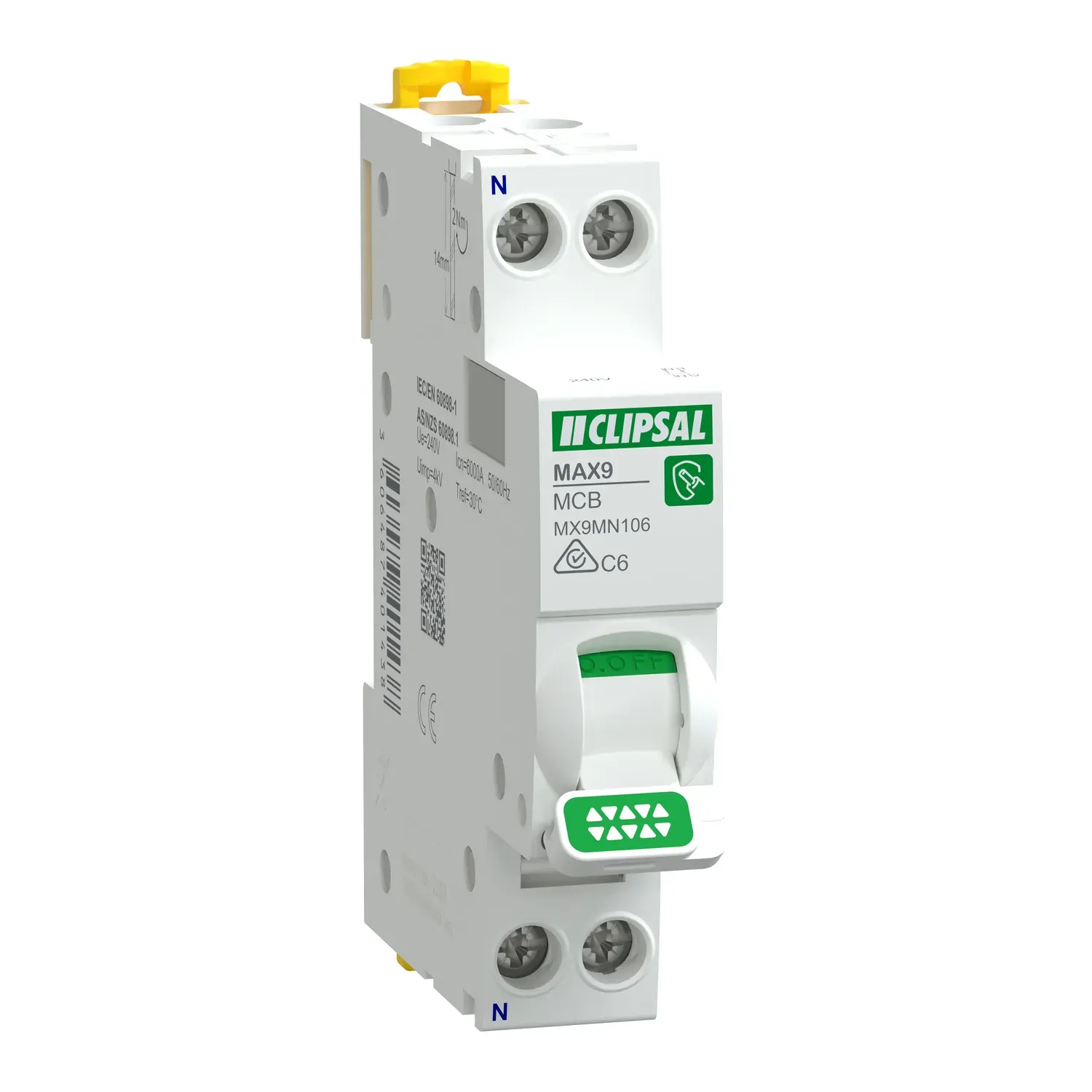

        Clipsal MX9MN106 | MAX9 6A MCB 6kA 1P+N | C Curve

        The Clipsal MX9MN106 is a 6A miniature circuit breaker (MCB) with a 1P+N configuration, designed for safe and efficient circuit protection in residential and commercial installations. Operating at 240V AC (50/60Hz), it features a C curve tripping profile with magnetic action between 5 to 10 times rated current, making it ideal for lighting and general power circuits.

        With a 6kA breaking capacity, the MX9MN106 meets AS/NZS 60898 standards and includes a contact position indicator, toggle control, and ON/OFF local signalling. Rated for 20,000 electrical and mechanical cycles, it has a compact 18mm wide body that fits neatly into MAX9 boards and supports MAXBAR connection for fast, efficient installation.

        Clipsal MX9MN106 Features

        • 6A Rated Current, C Curve: Ideal for lighting and low-load power circuits.
        • 1P+N Configuration: Provides active protection with neutral switching.
        • 6kA Breaking Capacity: Tested to AS/NZS 60898 for fault clearance.
        • 18mm Module Width: Saves space in compact switchboards.
        • MAXBAR Ready: Supports simplified busbar installations in MAX9 systems.
        • 20,000 Cycle Rating: Long mechanical and electrical lifespan.

        Where to use this Clipsal MX9MN106

        • Residential lighting circuits requiring safe and space-efficient protection.
        • Low-load commercial power circuits using MAX9 distribution boards.
        • Installations needing MAXBAR compatibility for simplified wiring.

        (MX9MN106)

        Clipsal MAX9 MX9MN circuit breakers are used to protect electrical circuits from overloads and short circuits in residential and commercial switchboards.

        The range is available in sizes from 6 amp through to 40 amp, covering lighting and general power circuit requirements.

        1P+N means the breaker protects the active conductor and switches the neutral at the same time for safer isolation.

        A C Curve breaker allows for moderate inrush current, making it suitable for most household and light commercial loads.

        Yes. They are suitable for light commercial applications using MAX9 distribution boards.

        Yes. Sparky Direct stocks Clipsal MAX9 MX9MN circuit breakers with fast dispatch and fast Australia-wide delivery.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        Specification Details
        SKU MX9MN106
        Type Miniature Circuit Breaker (MCB)
        Poles Description 1P + N
        Rated Current 6 A at 30 °C
        Voltage Rating 240 V AC, 50/60 Hz
        Curve Type C Curve
        Breaking Capacity 6000 A at 240 V AC
        Impulse Withstand Voltage 4 kV
        Insulation Voltage 400 V
        Mounting DIN rail
        Dimensions (H x W x D) 85 mm x 18 mm x 71 mm
        Connection Capacity 1–10 mm² flexible, 1–16 mm² rigid
        Tightening Torque 2 N·m
        IP Rating IP20

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9MN106
        Model # MX9MN106
        Barcode # 3606487401438
        Package Weight 0.115kg
        Package Width 0.018m
        Package Height 0.074m
        Package Length 0.094m
        View Datasheet
        View Brochure
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Rated Current (A) 6A
        Height (mm) 85mm
        Width (mm) 18mm
        Depth (mm) 71mm
        Voltage (V) 240Vac
        Breaking Capacity 6kA
