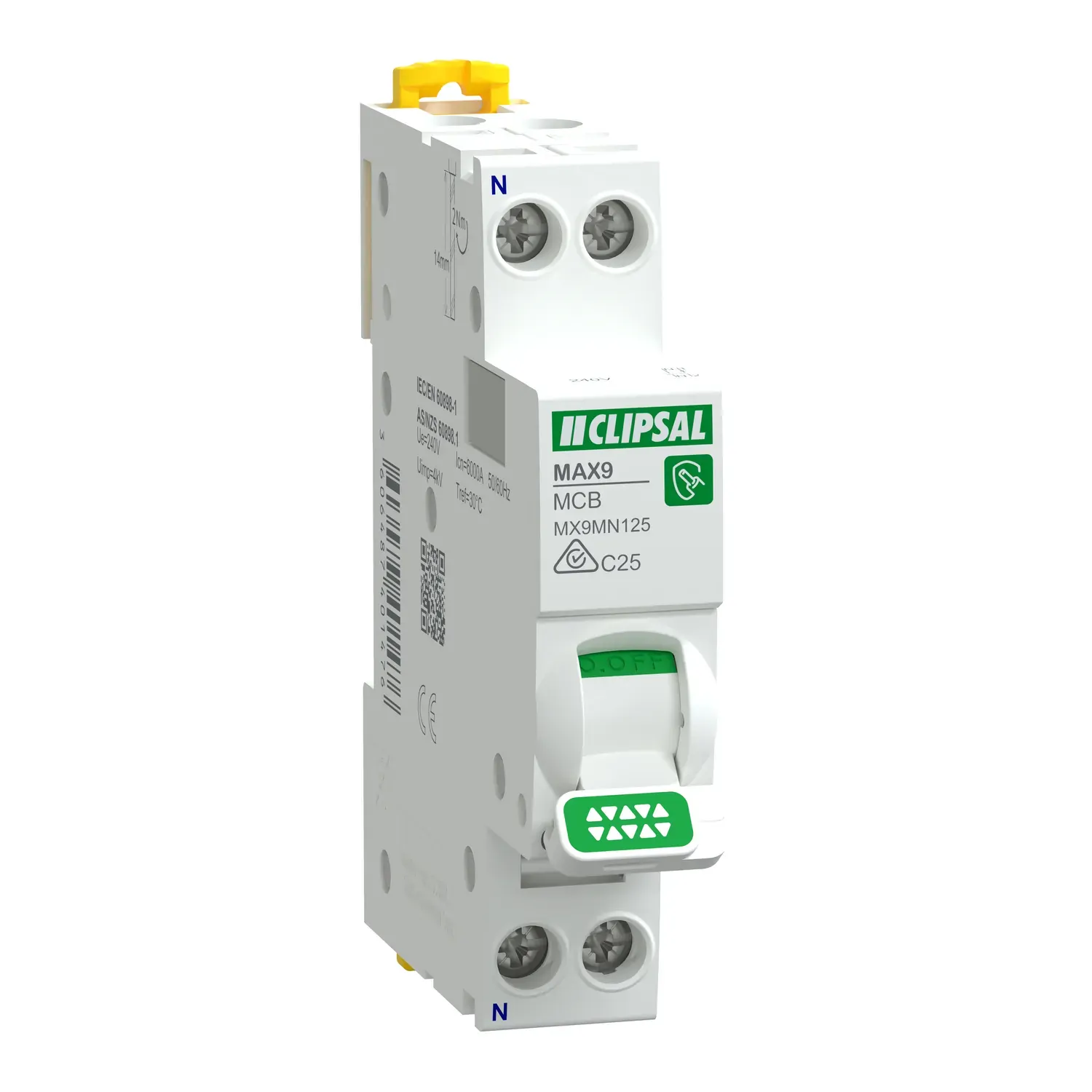

The Clipsal MX9MN125 is a 25A miniature circuit breaker (MCB) with a 1P+N configuration, engineered for safe AC circuit protection in residential and light commercial environments. Operating at 240V AC (50/60Hz) with a C curve tripping profile between 5 to 10 times rated current, it is ideal for general-purpose and moderately inductive loads.
It delivers a 6kA breaking capacity and complies with AS/NZS 60898. A clear ON/OFF indicator, toggle switch and contact position display make operation and maintenance straightforward. The breaker is rated for 20,000 mechanical and electrical cycles and offers IP20 internal protection.
Its compact 18mm body fits neatly into MAX9 distribution boards. Tunnel-type terminals accept 1 to 10mm² flexible and 1 to 16mm² rigid cables. Fully compatible with the MAXBAR system for efficient installation.
(MX9MN125)
Clipsal MAX9 MX9MN circuit breakers are used to protect electrical circuits from overloads and short circuits in residential and commercial switchboards.
The range is available in sizes from 6 amp through to 40 amp, covering lighting and general power circuit requirements.
1P+N means the breaker protects the active conductor and switches the neutral at the same time for safer isolation.
A C Curve breaker allows for moderate inrush current, making it suitable for most household and light commercial loads.
Yes. They are suitable for light commercial applications using MAX9 distribution boards.
Yes. Sparky Direct stocks Clipsal MAX9 MX9MN circuit breakers with fast dispatch and fast Australia-wide delivery.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 7 Year
Commercial Use: 7 Year
Warranty Method: Clipsal in home warranty
| Specification | Details |
|---|---|
| SKU | MX9MN125 |
| Type | Miniature Circuit Breaker (MCB) |
| Poles Description | 1P + N |
| Rated Current | 25 A at 30 °C |
| Voltage Rating | 240 V AC, 50/60 Hz |
| Curve Type | C Curve |
| Breaking Capacity | 6000 A at 240 V AC |
| Impulse Withstand Voltage | 4 kV |
| Insulation Voltage | 400 V |
| Mounting | DIN rail |
| Dimensions (H x W x D) | 85 mm x 18 mm x 71 mm |
| Connection Capacity | 1–10 mm² flexible, 1–16 mm² rigid |
| Tightening Torque | 2 N·m |
| IP Rating | IP20 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | MX9MN125 |
| Model # | MX9MN125 |
| Barcode # | 3606487401476 |
| Package Weight | 0.115kg |
| Package Width | 0.018m |
| Package Height | 0.074m |
| Package Length | 0.094m |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Clipsal by Schneider Electric |
| Rated Current (A) | 25A |
| Height (mm) | 85mm |
| Width (mm) | 18mm |
| Depth (mm) | 71mm |
| Voltage (V) | 240Vac |
| Breaking Capacity | 6kA |
