Learn more by watching our CSG LS101V-L | GEO 1 Gang Slimline Switch 10AX | White video.

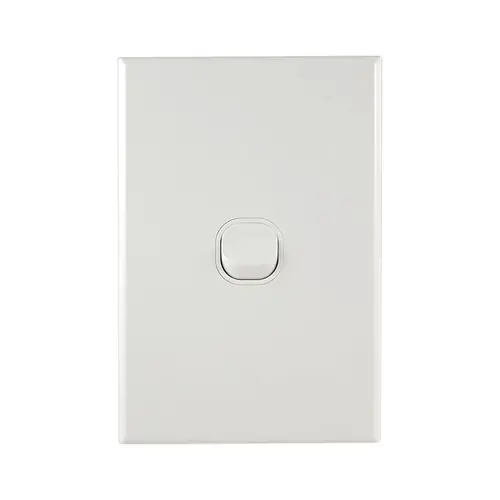

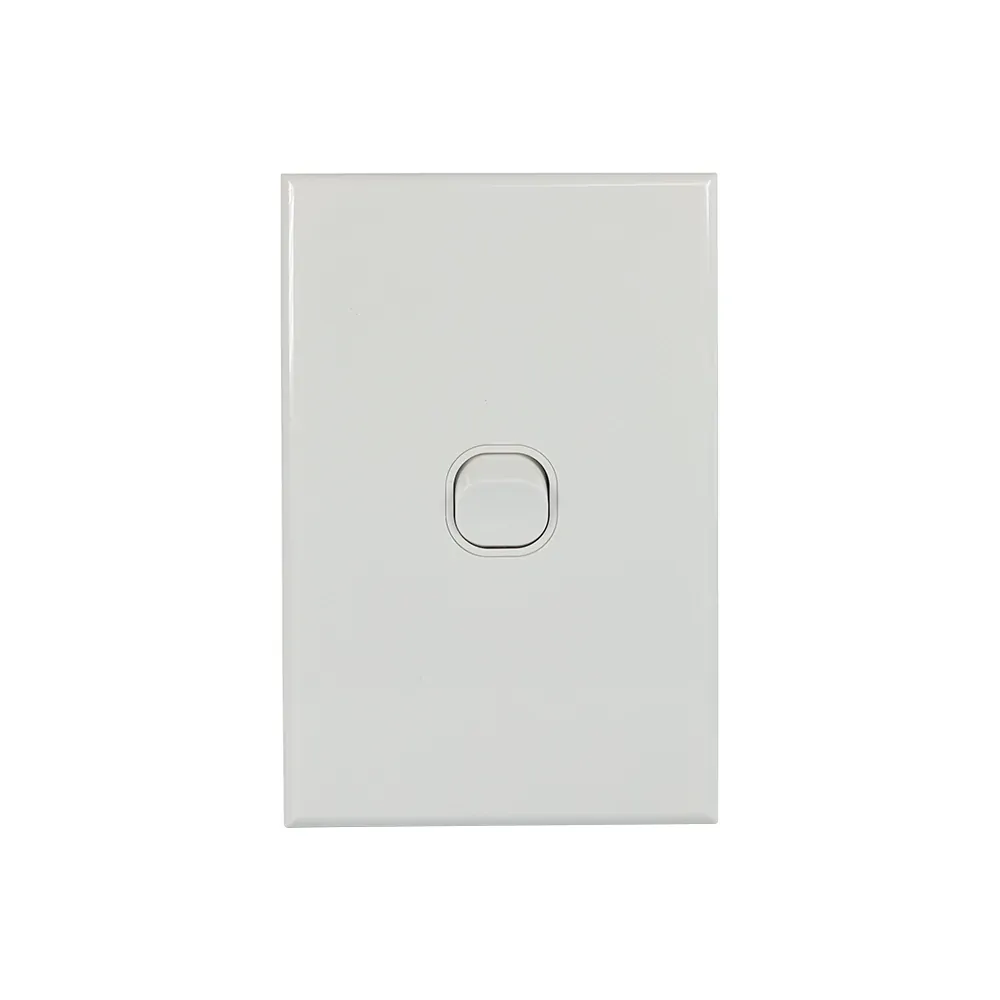

The Connected Switch Gear LS101V-L is a 1 gang slimline light switch rated 10AX at 250V AC, designed for two-way switching in domestic and commercial interiors. The LS101V-L measures just 6.5mm thick at the plate and is part of the Connected Switchgear GEO Series. It is manufactured from virgin polycarbonate and complies with AS/NZS 3100 and AS/NZS 3133.
Standard switch plates protrude from the wall surface and appear bulky against flush, contemporary finishes. The LS101V-L addresses this with a 6.5mm slimline profile that sits tight against the wall. Ageing switch plates also discolour as the plastic degrades, and the virgin polycarbonate construction resists that discolouration over time. Across renovation and new-build installations, a consistent geometric slimline plate keeps every switch position visually uniform throughout the job.
Licensed electricians install the LS101V-L onto standard plaster brackets and mounting blocks using its 76mm x 55mm cut-out, minimising installation time on multi-switch runs. The solid brass terminals and screws deliver a secure conductor termination, and composite silver nickel contacts resist arcing under repeated operation. The GEO Series spans 1 to 6 gang across three finishes, so a single plate style accommodates most domestic switch positions on a job.
The LS101V-L is not weatherproof and carries no IP rating, so it is not suited to outdoor walls or damp exposed areas. Keep it to dry interior locations away from splash zones, direct weather, and wash-down environments.
(LS101V-L)
The LS101V-L is SAA approved and complies with AS/NZS 3100 and AS/NZS 3133. It is rated 10AX at 250V AC for switching in Australian and New Zealand installations.
Installation must be carried out by a licensed electrician. The plate mounts to a standard plaster bracket or mounting block using a 76mm x 55mm cut-out, and cable lands into solid brass rear terminals.
The GEO plate is only 6.5mm thick, much slimmer than a standard switch plate, for a low-profile look on the wall. It uses composite silver nickel contacts to resist arcing and solid brass terminals for a firm cable clamp.
The LS101V-L can be wired as a one-way or two-way switch, so it can control a single light or switch the same light from two locations such as a hallway or stairwell.
The GEO plate is moulded from virgin polycarbonate, which resists yellowing and fading, so the white finish holds up better than lower-grade plastics through years of interior use.
The switch carries a manufacturer warranty of 1 year for domestic use and 1 year for commercial use, starting from the invoice date. Warranty is void if the product is not installed by a licensed electrician.
The LS101V-L has no IP rating and is not weatherproof, so it suits dry interior walls only. Do not use it in outdoor, damp, or splash-exposed locations.
The Connected Switch Gear LS101V-L is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Connected Switch Gear |
| SKU | LS101V-L |
| Barcode # | 9337286003144 |
| Package Weight | 0.063kg |
| TYPE | VALUE |
|---|---|
| Type | Switch |
| Brand | Connected Switch Gear |
| Range | GEO Series |
| Colour | White |
| Rated Current (A) | 10AX |
| Height (mm) | 115 |
| Width (mm) | 77 |
| Number of Switches / Gangs | 1 |
| Plate Thickness (mm) | 6.5 |
| Rated Voltage (V) | 250 |
