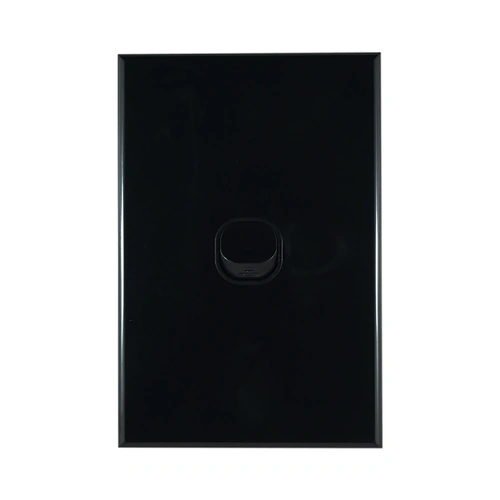

        CSG LS101VB-L | GEO 1 Gang Slimline Switch 10AX | Black

        The CSG LS101VB-L is a 1 gang vertical light switch from the GEO slimline series, offering a sleek 6.5mm low-profile design and modern black finish. Rated at 10AX, 250V AC, it's ideal for standard lighting use in both residential and commercial environments.

        Constructed with virgin polycarbonate for long-term colour retention, the switch also features silver nickel contacts and copper phosphorus bronze internals for reliable performance and reduced arcing. Solid brass terminals and screws ensure corrosion resistance and excellent conductivity.

        Fully compliant with AS/NZS 3100:2017+A1-3 and AS/NZS 3133:2013+A1-2, this unit supports two-way switching and is compatible with vertical or horizontal installations.

        CSG LS101VB-L Features

        • Slimline 6.5mm faceplate: Sleek, modern design for clean wall aesthetics.
        • 10AX 250V rating: Ideal for standard lighting circuits.
        • Durable switching components: Includes silver nickel and bronze for longevity.
        • Brass terminals and screws: Provides strong and corrosion-resistant connections.
        • Two-way switching support: Suitable for multi-point light control.
        • Certified to AS/NZS standards: Compliant with AS/NZS 3100 and AS/NZS 3133.

        LS101VB-L FAQ

        Q: Can this switch be used in a two-way circuit?
        A: Yes, it supports two-way switching for controlling lights from multiple locations.

        Q: What are the switch dimensions?
        A: The faceplate is 115mm x 77mm with a cut-out size of 76mm x 55mm.

        Q: Is this switch certified to Australian standards?
        A: Yes, it meets AS/NZS 3100:2017+A1-3 and AS/NZS 3133:2013+A1-2.

        (LS101VB-L)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 5 Year In-House Warranty
        Warranty Method: Connected Switch Gear In-House Warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Connected Switch Gear
        SKU LS101VB-L
        TYPE VALUE
        Type Switch
        Brand Connected Switch Gear
        Range GEO Series
        Colour Black
        Rated Current (A) 10AX
        Height (mm) 115
        Width (mm) 77
        Number of Switches / Gangs 1
        Plate Thickness (mm) 6.5
        Rated Voltage (V) 250
