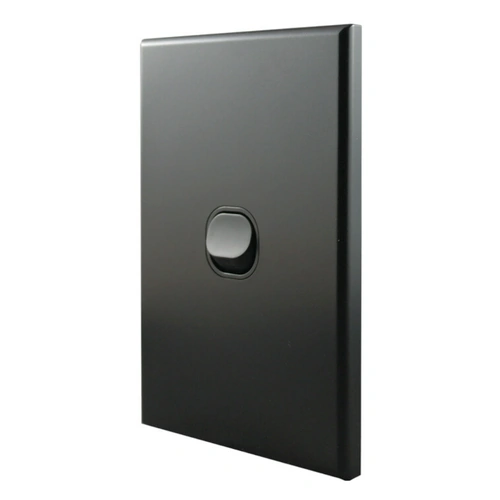

The Connected Switch Gear LS101VMB-L is a 1 gang vertical light switch rated 10AX at 250V AC, built on a 6.5mm slimline plate in a matte black finish. The LS101VMB-L uses a two-way switch mechanism, so it wires as either a single-point or a two-point control. It is SAA approved and complies with AS/NZS 3100:2017+A1-3 and AS/NZS 3133:2013+A1-2.
Matte black hardware is specified across kitchen, hallway and new-build schedules, but the finish generally arrives on a conventional plate that stands proud of the plasterboard. The consequence is a visible step alongside flush joinery and dark tapware. The LS101VMB-L carries a 6.5mm slimline polycarbonate plate in matte black. That profile keeps the mechanism tight against the wall surface. The plate measures 115mm x 77mm and conceals a 76mm x 55mm cut out.
Where the existing aperture corresponds, a plate replacement during repainting or refurbishment avoids plaster remediation entirely. The mechanism is rated 10AX and uses composite silver nickel contacts that resist arcing under repeated operation. Terminals and terminal screws are solid brass. The rear terminals take the conductors landing at the switch position. Connected Switch Gear backs the LS101VMB-L with a 5 year in-house warranty covering replacement product and installation cost.
The LS101VMB-L is an interior switch plate for dry wall positions. It carries no listed IP rating and is not weatherproof, so it should not be installed on outdoor walls, pool surrounds, or in damp exposed locations such as unventilated shower zones. The mechanism is rated 10AX at 250V AC, and loads above that rating sit outside its scope.
(LS101VMB-L)
The LS101VMB-L is SAA approved and complies with AS/NZS 3100:2017+A1-3 and AS/NZS 3133:2013+A1-2. It is rated 250V AC at 50/60Hz with a 10AX switch mechanism.
Installation must be carried out by a licensed electrician. The switch plate covers a 76mm x 55mm cut out on a 115mm x 77mm footprint, and conductors land on solid brass rear terminals. Warranty cover is void if the product is not installed by a licensed electrician.
The switch mechanism supports two-way switching, so one lighting point can be controlled from two positions such as either end of a hallway or stairwell. The same part wires as a one-way switch where only a single control position is needed.
The GEO Series plate is 6.5mm thick, against roughly 13mm on a standard-profile plate in the same brand's range. The plate is virgin polycarbonate in a geometric shape, available in white, black and matte black, with optional brushed brass and brushed aluminium cover plates.
The plate is moulded from virgin polycarbonate, which does not yellow or fade with age. Internal current-carrying parts are copper phosphorus bronze, and the switch contacts use a composite silver nickel coating to resist arcing through repeated operation.
Connected Switchgear provides a 5 year in-house warranty. If a fault develops within that five year period, Connected Group Australia covers the cost of replacing the product and its installation, subject to the manufacturer's terms and conditions.
The datasheet lists no IP rating for this switch, so it is an interior fitting. Do not install it on outdoor walls, in pool surrounds, or in damp exposed positions such as unventilated shower zones. Dry interior wall positions are the intended application.
The Connected Switch Gear LS101VMB-L is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
5 Year In-House Warranty
Warranty Method: Connected Switch Gear In-House Warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Connected Switch Gear |
| SKU | LS101VMB-L |
| Model # | LS101VMB-L |
| Barcode # | 9337286002475 |
| Package Weight | 0.057kg |
| TYPE | VALUE |
|---|---|
| Type | Switch |
| Brand | Connected Switch Gear |
| Range | GEO Series |
| Colour | Matte Black |
| Rated Current (A) | 10AX |
| Height (mm) | 115 |
| Width (mm) | 77 |
| Number of Switches / Gangs | 1 |
| Plate Thickness (mm) | 6.5 |
| Rated Voltage (V) | 250 |
